Reading DTC Using SUZUKI Scan Tool

  1. Turn ignition switch OFF.
  2. Connect SUZUKI scan tool to data link connector (DLC).

    Special tool

    (A): SUZUKI scan tool

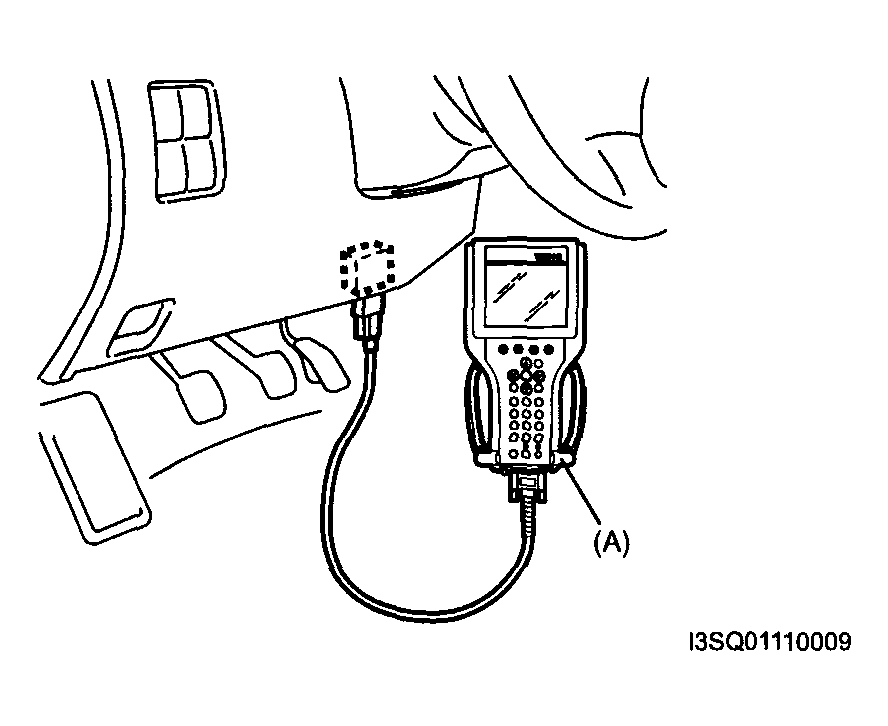

    Fig 1: Connecting SUZUKI Scan Tool To Data Link Connector
    G04099790Courtesy of SUZUKI OF AMERICA CORP.
  3. Read DTC according to instructions displayed on SUZUKI scan tool and write it down. Refer to SUZUKI scan tool operators manual for further details.
  4. After completing the check, turn ignition switch OFF and disconnect SUZUKI scan tool from data link connector (DLC).
