Valve Body Assembly Disassembly and Assembly: Assembly

  1. Place separator plate and new lower valve body gasket on lower valve body assembly and tighten installation of front upper valve body assembly with 2 bolts (1) temporarily.
    Fig 1: Installing Front Upper Valve Body Assembly With Bolts
    G04099684Courtesy of SUZUKI OF AMERICA CORP.
  2. Place new upper valve body gasket on lower valve body assembly.
    Fig 2: Placing New Upper Valve Body Gasket On Lower Valve Body Assembly
    G04099685Courtesy of SUZUKI OF AMERICA CORP.
  3. While holding upper valve body gasket and lower valve body assembly (1) together, install it on rear upper valve body assembly (2).
    Fig 3: Installing Lower Valve Body Assembly On Rear Upper Valve Body Assembly
    G04099686Courtesy of SUZUKI OF AMERICA CORP.
  4. Tighten 3 bolts indicated in the figure temporarily.
    Fig 4: Tightening Valve Body Bolts
    G04099687Courtesy of SUZUKI OF AMERICA CORP.
  5. Turn over lower valve body assembly and tighten 4 bolts indicated in the figure temporarily.
    Fig 5: Tightening Valve Body Bolts
    G04099688Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove 2 bolts tightened temporarily in Step 1).
    NOTE: Be careful not to damage gasket.
    Fig 6: Removing Bolts
    G04099689Courtesy of SUZUKI OF AMERICA CORP.
  7. Install lower valve body assembly (1) on front upper valve body (2).
    Fig 7: Installing Lower Valve Body Assembly On Front Upper Valve Body
    G04099690Courtesy of SUZUKI OF AMERICA CORP.
  8. Tighten 3 bolts indicated in the figure temporarily.
    Fig 8: Tightening Bolts
    G04099691Courtesy of SUZUKI OF AMERICA CORP.
  9. Turn over control valve lower body and tighten 5 bolts indicated in the figure temporarily.

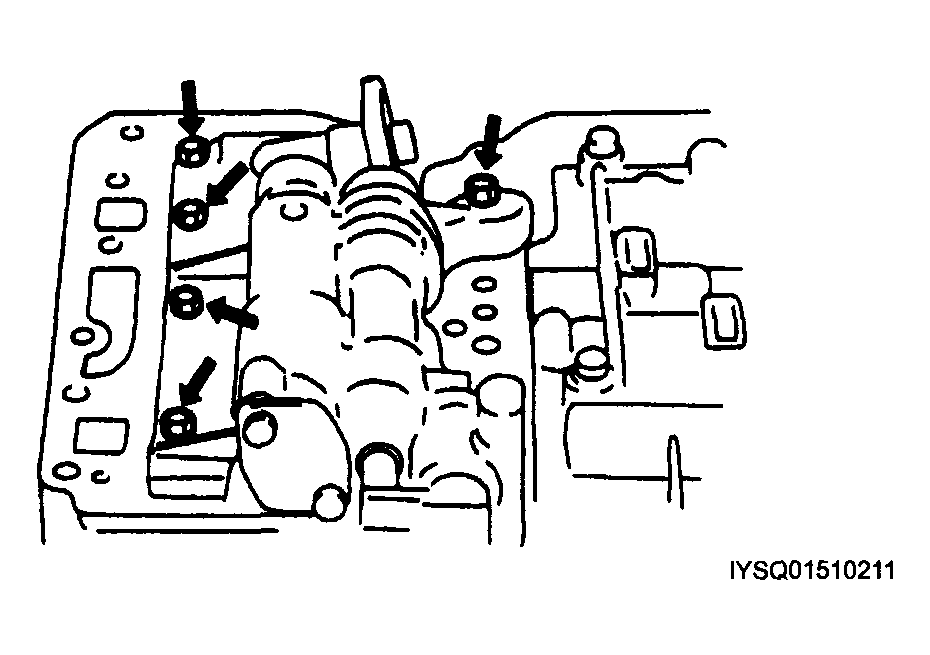

    Fig 9: Tightening Bolts
    G04099692Courtesy of SUZUKI OF AMERICA CORP.
  10. Tighten bolts on upper valve body side to specified torque.
    NOTE: Tighten bolts by a certain amount of torque evenly and repeat it several times till specified torque is attained.

    Tightening torque

    Upper valve body bolt: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

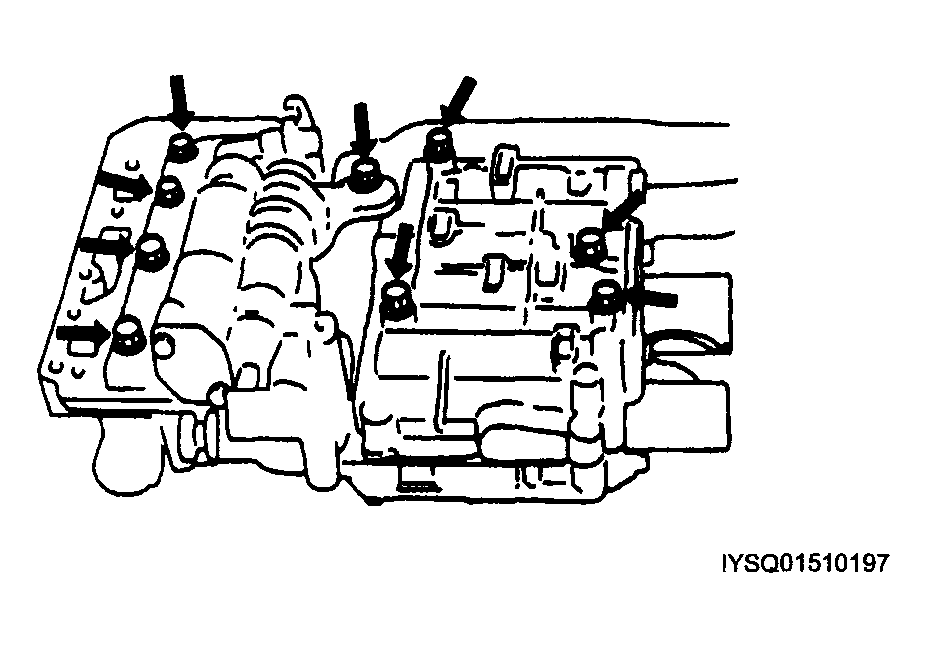

    Fig 10: Tightening Bolts Of Upper Valve Body Side
    G04099693Courtesy of SUZUKI OF AMERICA CORP.
  11. Tighten bolts on lower valve body inside to specified torque.
    NOTE: Tighten bolts by a certain amount of torque evenly and repeat it several times till specified torque is attained.

    Tightening torque

    Lower valve body bolt: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

    Fig 11: Tightening Bolts Of Lower Valve Body Inside
    G04099694Courtesy of SUZUKI OF AMERICA CORP.
  12. After installing manual valve (3), install detent spring (2) and plate (1) and tighten detent spring bolt to specified torque.

    Tightening torque

    Detent spring bolt: 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

Fig 12: Tightening Detent Spring Bolt
G04099695Courtesy of SUZUKI OF AMERICA CORP.
