Overdrive (Case Side) Components

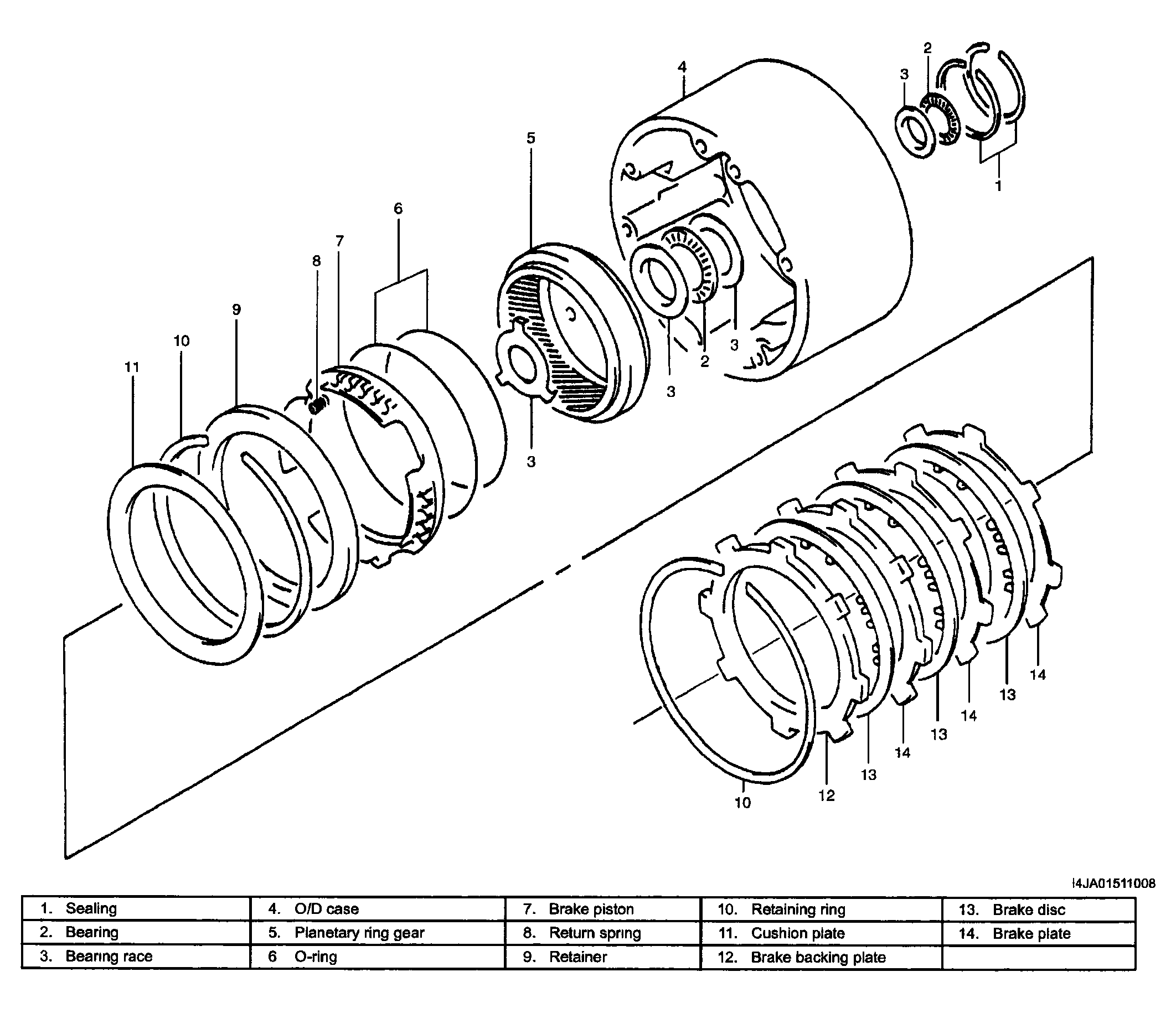

Fig 1: Identifying Overdrive (Case Side) Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
