Lower Valve Body Components

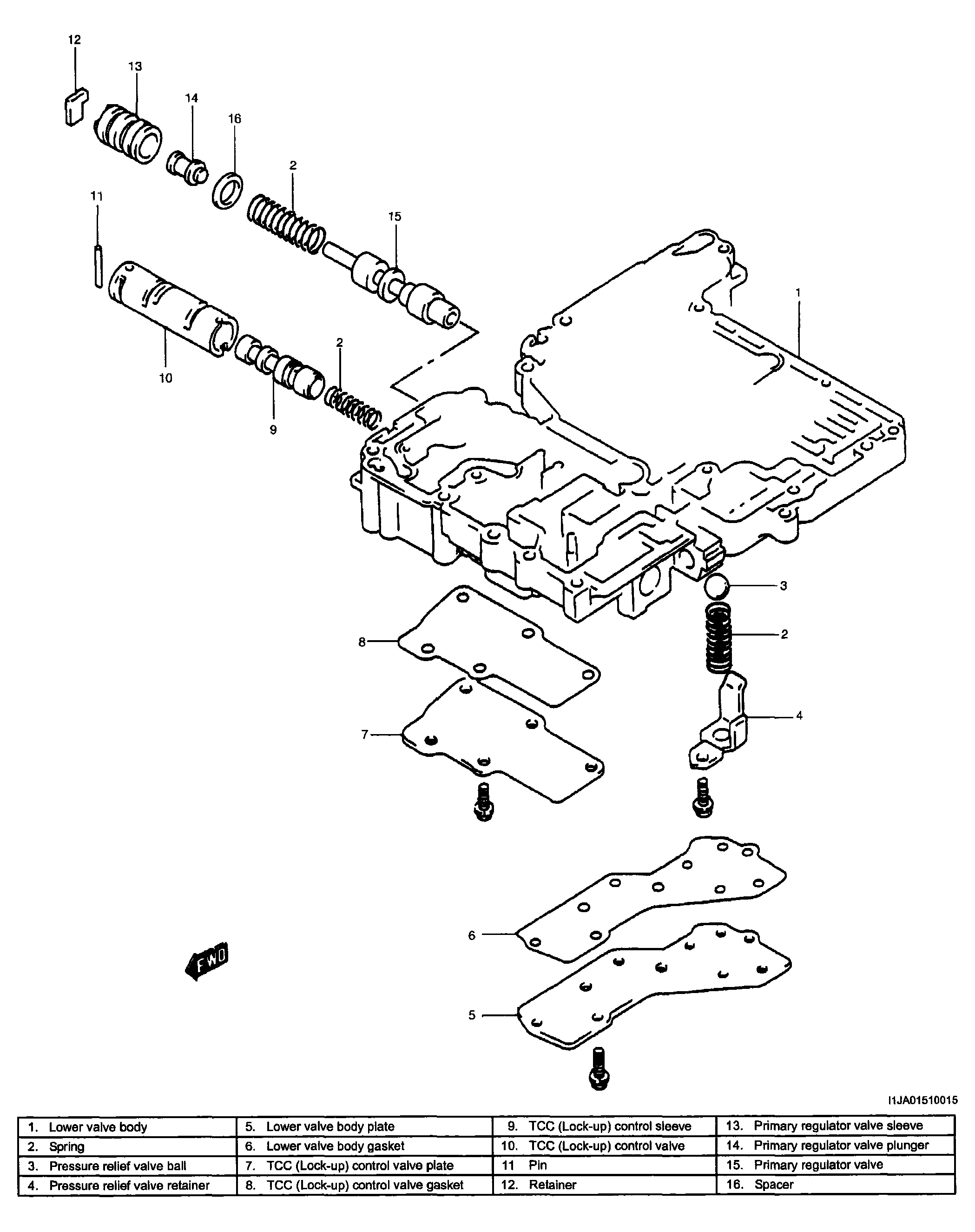

Fig 1: Identifying Lower Valve Body Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
