Front Upper Valve Body Components

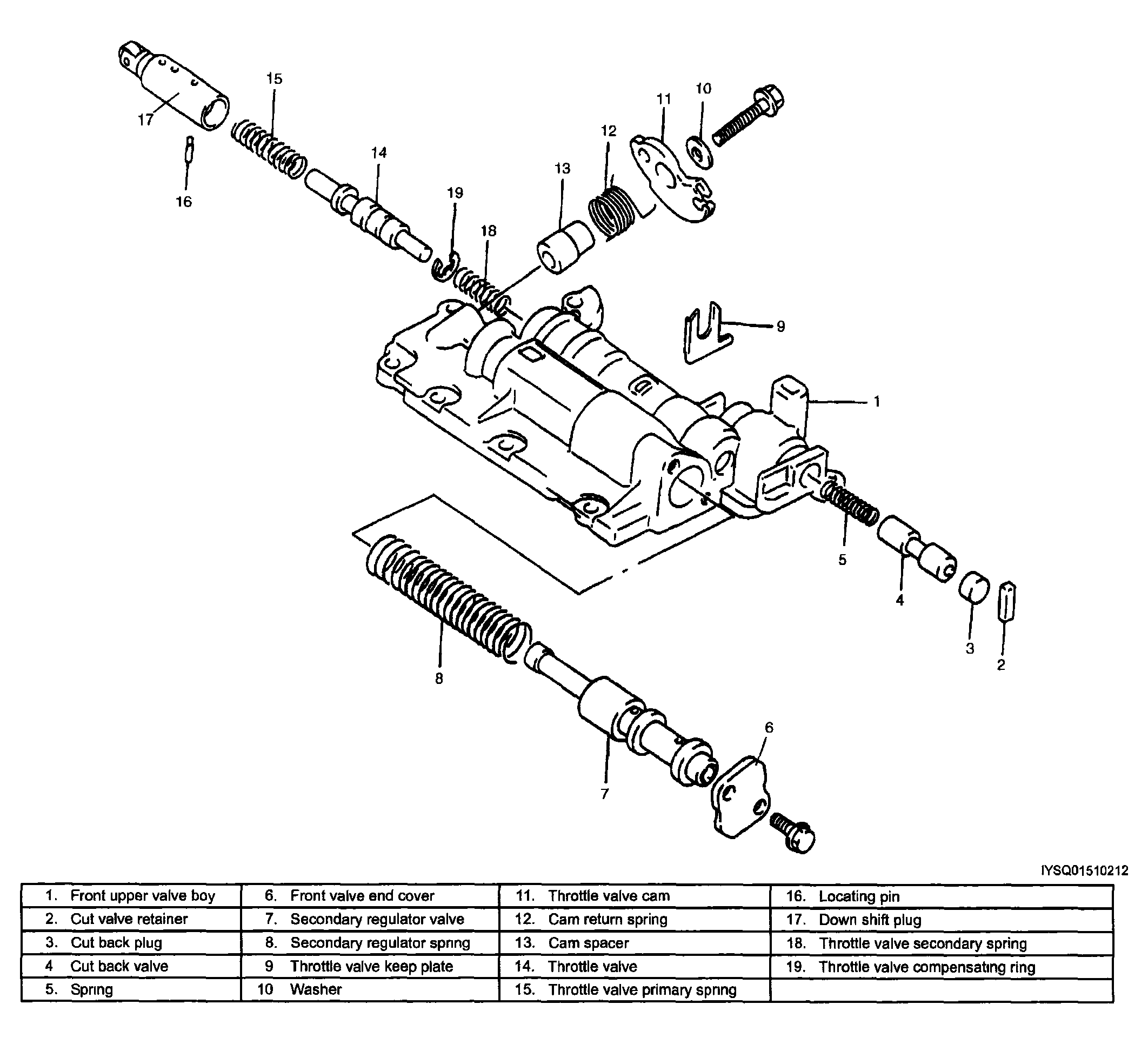

Fig 1: Identifying Front Upper Valve Body Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
