DTC P0722: Output Speed Sensor Circuit No Signal: Reference

Connect oscilloscope between "C51-1-10" (+) and "C51-1-9" (-) of PCM connector connected to PCM and check output speed sensor signal.

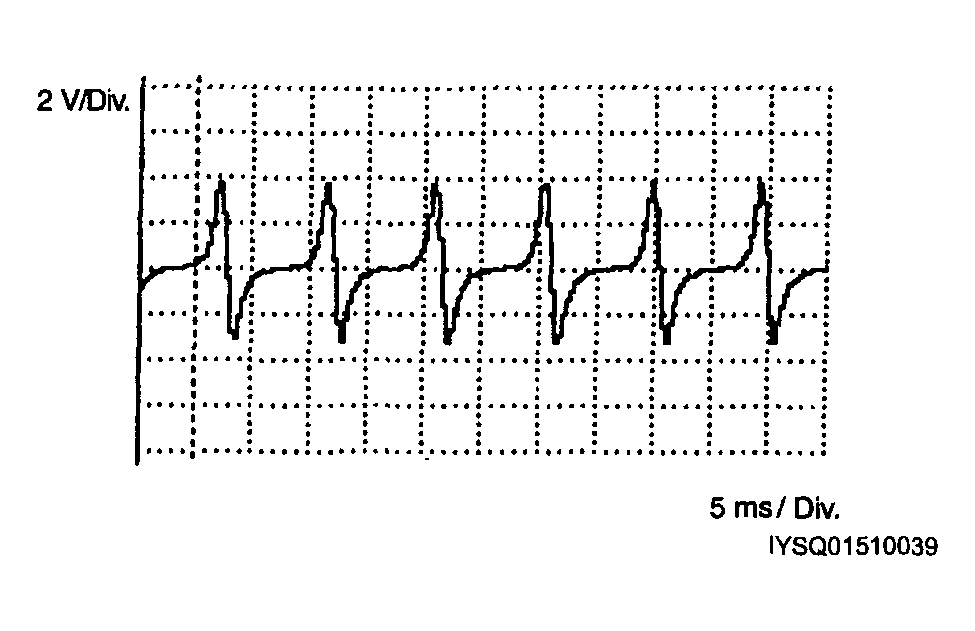

Fig 1: Oscilloscope Waveform Graph (Output Speed Sensor Signal)

Courtesy of SUZUKI OF AMERICA CORP.
