Lower Rod Removal and Installation: Removal

Hoist vehicle and remove rear wheel.
Support rear axle housing (1) by using floor jack (2).

Fig 1: Supporting Rear Axle Housing (1) By Using Floor Jack (2)
Courtesy of SUZUKI OF AMERICA CORP.

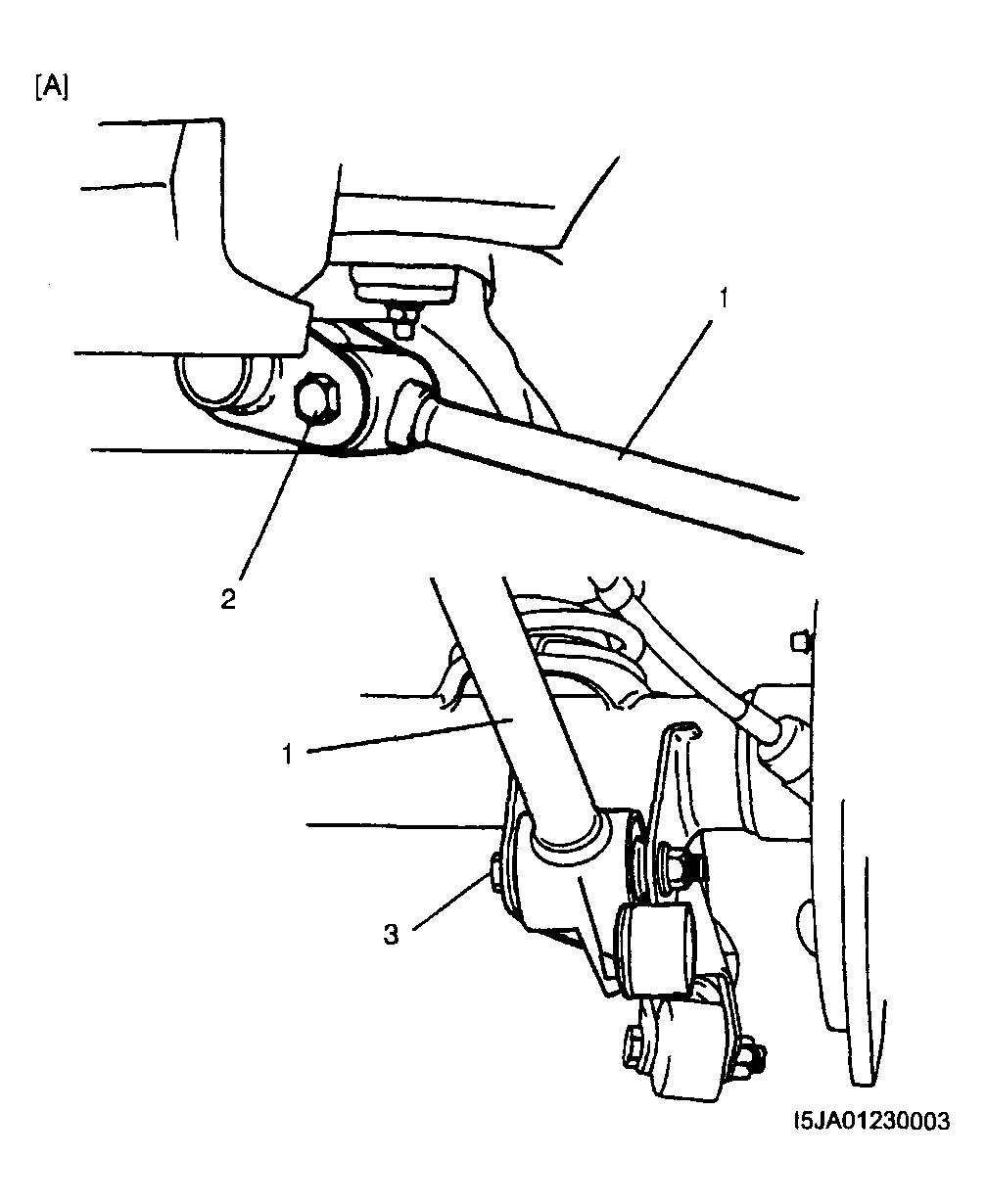

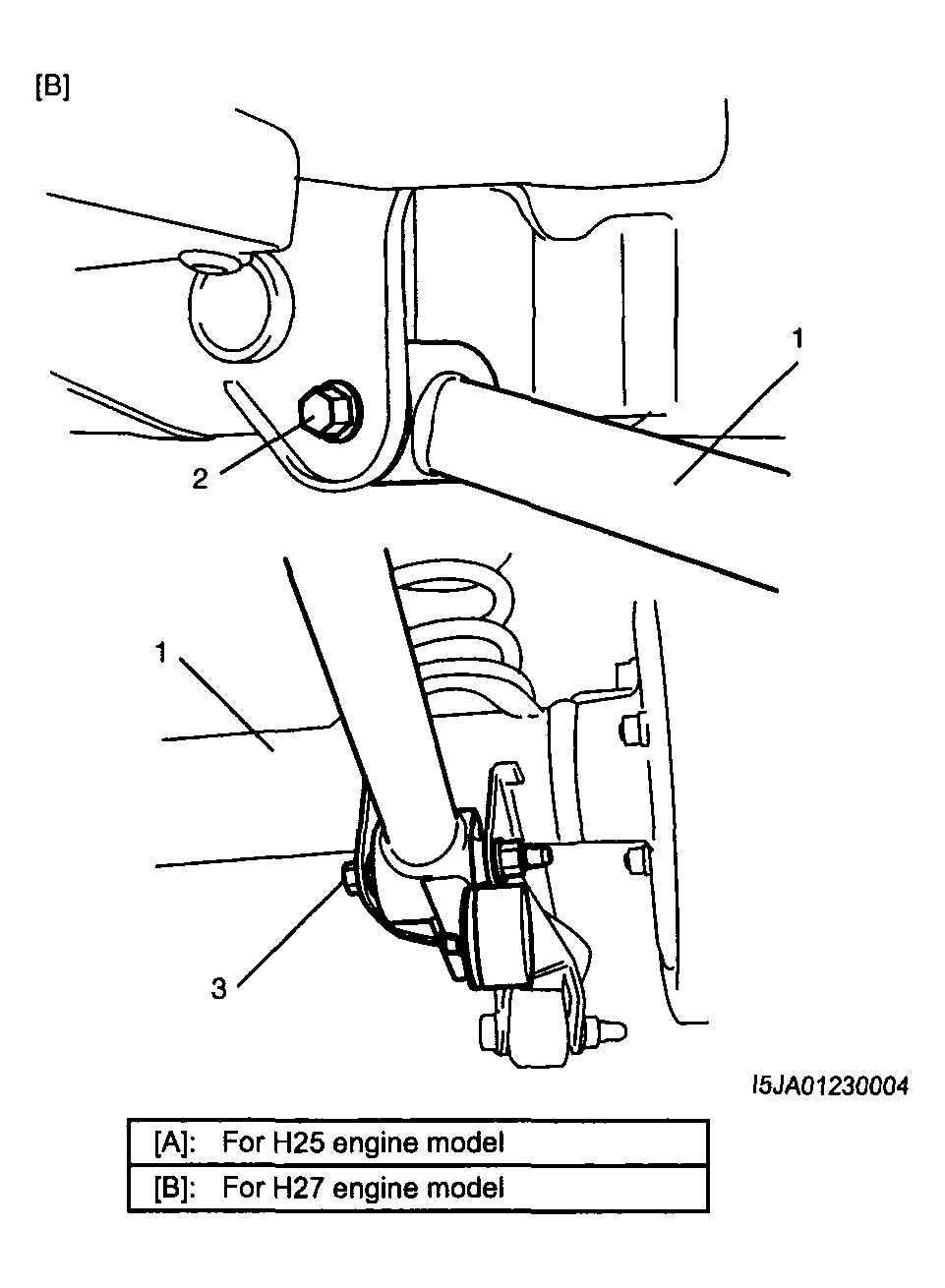

Remove lower rod (1) front mount bolt (2) and rear mount bolt (3).

Fig 2: Removing Lower Rod (1) Front Mount Bolt (2) And Rear Mount Bolt (3)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Installing Lower Rod (1) To Chassis Frame (4) And Axle Housing

Courtesy of SUZUKI OF AMERICA CORP.
