Lateral Rod Removal and Installation: Installation
- Install lateral rod to rear axle, and vehicle body.NOTE: For H27 engine model, use new lateral rod mounting bolts.
- Lower hoist.

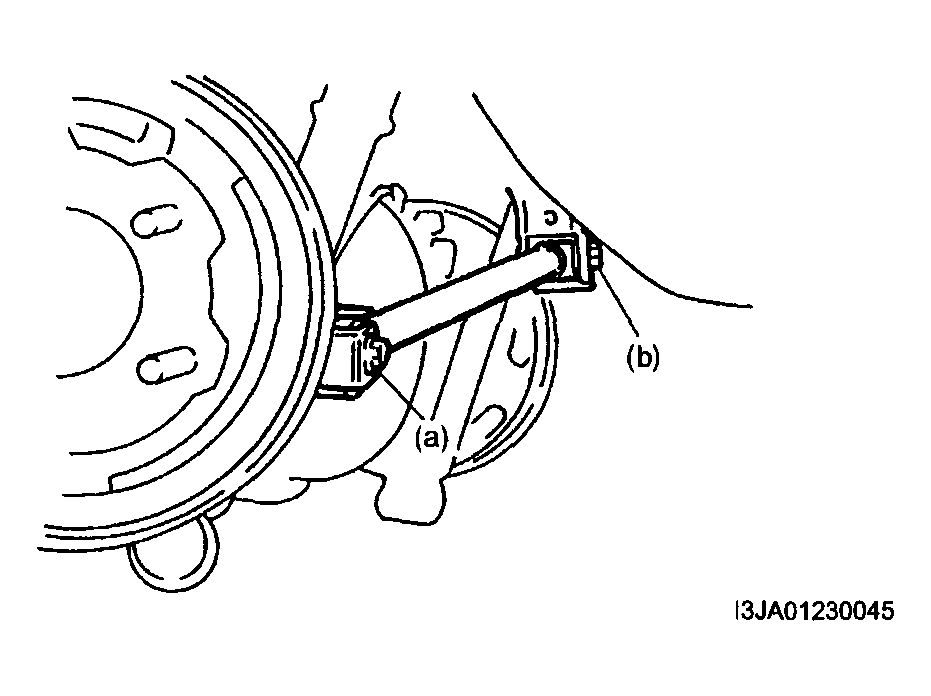

- Tighten lateral rod mounting bolts to specified torque.
Tightening torque
Lateral rod left side bolt (a): 100 N.m (10.0 kg-m, 72.5 lb-ft)
Lateral rod right side bolt (b): 90 N.m (9.0 kg-m, 65.0 lb-ft)
