SDM Removal and Installation: Installation

Check that none of the following faulty conditions exists.
- Bend, scratch, deformity in vehicle body where SDM is mounted.
- Foreign matter or rust on mating surface of vehicle body where SDM is mounted.
Install SDM (2) to vehicle.
CAUTION: Ensure that arrow on the SDM is pointing toward the front of the vehicle.
Tighten SDM bolts to specified torque.
Tightening torque

SDM bolt (a): 6 N.m (0.6 kg-m, 4.5 lb-ft)
Connect SDM connector (1) to SDM (2) securely.

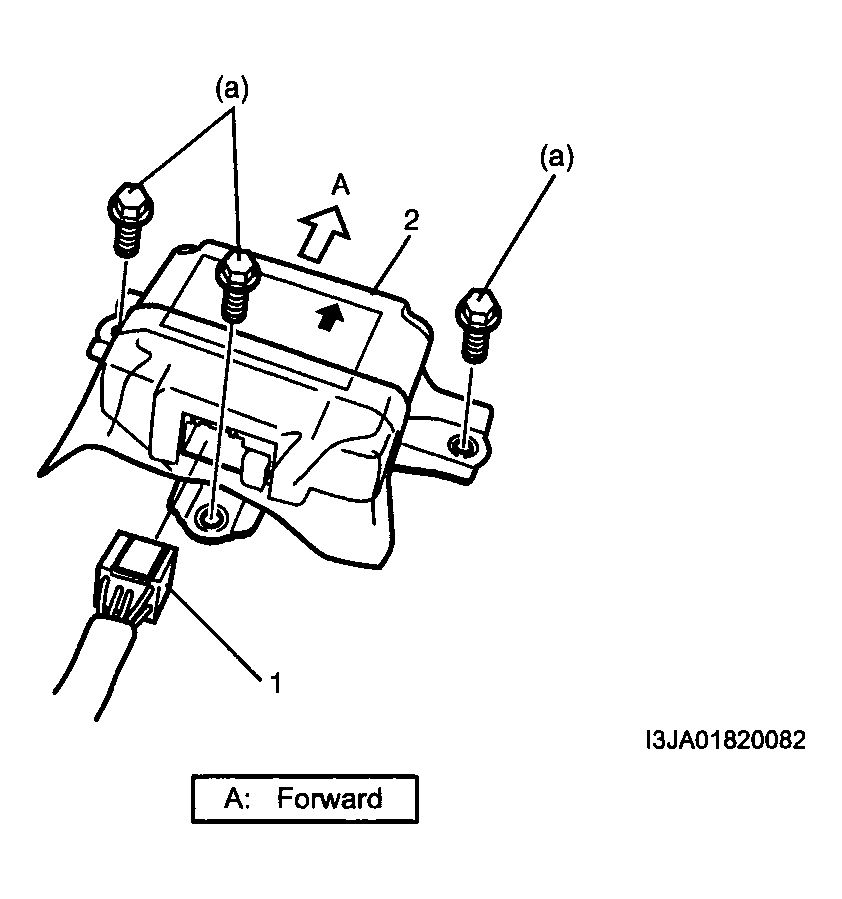

Fig 1: Connecting SDM Connector To SDM
Courtesy of SUZUKI OF AMERICA CORP.
Install front center console box (1) and rear center console box (2).

Fig 2: Installing Front Center Console Box And Rear Center Console Box
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable to battery.
Enable air bag system referring to "ENABLING AIR BAG SYSTEM ".
