Manual Transmission Rear Case Disassembly and Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove countershaft gutter (2) from transmission rear case (1).

Fig 1: Removing Countershaft Gutter From Transmission Rear Case
Courtesy of SUZUKI OF AMERICA CORP.

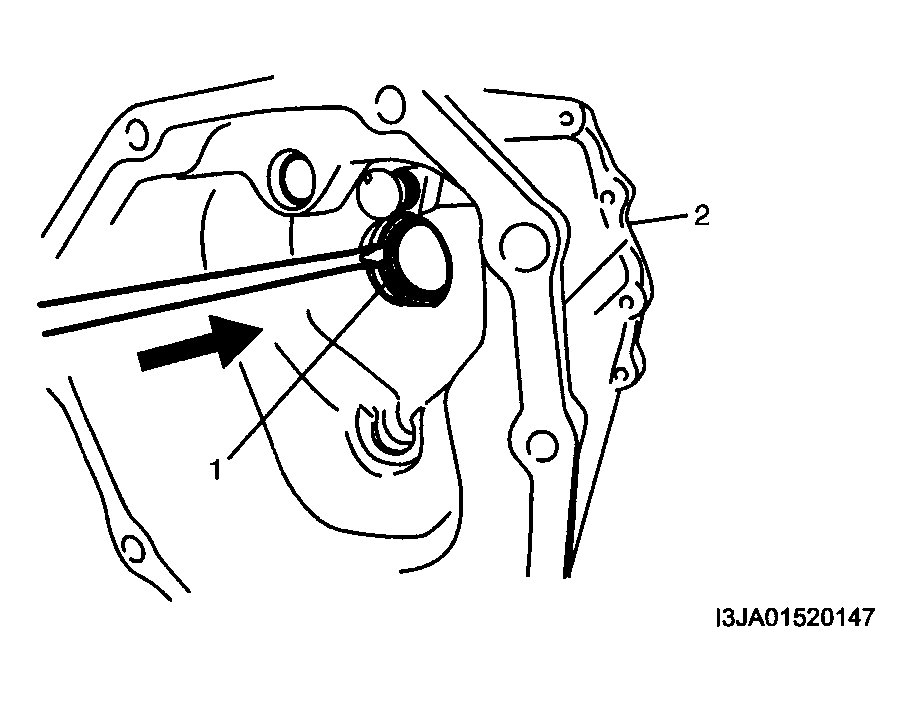

Take out oil seal (1) from rear case (2).

Fig 2: Removing Oil Seal From Rear Case
Courtesy of SUZUKI OF AMERICA CORP.
Remove interlock cam plug (1) by using torx(R) wrench (2).

Fig 3: Removing Interlock Cam Plug By Using Torx Wrench
Courtesy of SUZUKI OF AMERICA CORP.
Remove interlock cam pin using special tool.
Special tool

(A): 09922-85811

Fig 4: Removing Interlock Cam Pin Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Pull out interlock cam component (1).

Fig 5: Pulling Out Interlock Cam Component
Courtesy of SUZUKI OF AMERICA CORP.
