Engine Rear Mounting Replacement

When replacement of mounting parts are necessary, torque bolts and nut as specified below.

Tightening torque

Engine rear mounting bolts (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

Engine rear mounting member bolts (b): 55 N.m (5.5 kg-m, 40.0 lb-ft)

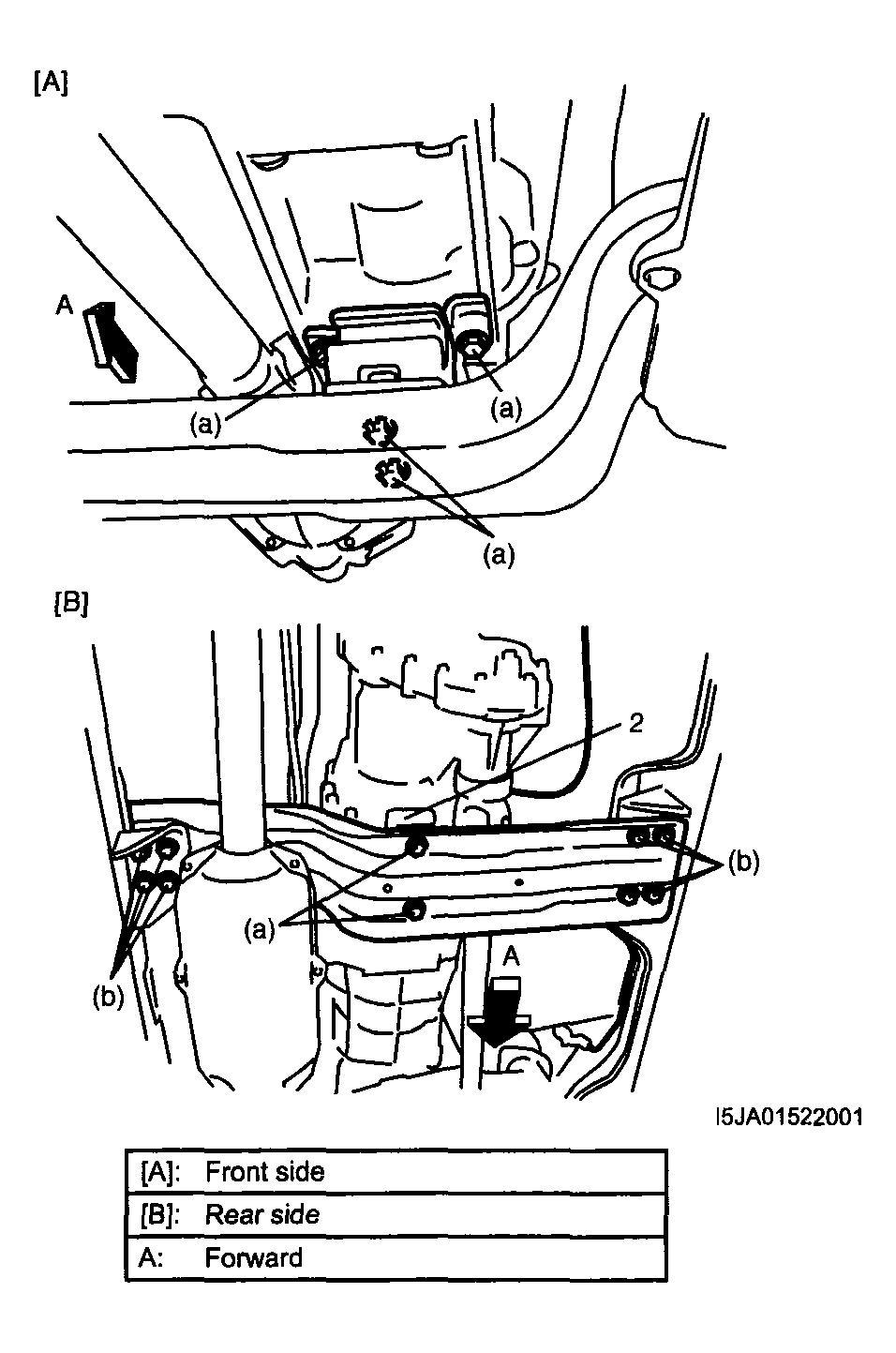

Fig 1: Removing Engine Rear Mounting Member

Courtesy of SUZUKI OF AMERICA CORP.
