Engine Rear Mounting Replacement
WARNING: This page is about a different variant/trim than selected.

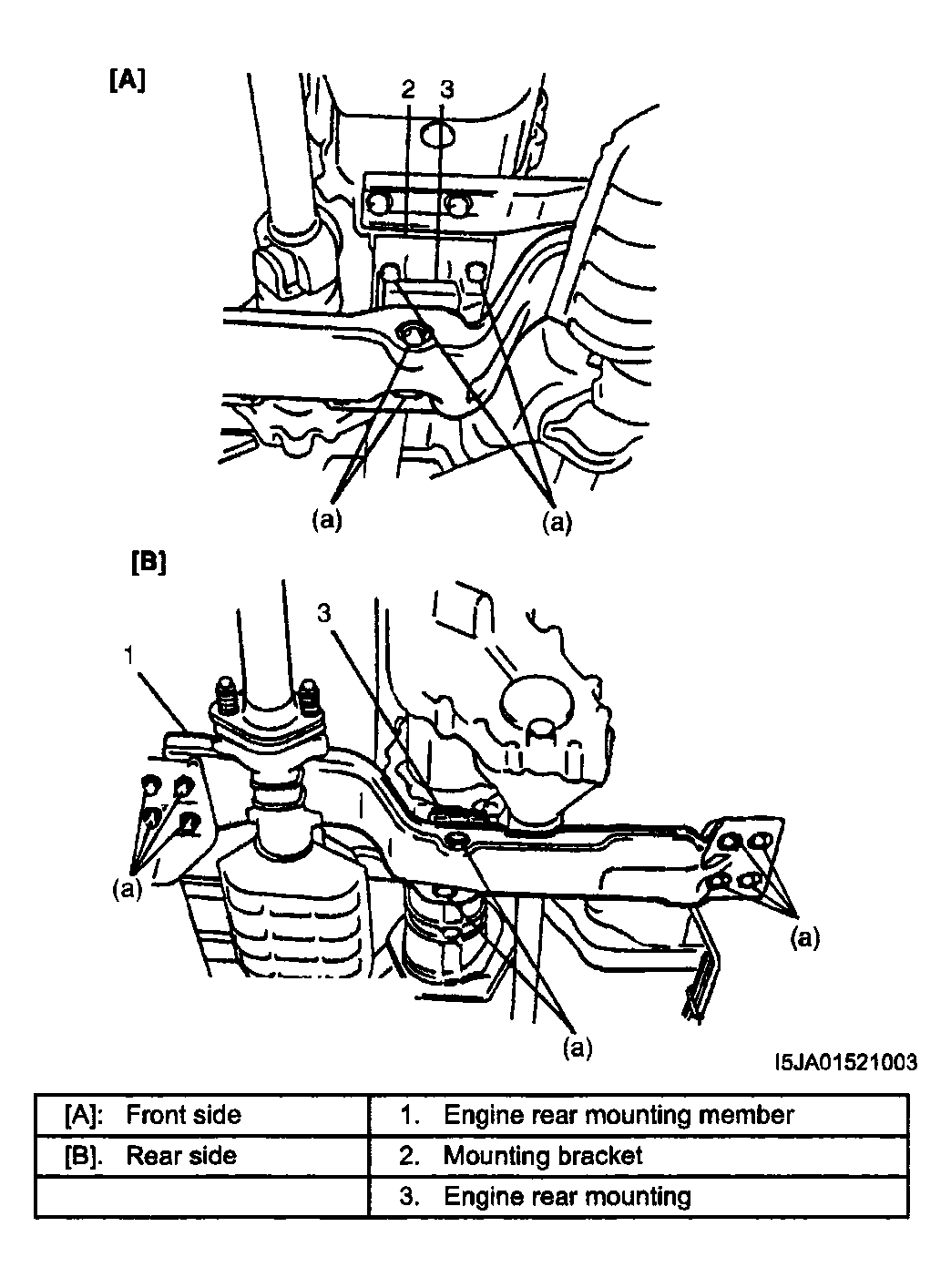

When replacement of mounting parts are necessary, torque bolts and nut as specified below.
Tightening torque
Engine rear mounting bolt and nut (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)
Courtesy of SUZUKI OF AMERICA CORP.
