Idle Air Control (IAC) Valve Removal and Installation: Removal

  1. Disconnect battery negative cable at battery.
  2. Disconnect IAC valve connector.
  3. Remove surge tank cover.
  4. Remove IAC valve (1) from throttle body.

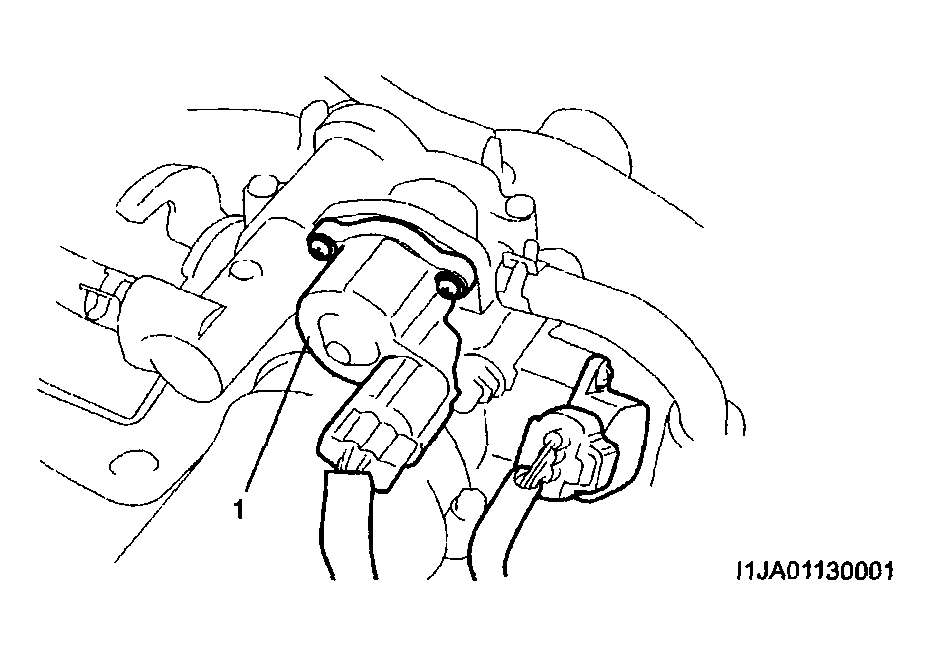

Fig 1: Removing IAC Valve From Throttle Body
G04097738Courtesy of SUZUKI OF AMERICA CORP.
