Fuel Tank Pressure and Temp. Sensor Removal and Installation (H25 Engine Only): Installation

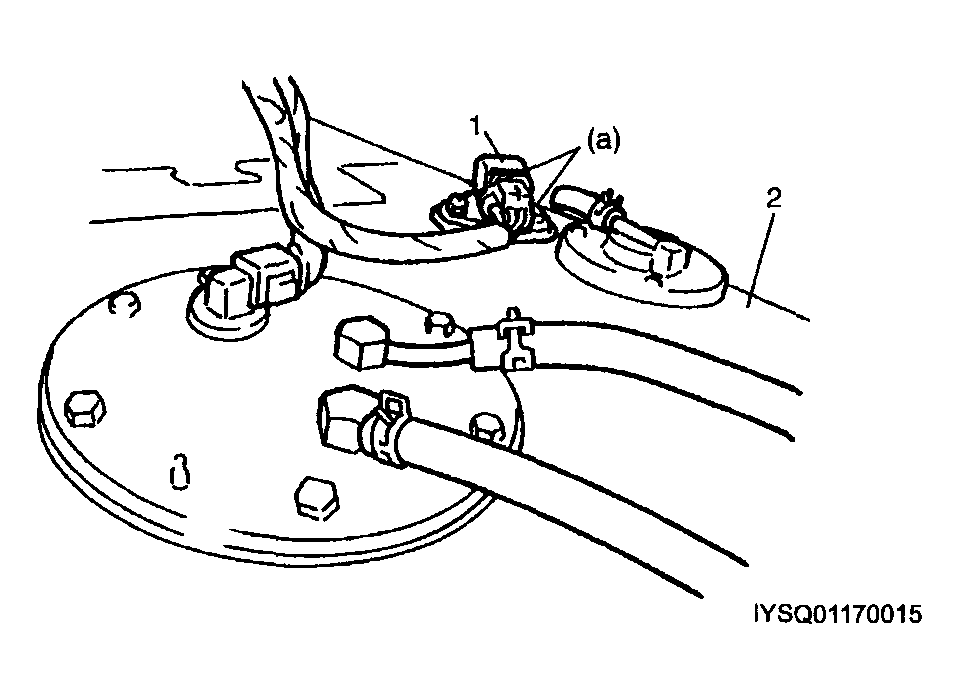

- Install fuel tank pressure and temp, sensor (1) on fuel tank (2) directing sensor terminals to fuel pump side.
Tightening torque
Fuel tank pressure and temp, sensor bolt (a): 1.6 N-m (0.16 kg-m, 1.2 lb-ft)
- Connect connector to tank pressure and temp. sensor (1) securely.
- Install fuel tank (2) to body according to procedure described in "FUEL TANK REMOVAL AND INSTALLATION ".
