DTC P0616: Starter Relay Circuit Low: Wiring Diagram

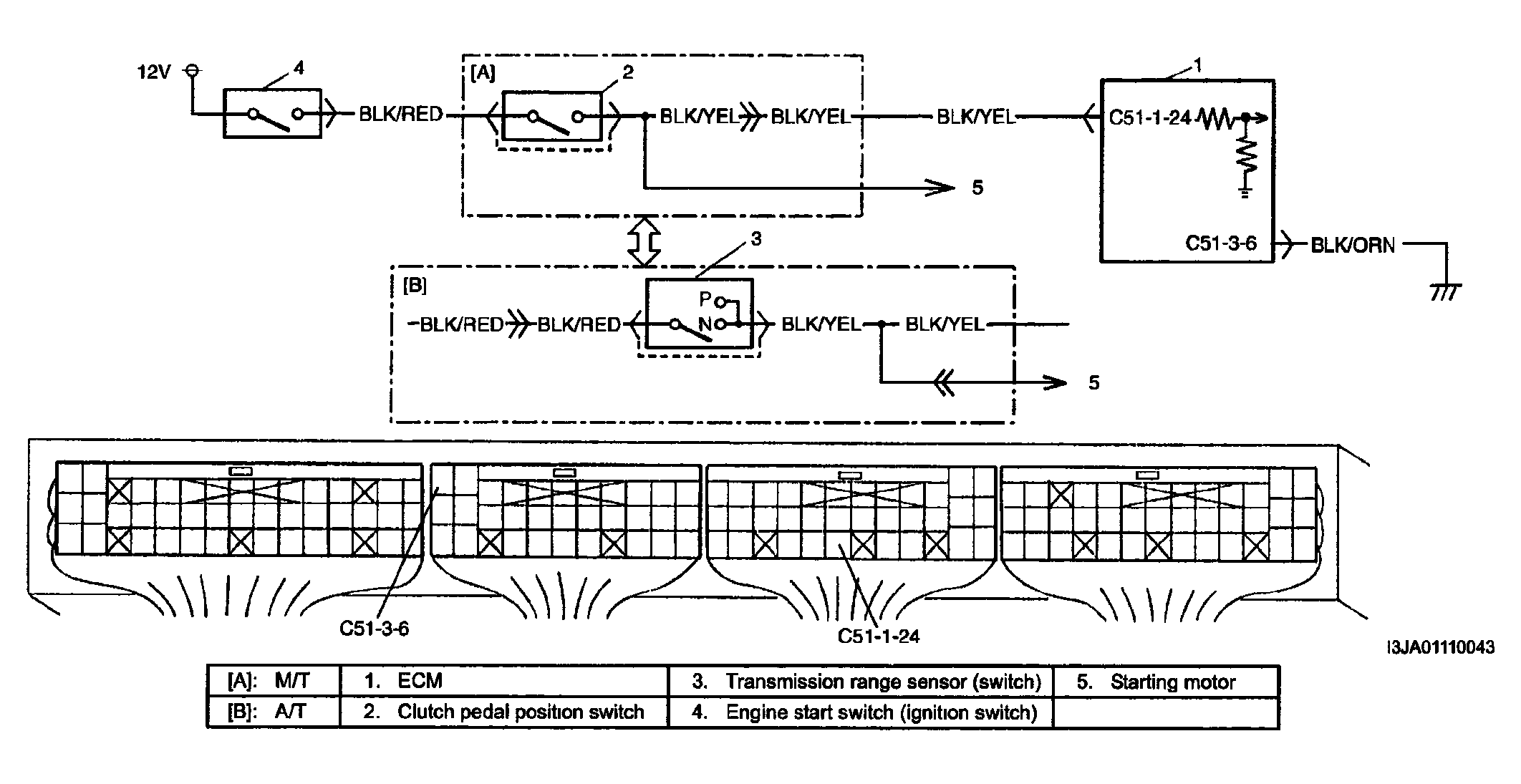

Fig 1: Starter Relay Circuit Low - Wiring Diagram
G04097537Courtesy of SUZUKI OF AMERICA CORP.
