System / Wiring Diagram

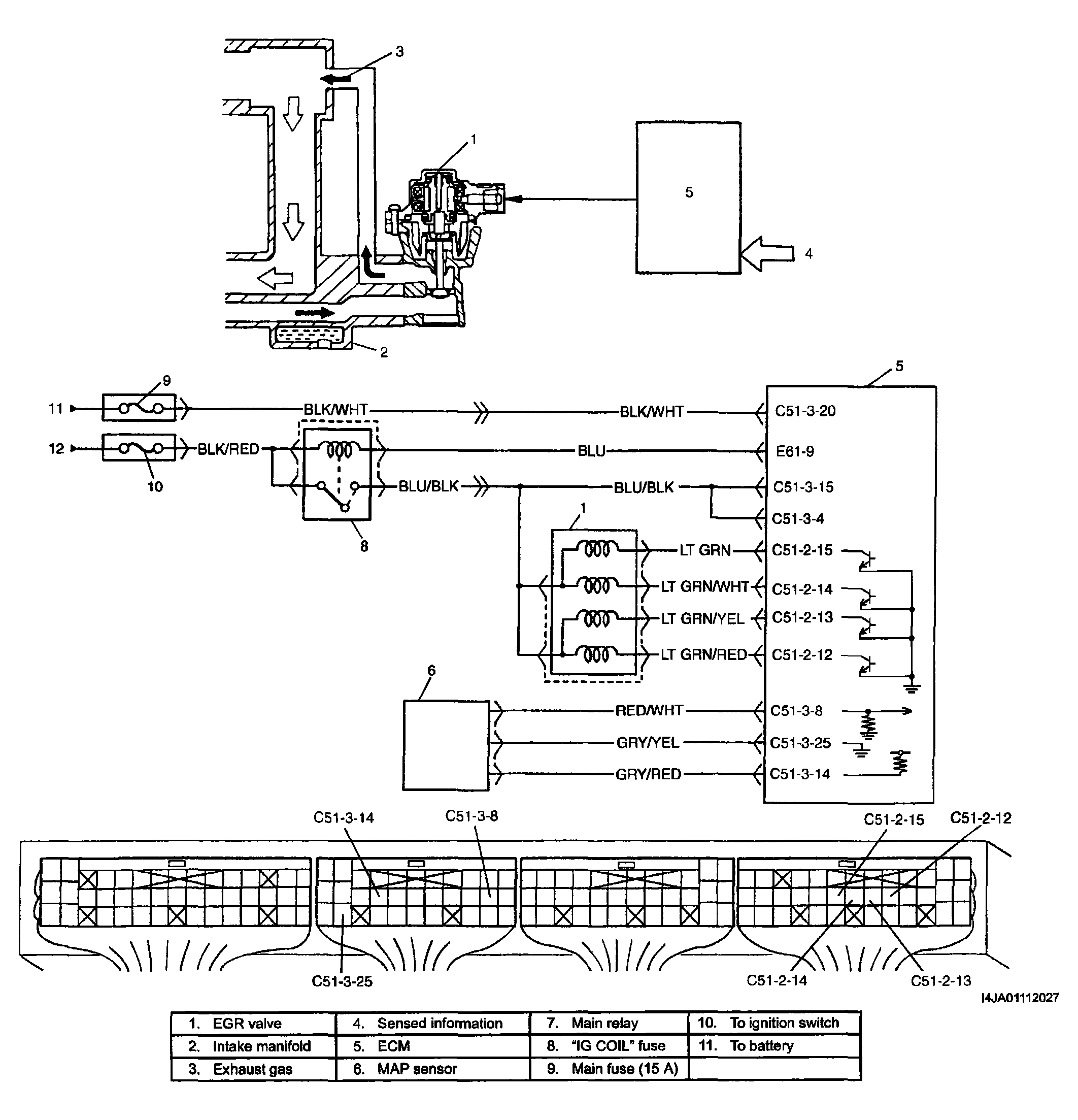

Fig 1: Exhaust Gas Recirculation Flow Insufficient Detected / Excessive Detected - System / Wiring Diagram
G04097519Courtesy of SUZUKI OF AMERICA CORP.
