DTC P0103: Mass Air Flow Circuit High Input: Wiring Diagram

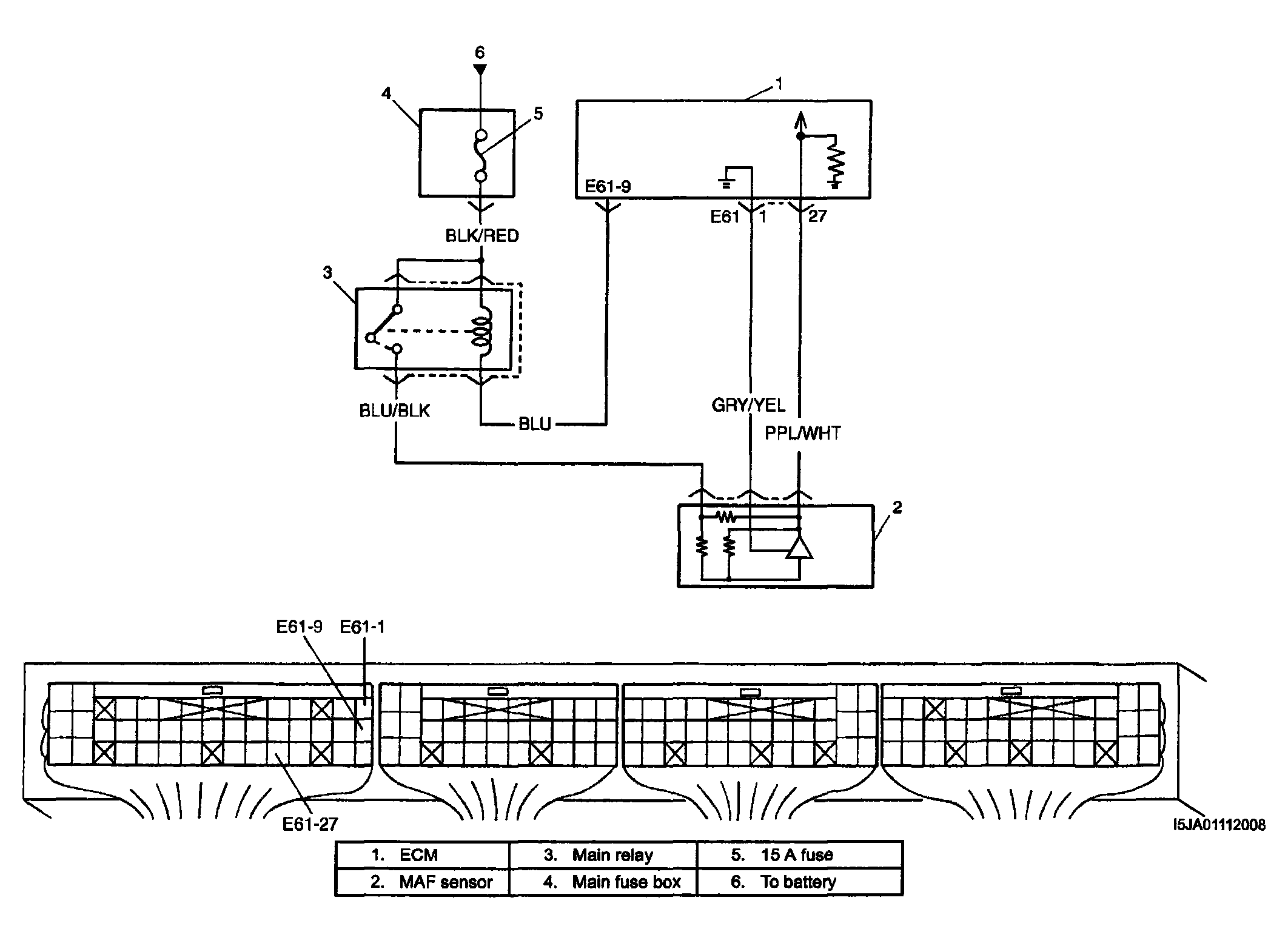

Fig 1: Mass Air Flow Circuit High Input - Wiring Diagram
G04097483Courtesy of SUZUKI OF AMERICA CORP.
