Resistance Check

  1. Disconnect ECM couplers from ECM with ignition switch OFF.
    CAUTION: Never touch terminals of ECM itself or connect voltmeter or ohmmeter.
  2. Check resistance between each pair of terminals of disconnected couplers as listed in the following table.
    CAUTION:
    • Be sure to connect ohmmeter probe from wire harness side of coupler.
    • Be sure to turn OFF ignition switch for this check.
    • Resistance in table represents that when parts temperature is 20 °C (68 °).

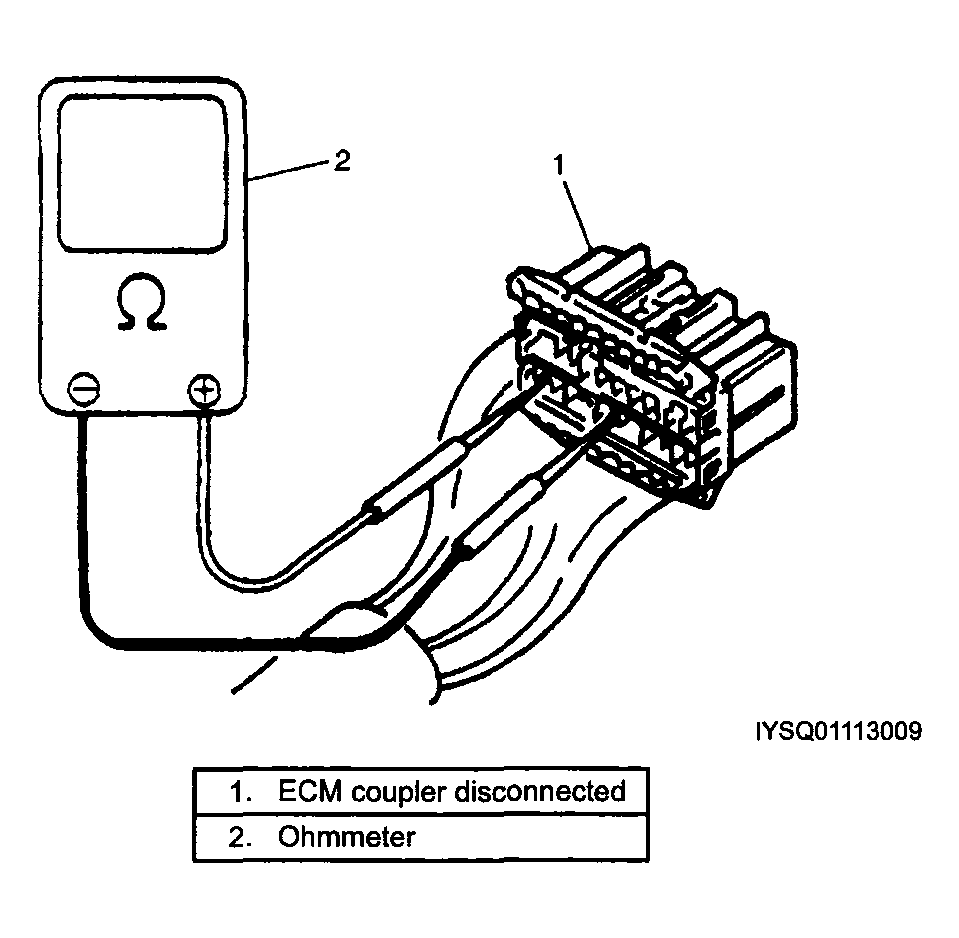

Fig 1: Checking Resistance Between Terminals Of Couplers
G04097442Courtesy of SUZUKI OF AMERICA CORP.
ECM RESISTANCE SPECIFICATIONS

Terminal Circuit Standard resistance Condition
E61-1 - Body ground Fuel pump relay 160-240 -
E61-5-C51-2-3 A/C condenser fan relay 160- 240 Ω Battery disconnected and ignition switch ON.
E61-8-E61-35 Main relay 160-240 Ω Battery disconnected.
E61-12-Body ground Fuel level sensor 117.5- 122.5 Ω Fuel level is Empty
1.5-4.5 ft Fuel level is Full
C51-3-2-C51-3-3 CKP sensor 485 - 655 Ω -
C51-3-8-C51-3-20 IAT sensor 2.09-2.81 Ω -
C51-3-19-C51-2-20 EVAP canister vent valve 25 - 30 Ω -
C51-3-22-C51-3-20 ECT sensor 303 - 326 Ω Engine coolant temp. 80 °C (176 °F)
(C51-1-1 - Body ground) Shift solenoid B 11-15 Ω -
(C51-1-2 - Body ground) TCC solenoid
(C51-1-6- Body ground) Shift solenoid A
(C51-1-8-C51-1-16) A/T input speed sensor 560 - 680 Ω -
(C51-1-9-C51-1-10) A/T output speed sensor 369 - 451 Ω -
C51-2-1-C51-2-20 EVAP canister purge valve 28 - 36 Ω -
C51-2-5-C51-2-20 EGR valve (stepper motor coil 1) 20 - 24 Ω -
C51-2-4-C51-2-20 EGR valve (stepper motor coil 2)
C51-2-17-C51-2-20 EGR valve (stepper motor coil 3)
C51-2-16-C51-2-20 EGR valve (stepper motor coil 4)
C51-2-7-C51-2-20 Fuel injector No.1 10-14 Ω -
C51-2-6-C51-2-20 Fuel injector No.2
C51-2-19-C51-2-20 Fuel injector No.3
C51-2-18-C51-2-20 Fuel injector No.4
C51-2-28-C51-2-20 Fuel injector No.5
C51-2-27-C51-2-20 Fuel injector No.6
C51-2-15-C51-2-20 IAC valve (stepper motor coil 1) 21-23 Ω -
C51-2-14-C51-2-20 IAC valve (stepper motor coil 2)
C51-2-25-C51-2-20 IAC valve (stepper motor coil 3)
C51-2-24-C51-2-20 IAC valve (stepper motor coil 4)
NOTE: Terminals in () parenthesis are applicable to A/T only.
