DTC P0403: Exhaust Gas Recirculation (EGR) Control Circuit: Wiring Diagram

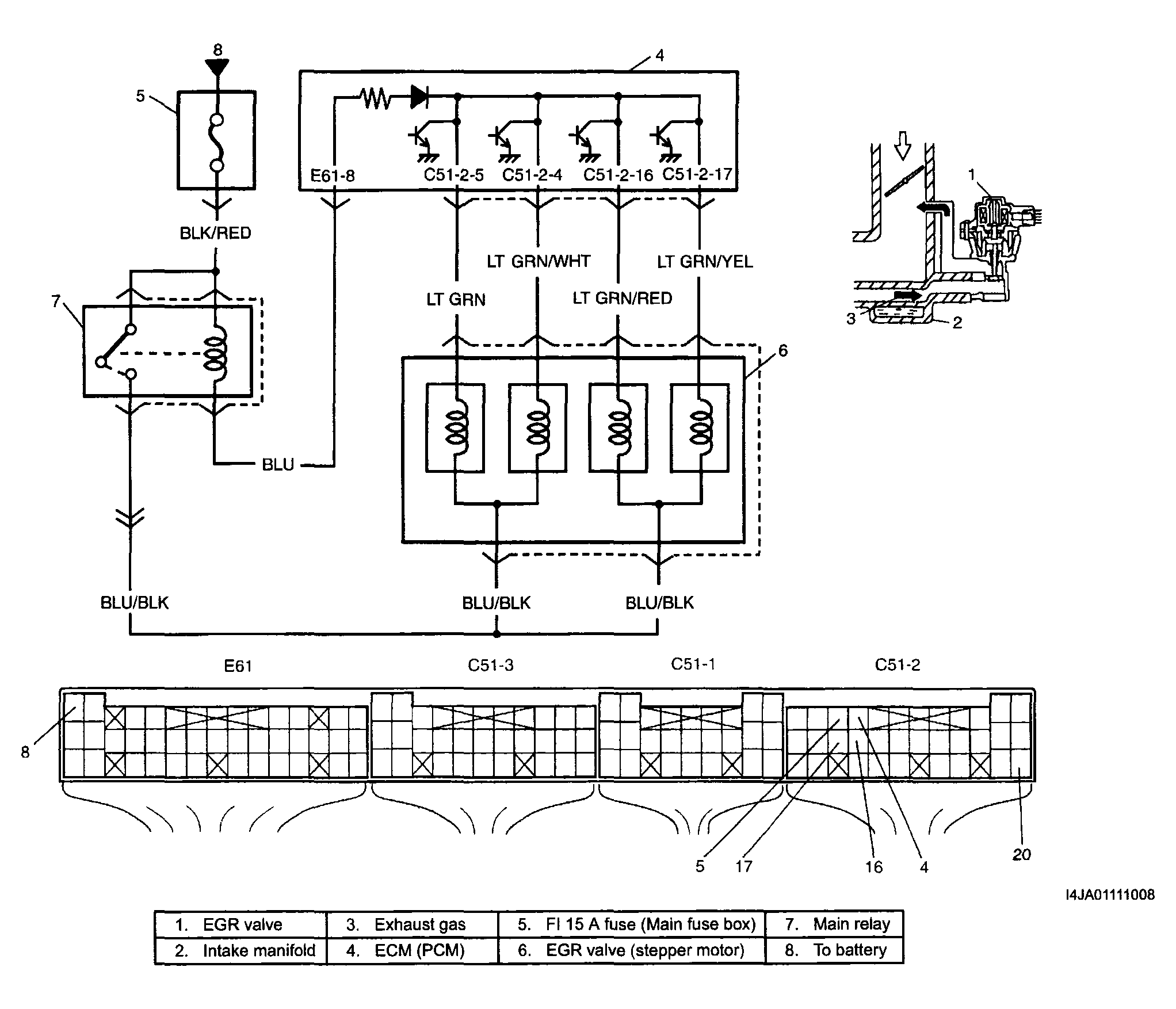

Fig 1: Exhaust Gas Recirculation Control Circuit - Wiring Diagram
G04097410Courtesy of SUZUKI OF AMERICA CORP.
