For H27 Engine Model

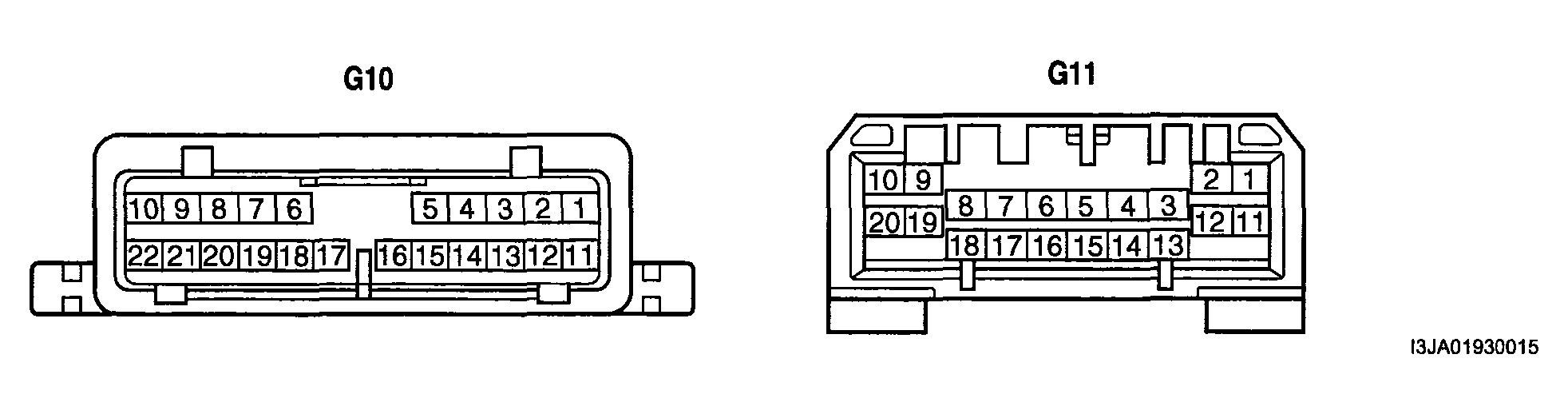

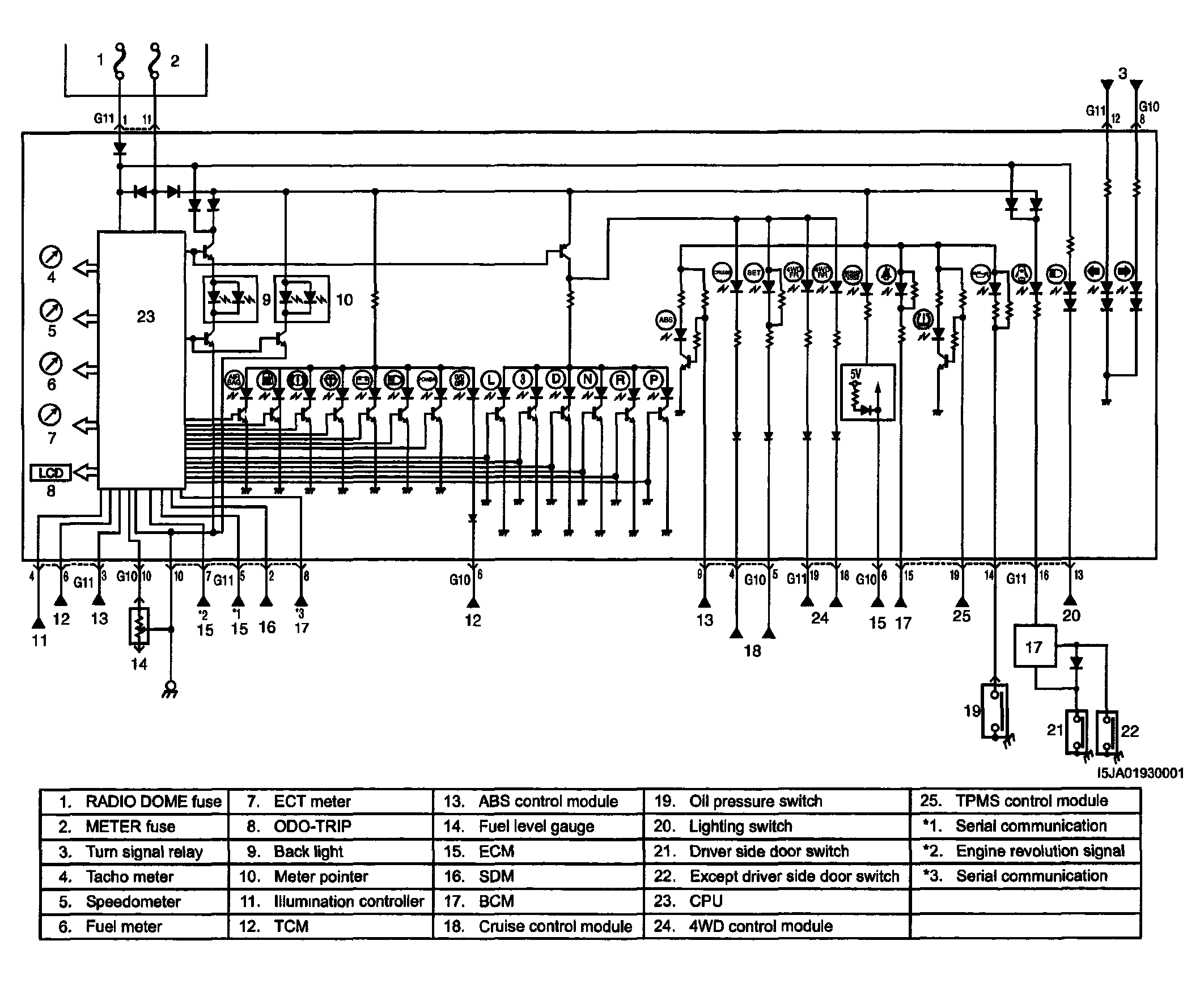

G10 & G11 TERMINAL AND CIRCUIT DESCRIPTION
| Terminal | Wire color | Circuit |
|---|---|---|
| G10-1 | - | - |
| G10-2 | - | - |
| G10-3 | - | - |
| G10-4 | LT GRN/WHT | To Cruise control module (CRUISE indicator control signal) |
| G10-5 | GRY/YEL | To Cruise control module (SET indicator control signal) |
| G10-6 | PPL/YEL | To ECM (SERVICE ENGINE SOON indicator control signal) |
| G10-7 | - | - |
| G10-8 | GRN/YEL | To turn signal relay (Turn R signal indicator control signal) |
| G10-9 | BLU/ORN | To ABS control module (ABS indicator control signal) |
| G10-10 | BLU/WHT | To fuel level gauge |
| G10-11 | - | - |
| G10-12 | - | - |
| G10-13 | - | - |
| G10-14 | - | - |
| G10-15 | PPL/RED | To data link connector |
| G10-16 | WHT/BLK | To transmission control module (O/D OFF indicator control signal) |
| G10-17 | - | - |
| G10-18 | - | - |
| G10-19 | - | - |
| G10-20 | - | - |
| G10-21 | - | - |
| G10-22 | - | - |
| G11-1 | WHT | To RADIO DOME fuse (+BB) |
| G11-2 | BLU | To SDM |
| G11-3 | ORN | To ABS control module (EBD warning indictor control signal) |
| G11-4 | RED/GRN | To illumination controller |
| G11-5 | YEL/WHT | To ECM (ECT meter signal) |
| G11-6 | BLU/YEL | To transmission control module (VSS indicator control signal) |
| G11-7 | BRN | To ECM (Tachometer signal) |
| G11-8 | YEL | To BCM (DRL, brake fluid level, parking brake, Charge warning, Washer level, POWER, O/D OFF, A/T selector position indicator control and Light switch cognition signal) |
| G11-9 | BLU/RED | To 4WD control module (4WD L signal) |
| G11-10 | BLK/YEL | To Fuel level gauge ground |
| G11-11 | BLK/WHT | To METER fuse (IG1) |
| G11-12 | GRN/RED | To turn signal relay (Turn L signal indicator control signal) |
| G11-13 | RED | To combination switch (High beam indicator control signal) |
| G11-14 | YEL/BLK | To oil pressure switch |
| G11-15 | GRN | To BCM (Driver side seat belt reminder control signal) |
| G11-16 | BLK/RED | To door switch |
| G11-17 | GRY/RED | To 4WD control module (4WD FR signal) |
| G11-18 | GRY/WHT | To 4WD control module (4WD RR signal) |
| G11-19 | BRN/WHT | To TPMS control module |
| G11-20 | - | - |
