Indicator check

Check the state of indicator.

• Green Dot:  Proceed to load test.
• Dark:  Charge battery as outlined in "Battery Charging Procedures:" and proceed to load test.
• Clear or Light Yellow:  The battery must be replaced.

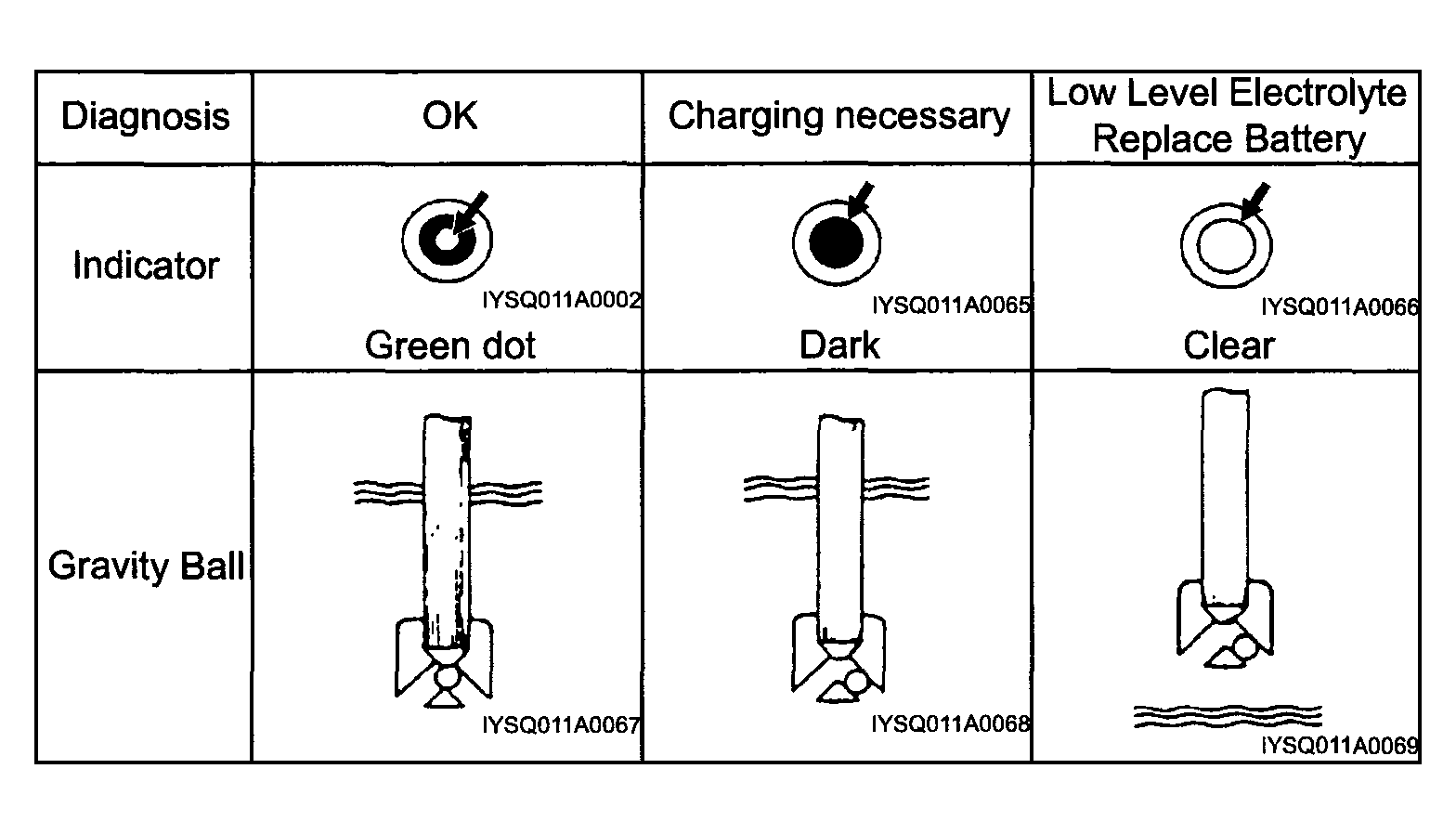

Fig 1: Indicator Description Chart

Courtesy of SUZUKI OF AMERICA CORP.
