Battery Dismounting and Remounting: Remounting

  1. Reverse removal procedure.
  2. Torque battery cables to specification.
    NOTE: Check to be sure that ground cable has enough clearance to hood panel by terminal.

    Tightening torque

    Battery ground bolt (a): 8.0 N.m (0.8 kg-m, 6.0 lb-ft)

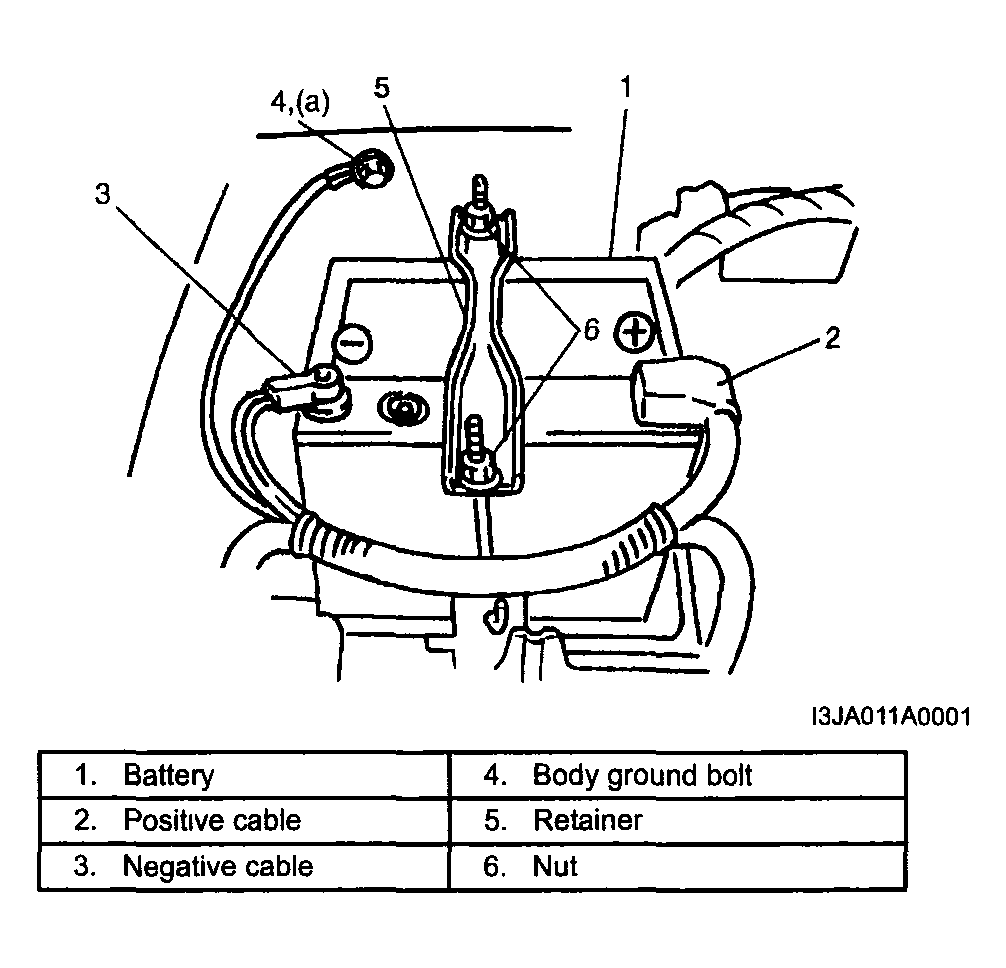

Fig 1: Locating Battery Components
G04098266Courtesy of SUZUKI OF AMERICA CORP.
