BCM and Related System Location

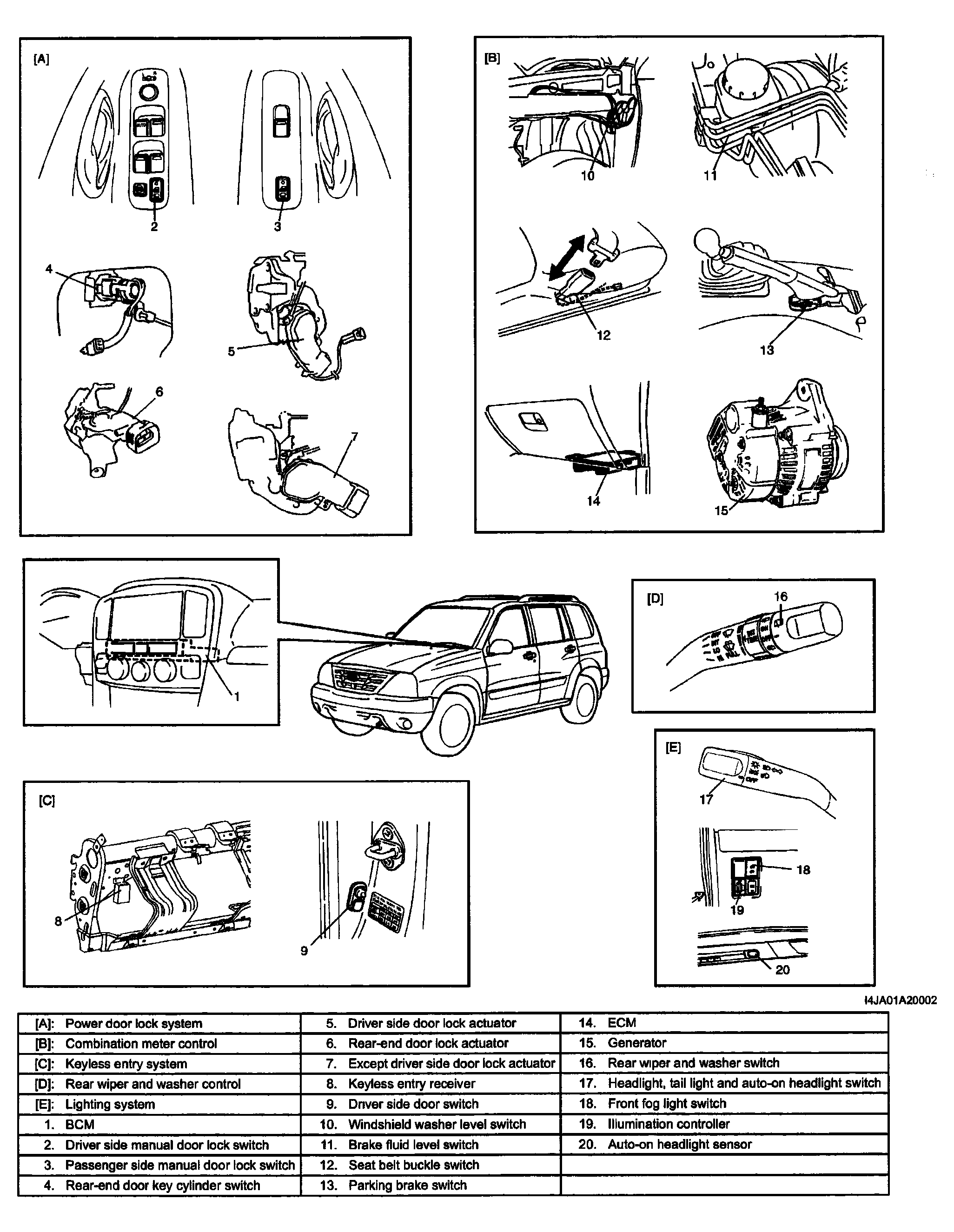

Fig 1: Identifying BCM And Related System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
