Front Differential Components

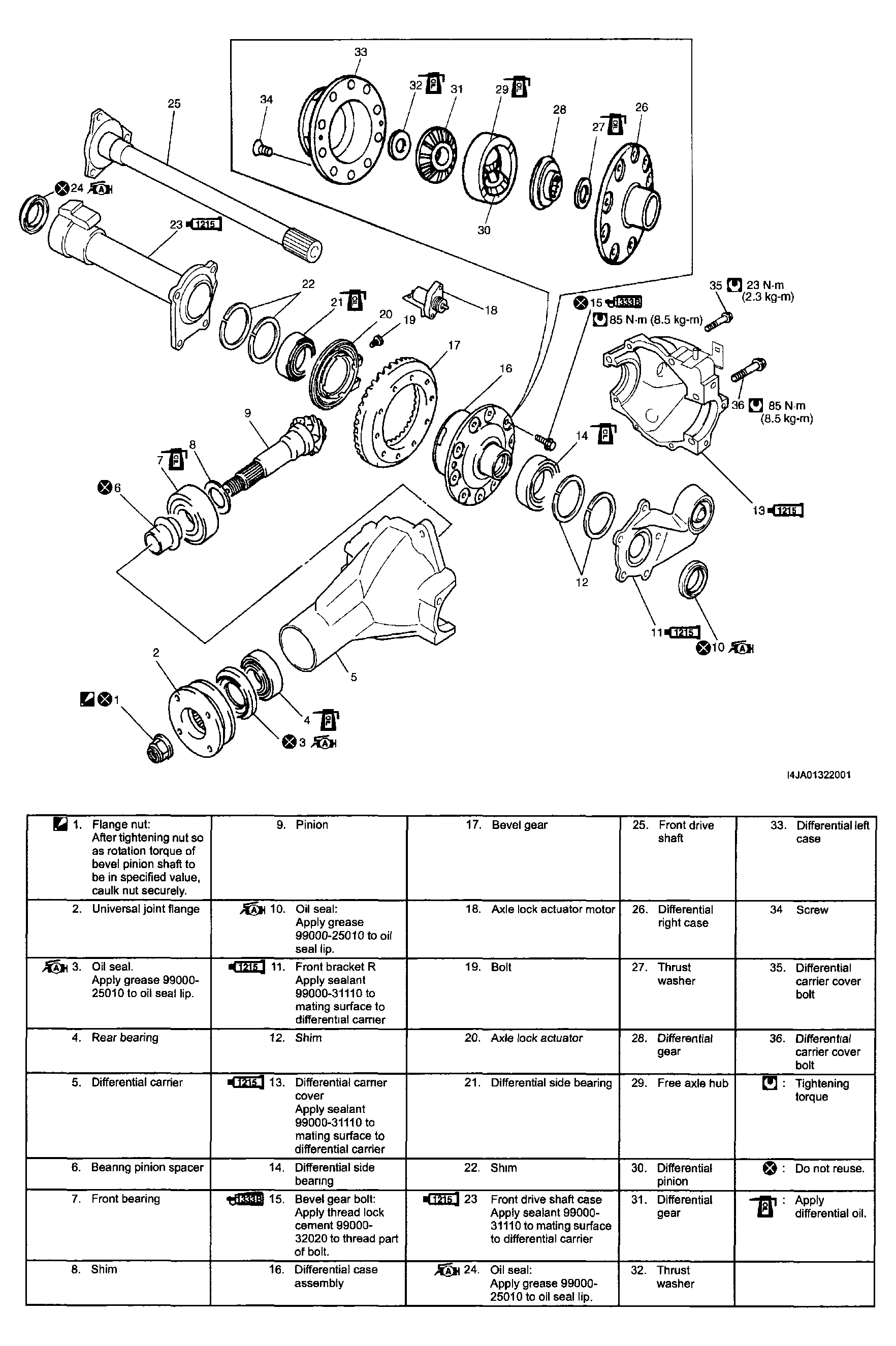

Fig 1: Exploded View Of Front Differential Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
