Sliding Roof Switch Inspection

Check switch for continuity between terminals as shown below.

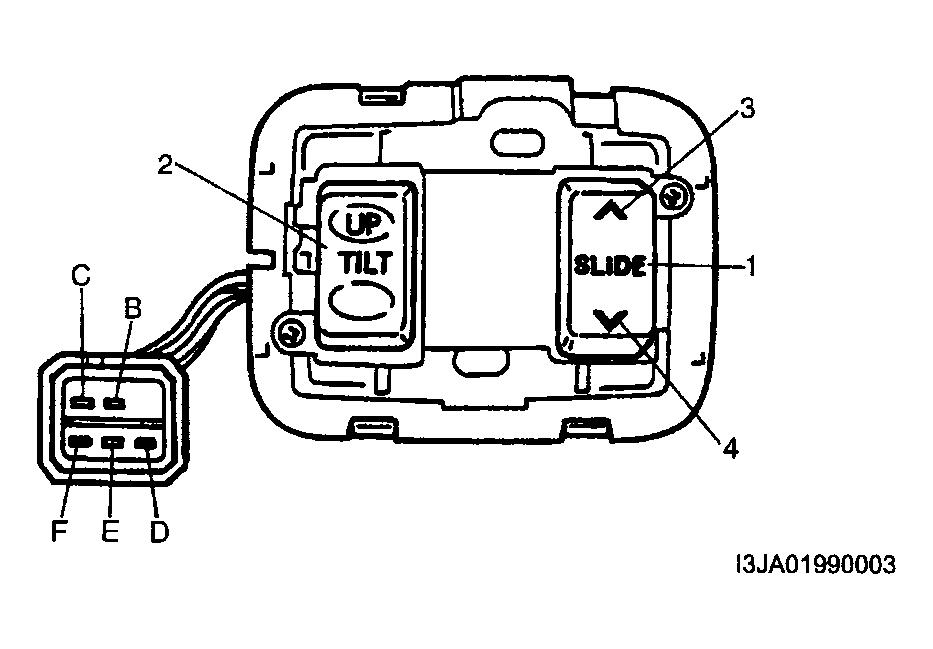

Fig 1: Identifying Sliding Roof Switch Connector

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Continuity Reference Chart (Slide Switch)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Continuity Reference Chart (Tilt Switch)

Courtesy of SUZUKI OF AMERICA CORP.
