Front Seat Removal and Installation for H25 Engine Model: Installation

Reverse removal procedure to install front seat, noting the following points.

• Torque to specifications as shown in the figure.

Tightening torque

Front seat mounting bolt (a): 35 N.m (3.5 kg-m, 25.5 lb-ft)

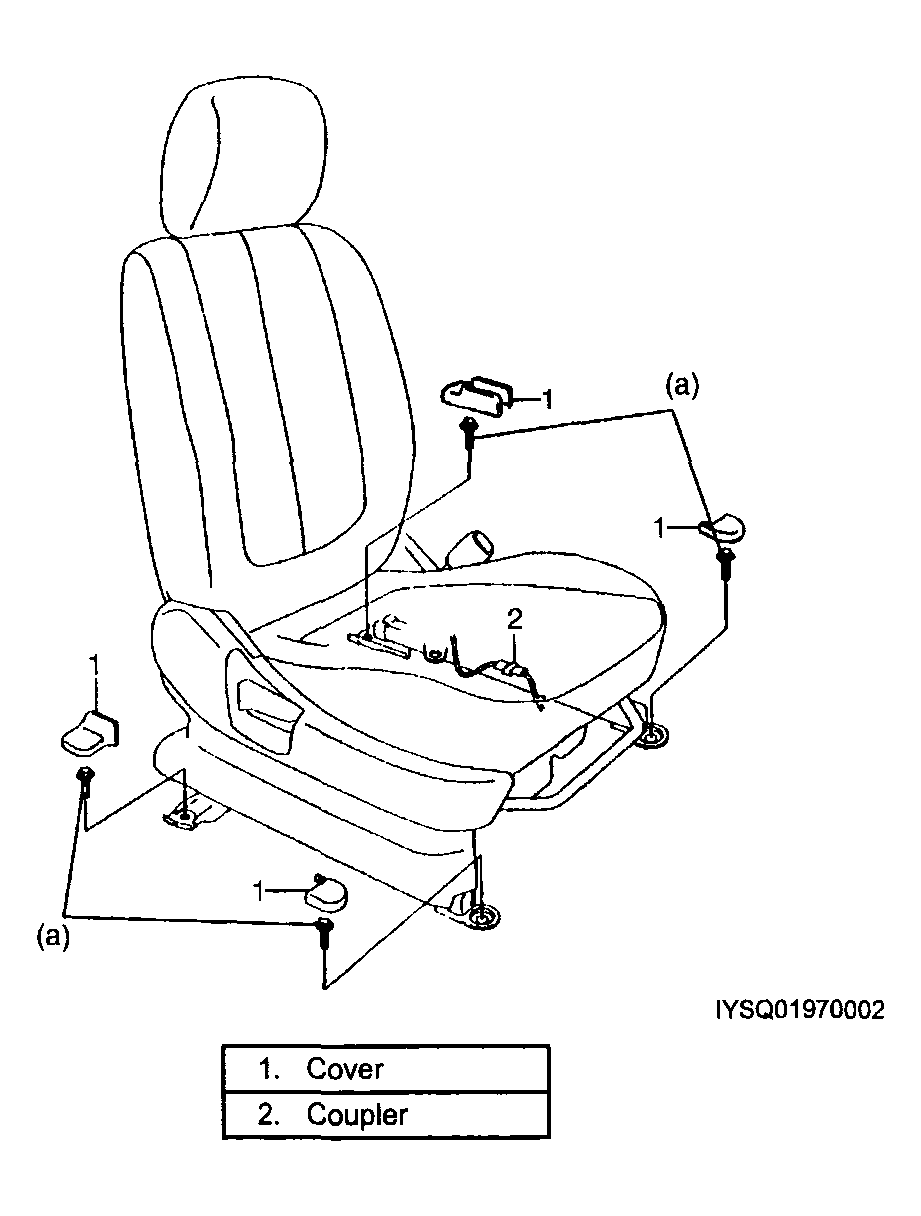

Fig 1: Disconnecting Lead Wire At Coupler

Courtesy of SUZUKI OF AMERICA CORP.
