Contact Coil and Combination Switch Assembly Removal and Installation: Removal

1. Remove steering wheel from steering column. Refer to "STEERING WHEEL REMOVAL AND INSTALLATION ".
2. Remove steering column hole cover (1).

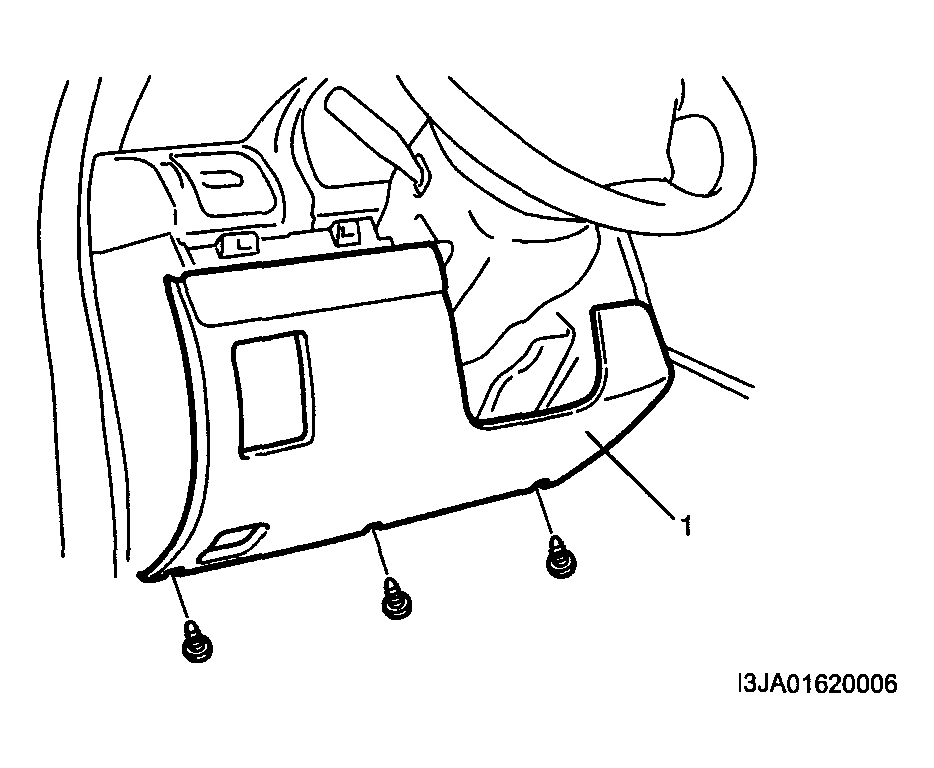

   Fig 1: Removing Steering Column Hole Cover

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove steering column cover screws (1) (3 pieces).
4. Separate upper cover (2) and lower cover (3), then remove them.

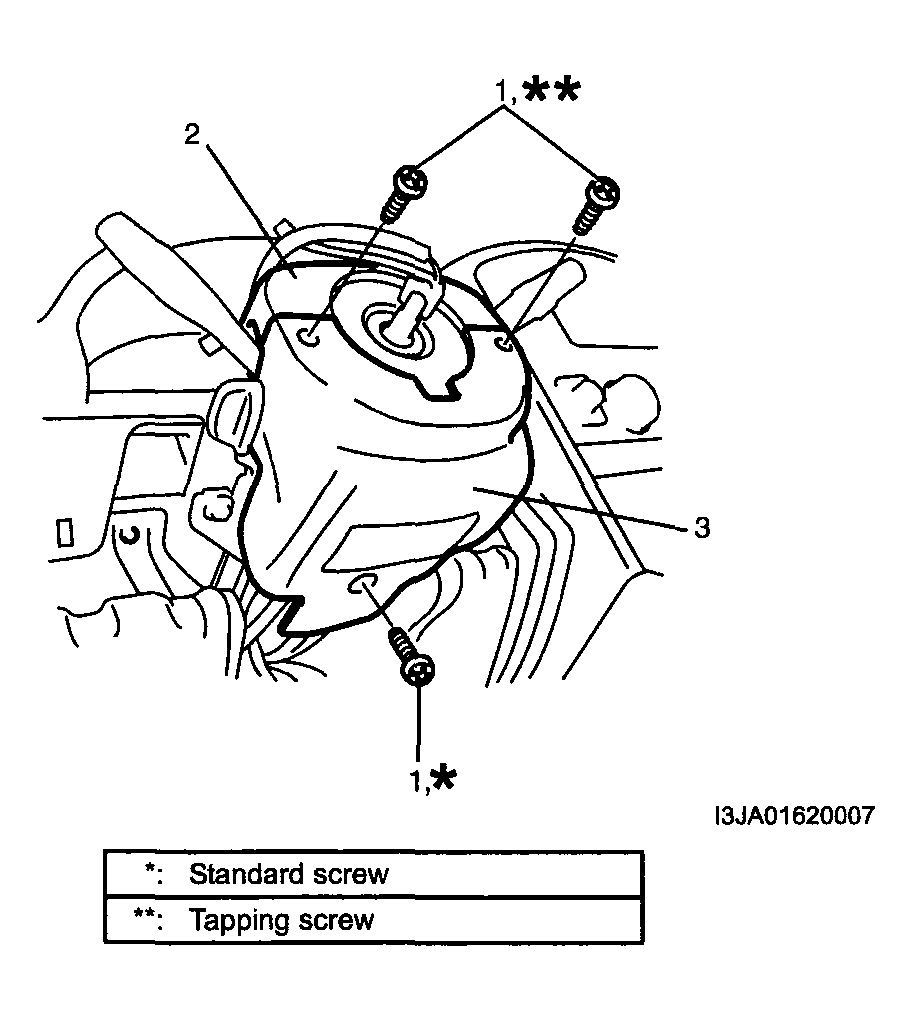

   Fig 2: Separating Upper Cover And Lower Cover

   Courtesy of SUZUKI OF AMERICA CORP.
5. Disconnect all connectors for contact coil and combination switch assembly.
6. Remove contact coil and combination switch assembly (1) from steering column.

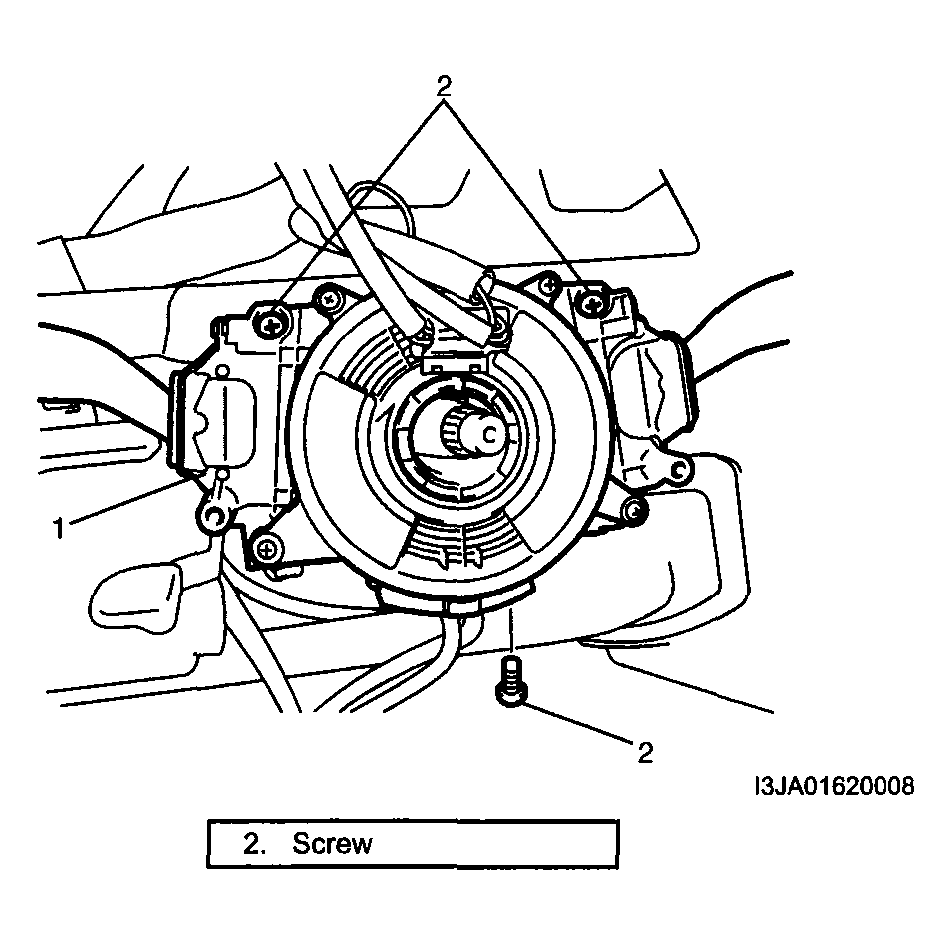

Fig 3: Removing Contact Coil And Combination Switch Assembly From Steering Column

Courtesy of SUZUKI OF AMERICA CORP.
