Rear Door Window Regulator Removal and Installation: Removal

1. Remove door glass referring to "REAR DOOR GLASS REMOVAL AND INSTALLATION ".
2. Disconnect power window motor lead wire at coupler and clamp.
3. Remove door window regulator attaching nuts (6 pcs) (1), and take out regulator through hole (2) as shown in the figure.

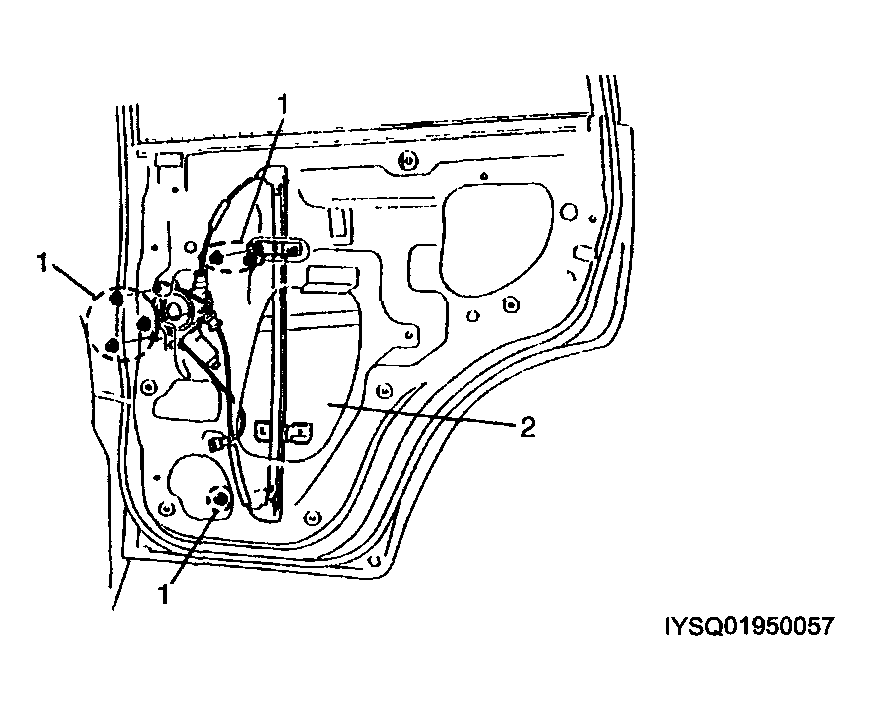

Fig 1: Removing Door Window Regulator

Courtesy of SUZUKI OF AMERICA CORP.
