Front Door Glass Removal and Installation: Installation

Reverse removal procedure to install door glass noting the following points:

• Tighten glass attaching screws (1) to specified torque. Tighten front screw first, then rear screw.

  Tightening torque

  Glass attaching screw (front and rear) (a): 2.5 N.m (0.25 kg-m, 1.8 lb-ft)

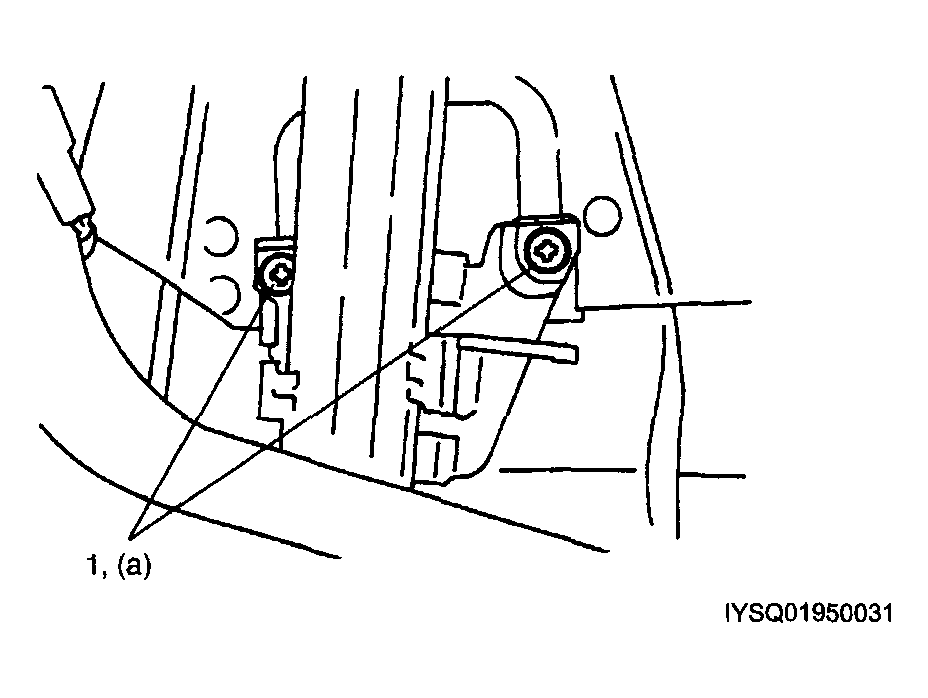

  Fig 1: Tightening Glass Attaching Screws

  Courtesy of SUZUKI OF AMERICA CORP.
• When window becomes hard to raise and lower, adjust screws (1) to correct tilted glass as shown in the figure.

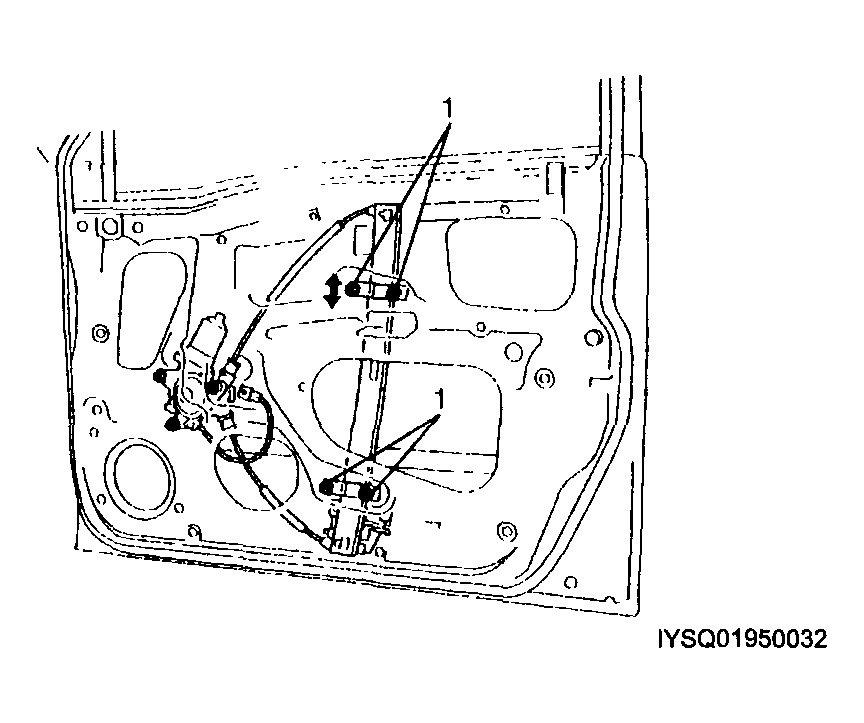

  Fig 2: Adjusting Screws To Correct Tilted Glass

  Courtesy of SUZUKI OF AMERICA CORP.
• Adjust equalizer of window regulator so that measurement A and B are equal.
  Fig 3: Adjusting Equalizer Of Window Regulator

  Courtesy of SUZUKI OF AMERICA CORP.
• Secure door sealing cover (1) with adhesive (2).

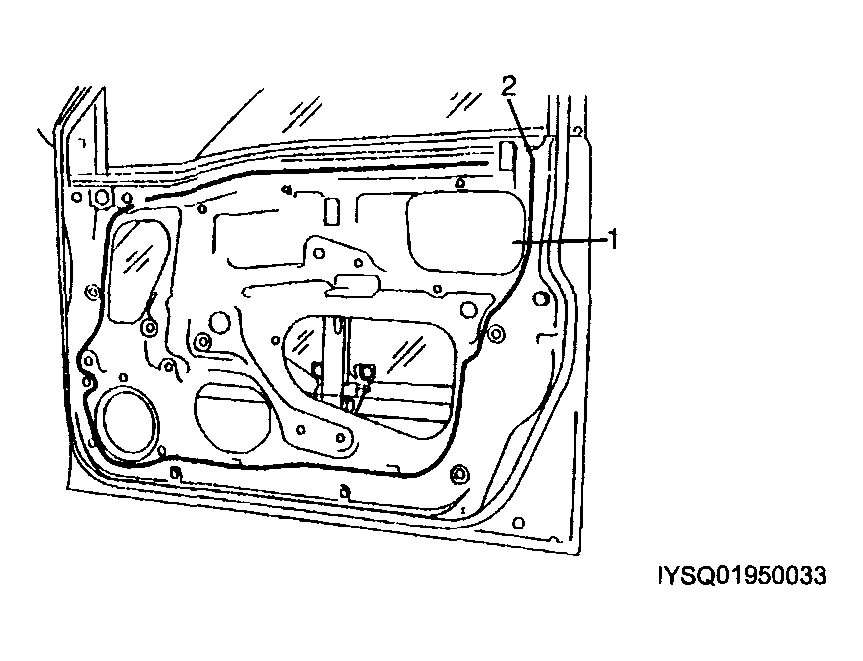

Fig 4: Securing Door Sealing Cover With Adhesive

Courtesy of SUZUKI OF AMERICA CORP.
