Sealant Application Area for H25 Engine Model

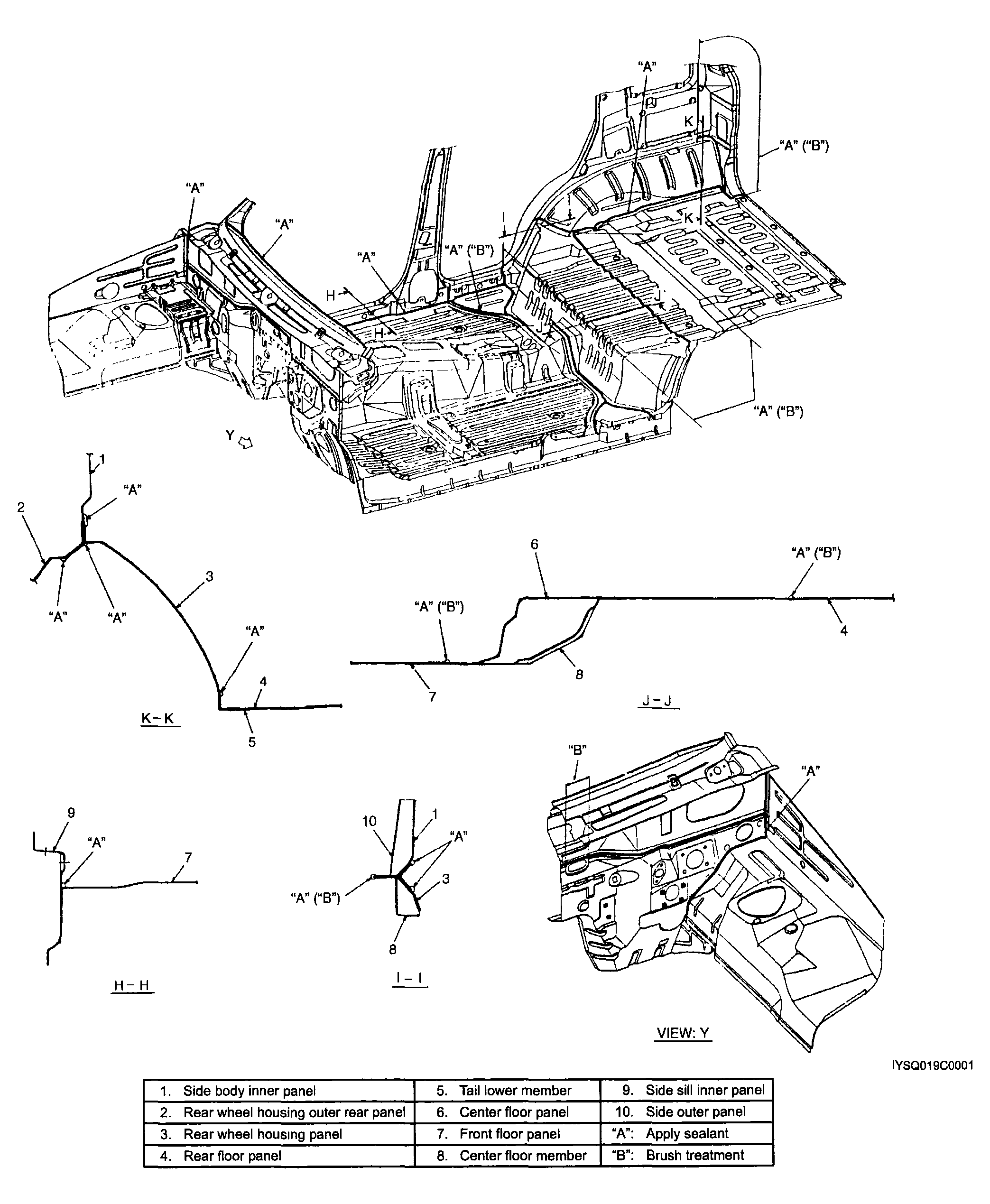

Fig 1: Identifying Sealant Application Area For H25 Engine Model (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

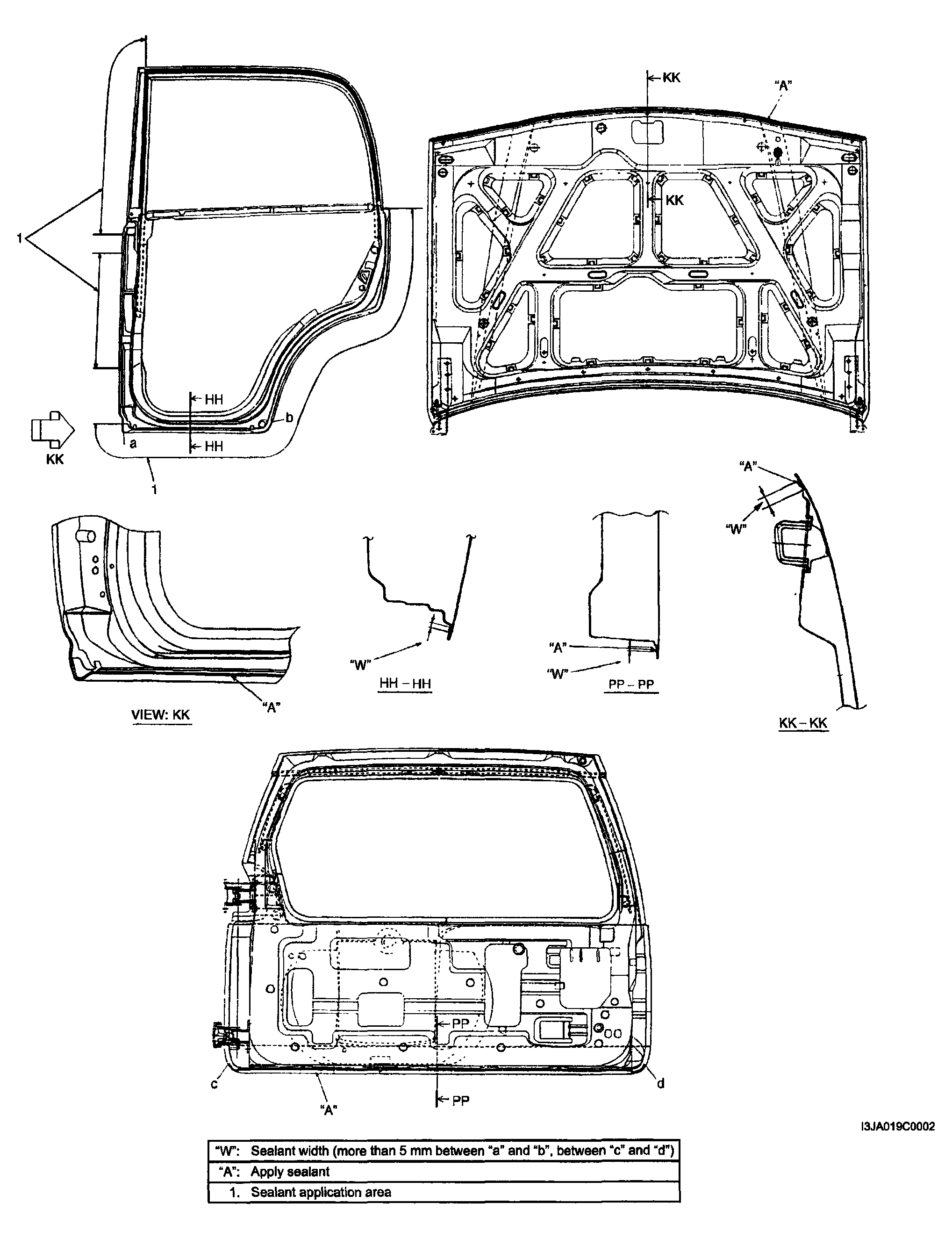

Fig 2: Identifying Sealant Application Area For H25 Engine Model (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

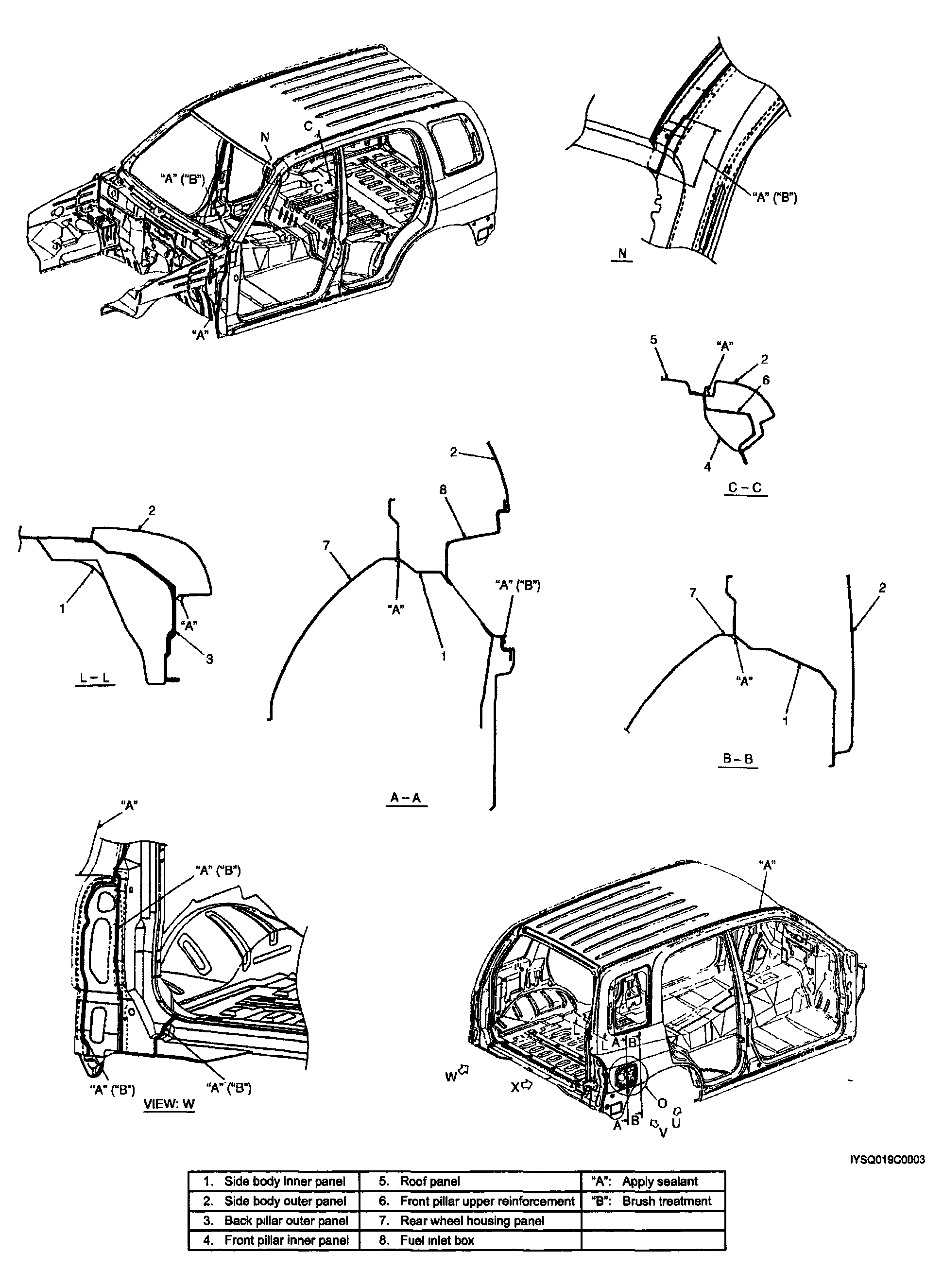

Fig 3: Identifying Sealant Application Area For H25 Engine Model (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

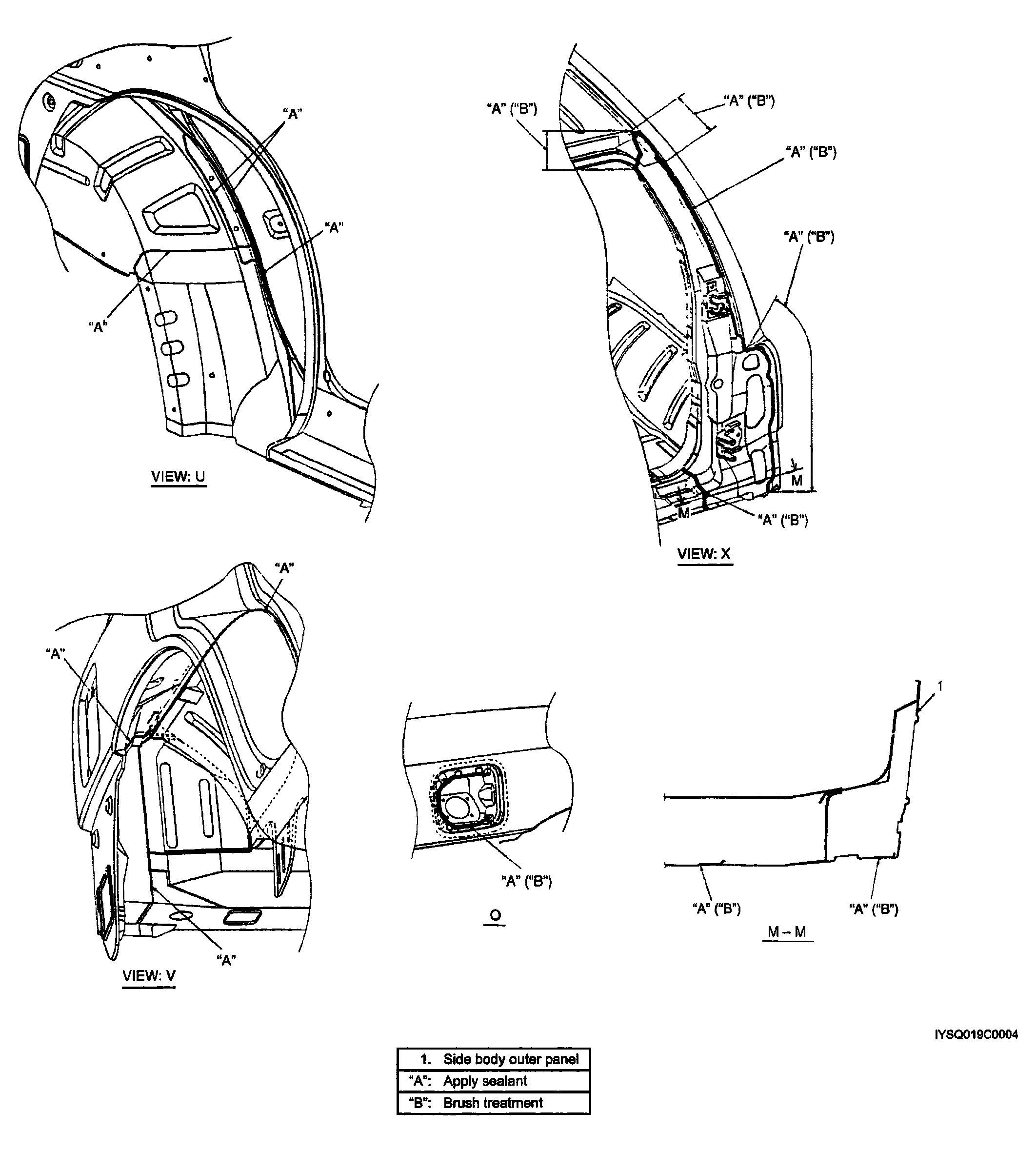

Fig 4: Identifying Sealant Application Area For H25 Engine Model (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

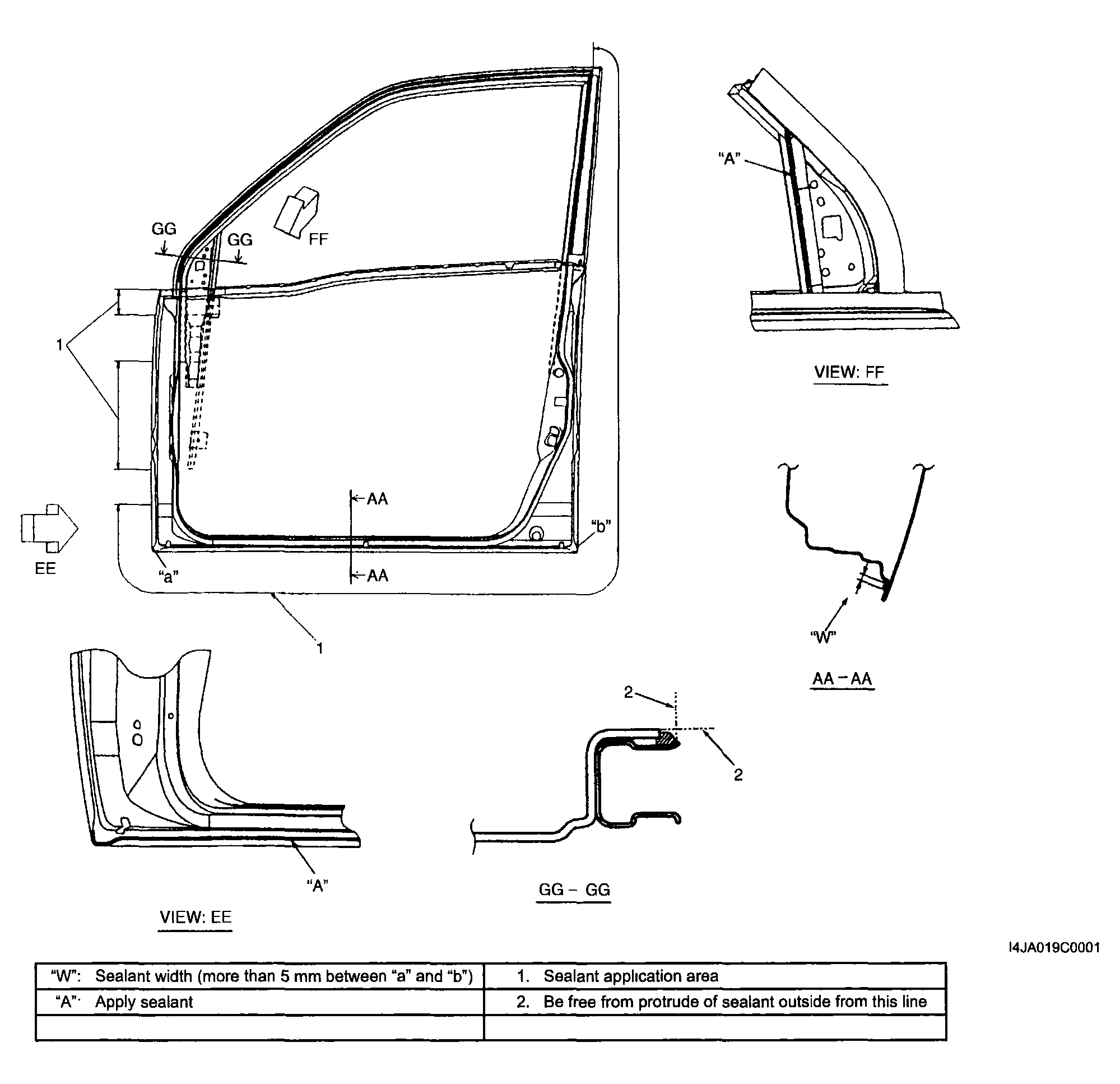

Fig 5: Identifying Sealant Application Area For H25 Engine Model (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

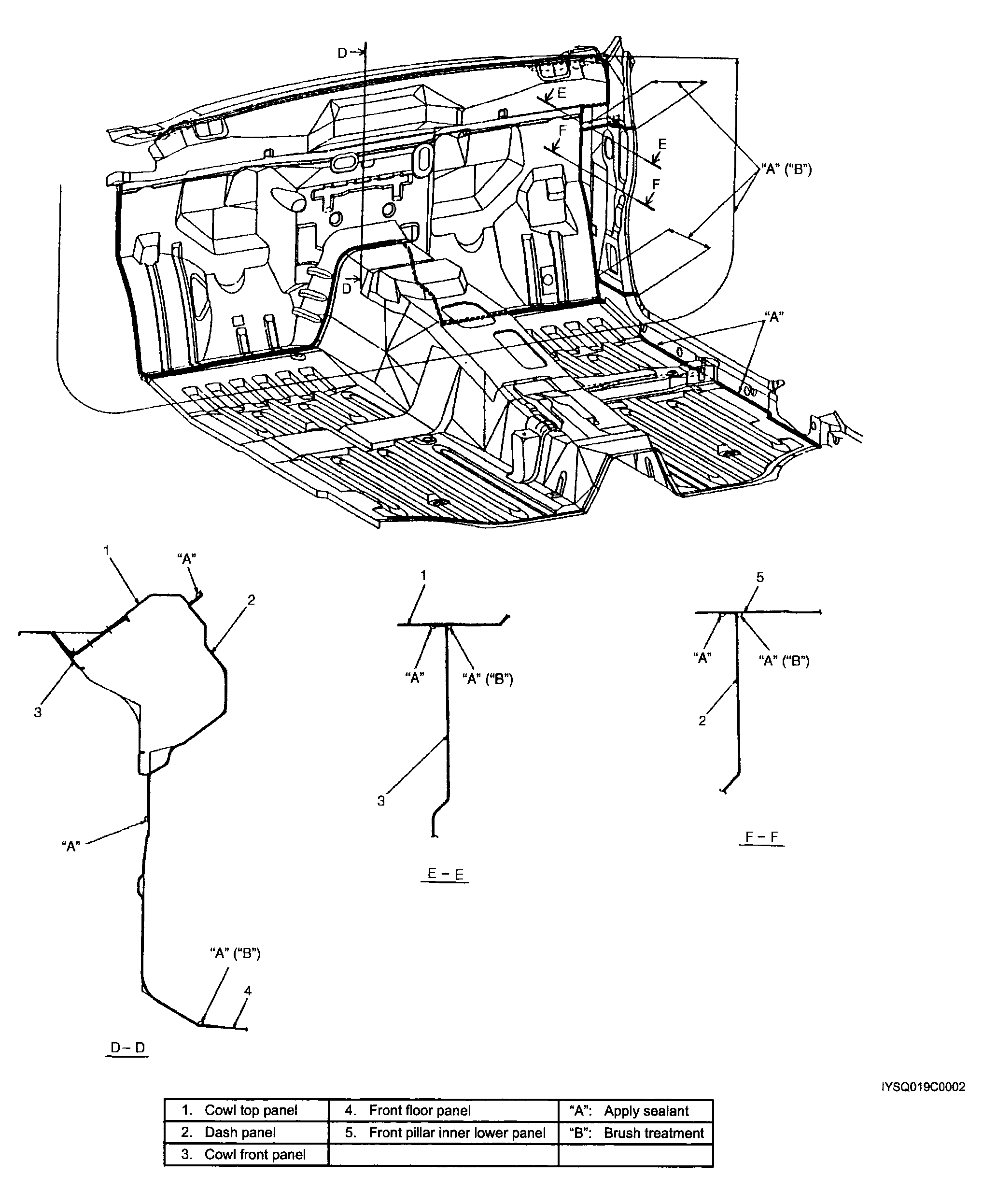

Fig 6: Identifying Sealant Application Area For H25 Engine Model (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
