Under Body Dimensions

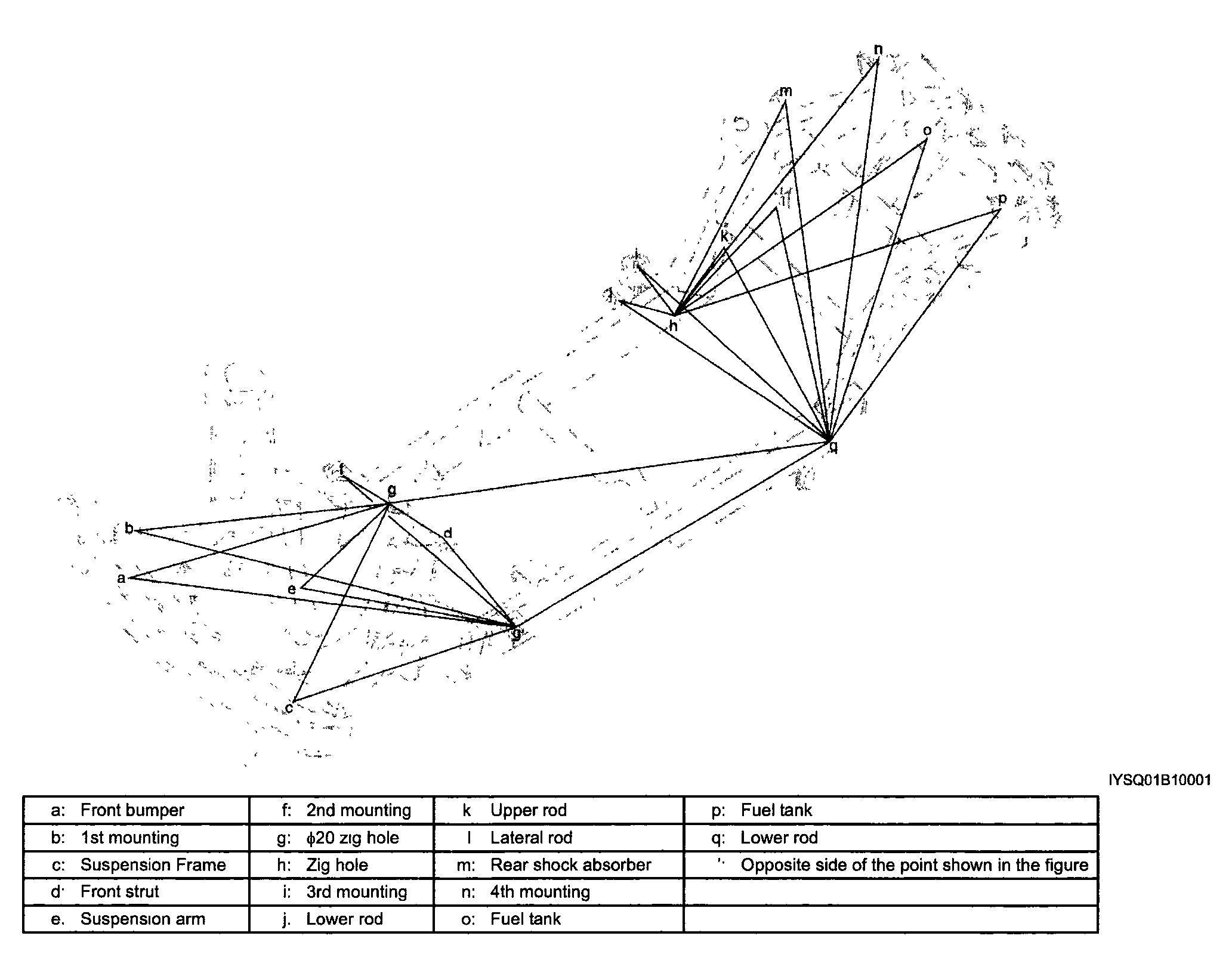

UNDER BODY HOLE TO HOLE DISTANCE
| a-g: 1315 mm (51.77 in.) | e-g: 525 mm (20.67 in.) | h -1: 674 mm (26.54 in.) | l-q: 1130 mm (44.49 in.) |
| a-g': 1534 mm (60.39 in.) | e-g': 857 mm (33.74 in.) | h-m: 803 mm (31.61 in.) | m - q: 1258 mm (49.53 in.) |
| b-g: 1243 mm (48.94 in.) | f-g': 927 mm (36.50 in.) | h-n: 1161 mm (45.71 in.) | n-q: 1483 mm (58.39 in.) |
| b-f': 1518 mm (59.76 in.) | g-q: 1534 mm (60.39 in.) | h-o: 1184 mm (46.61 in.) | o-q: 1349 mm (53.11 in.) |
| c-g: 1377 mm (54.21 in.) | g'-q: 1275 mm (50.20 in) | h-p: 1190 mm (46.85 in.) | p-q: 1334 mm (52.52 in.) |
| c-g': 1105 mm (43.50 in.) | h-i: 178 mm (7.01 in.) | i - q: 999 mm (39.33 in.) | |
| d-g': 1319 mm (51.93 in.) | h-j: 133 mm (5.24 in.) | j - q: 997 mm (39.25 in.) | |
| d - f: 874 mm (34.41 in.) | h - k: 325 mm (12.80 in.) | k-q: 824 mm (32.44 in.) |
