Manual Door Lock Switch Inspection

Inspect continuity at terminals according to the door lock switch (1) action.

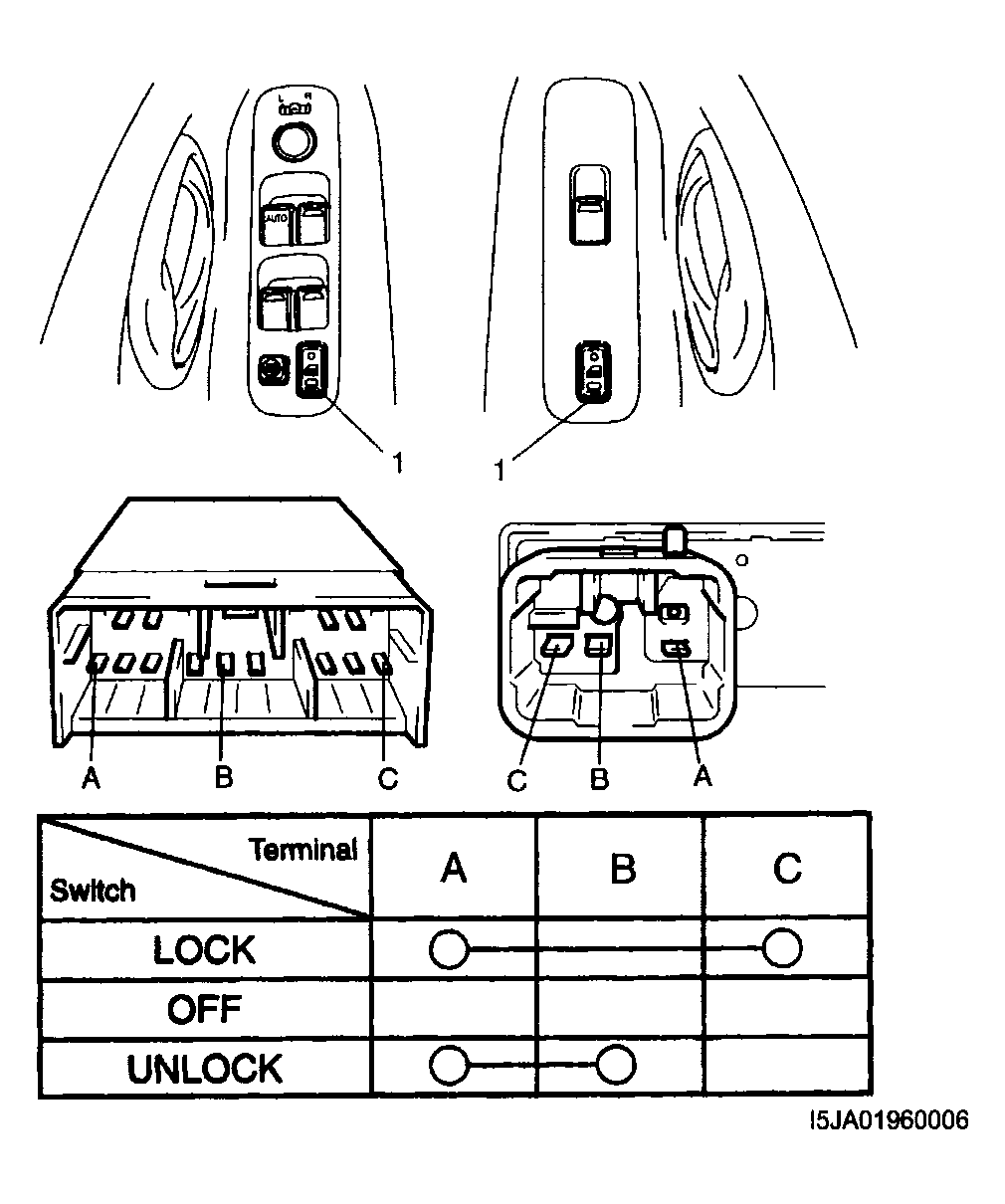

Fig 1: Inspecting Continuity At Terminals According To Door Lock Switch Action

Courtesy of SUZUKI OF AMERICA CORP.
