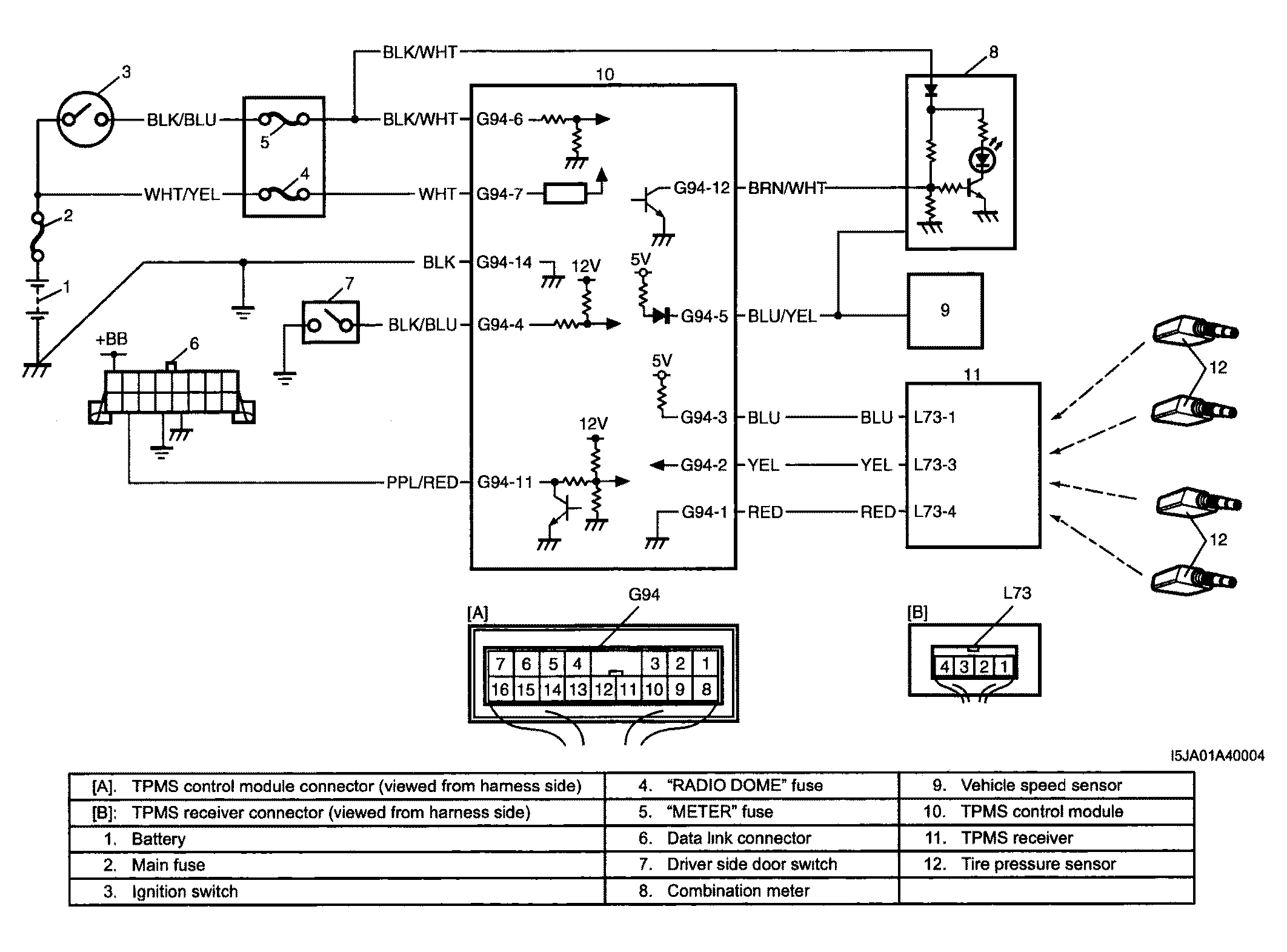

TPMS Wiring Circuit Diagram
TPMS CONTROL MODULE CONNECTOR G94 TERMINALS REFERENCE
| Terminal | Wire color | Circuit |
|---|---|---|
| G94-1 | RED | Ground for TPMS receiver |
| G94-2 | YEL | Tire pressure signal from tire pressure monitor valve |
| G94-3 | BLU | Power supply for TPMS receiver (5 V) |
| G94-4 | BLK/BLU | Driver side door switch |
| G94-5 | BLU/YEL | Vehicle speed sensor signal |
| G94-6 | BLK/WHT | Ignition switch |
| G94-7 | WHT | Power source of TPMS control module |
| G94-8 | - | - |
| G94-9 | - | - |
| G94-10 | - | - |
| G94-11 | PPL/RED | Serial communication line of data link connector |
| G94-12 | BRN/WHT | Low tire pressure warning light output |
| G94-13 | - | - |
| G94-14 | BLK | Ground for TPMS control module |
| G94-15 | - | - |
| G94-16 | - | - |
TPMS RECEIVER CONNECTOR L73 TERMINALS REFERENCE
| Terminal | Wire color | Circuit |
|---|---|---|
| L73-1 | BLU | Power supply for TPMS receiver (5 V) |
| L73-2 | - | - |
| L73-3 | YEL | Tire pressure signal from tire pressure monitor valve |
| L73-4 | RED | Ground for TPMS receiver |
