DTC Table
CAUTION:
Be sure to perform "TPMS CHECK " before starting diagnosis.

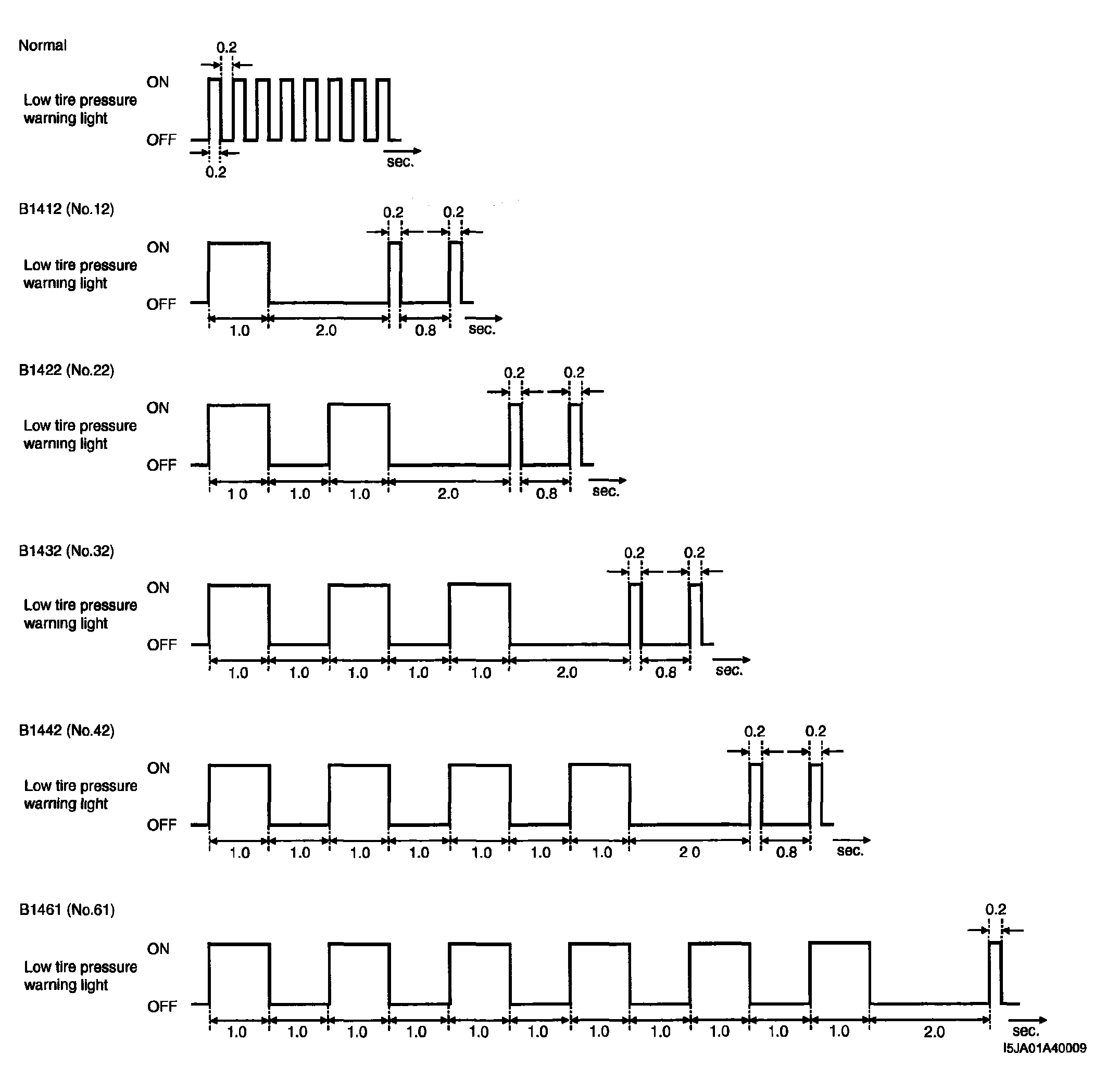

DTC TABLE CHART
| DTC (displayed on SUZUKI scan tool) | DTC (indicated by low tire pressure warning light flashing pattern) | Diagnostic items | Operation of low tire pressure warning light when DTC is detected |
|---|---|---|---|
| NO DTC | Flashing | No DTC is detected | - |
| B1411 | 11 | Tire pressure low (tire pressure sensor No. 1) | Light up |
| B1412 | 12 | Tire pressure low (tire pressure sensor No.2) | Light up |
| 13 | Tire pressure low (tire pressure sensor No.3) | Light up | |
| B1414 | 14 | Tire pressure low (tire pressure sensor No.4) | Light up |
| B1421 | 21 | No data from tire pressure sensor No.1 | Flashing |
| B1422 | 22 | No data from tire pressure sensor No.2 | Flashing |
| B1423 | 23 | No data from tire pressure sensor No.3 | Flashing |
| B1424 | 24 | No data from tire pressure sensor No.4 | Flashing |
| B1431 | 31 | Invalid pressure signal from tire pressure sensor No.1 | Flashing |
| B1432 | 32 | Invalid pressure signal from tire pressure sensor No.2 | Flashing |
| B1433 | 33 | Invalid pressure signal from tire pressure sensor No.3 | Flashing |
| B1434 | 34 | Invalid pressure signal from tire pressure sensor No.4 | Flashing |
| B1441 | 41 | Invalid status (tire pressure sensor No.1) | Flashing |
| B1442 | 42 | Invalid status (tire pressure sensor No.2) | Flashing |
| B1443 | 43 | Invalid status (tire pressure sensor No.3) | Flashing |
| B1444 | 44 | Invalid status (tire pressure sensor No.4) | Flashing |
| B1461 | 61 | VSS signal inconsistency | Flashing |
NOTE:
Each tire pressure sensor is numbered and that number is assigned in the order as its ID code is registered in TPMS control module. It does not indicate the tire position (LF, RF, LR and RR). Check what number of the tire pressure sensor is assigned to which tire, referring to "HOW TO IDENTIFY TIRE PRESSURE SENSOR NUMBER ".
