Front Fog Light Relay Inspection

Disconnect negative (-) cable from battery.
Remove front fog light relay (1) from fuse / relay box (2).

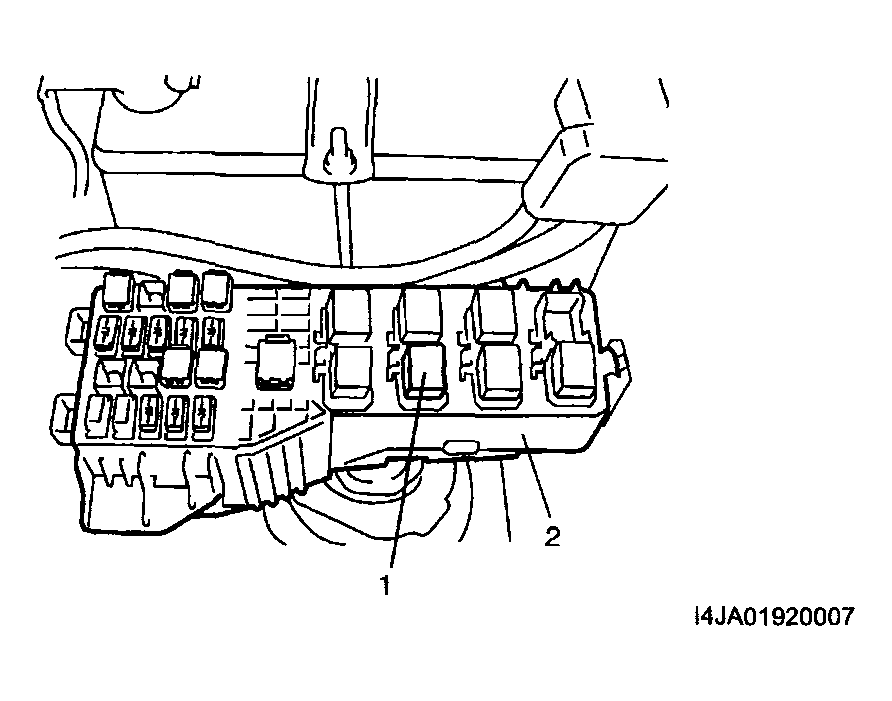

Fig 1: Removing Front Fog Light Relay (1) From Fuse / Relay Box (2)
Courtesy of SUZUKI OF AMERICA CORP.
Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
Check that there is continuity between terminals "c" and "d" when a 12 V battery is connected to terminals "a" and "b".
If malfunction is found, replace it with a new one.

Fig 2: Identifying Relay Terminals
Courtesy of SUZUKI OF AMERICA CORP.
