Transmission Shift Control Lever Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

If control lever locating bolts (1) are replaced or retightened, torque them as specified below. Replacing of control lever locating bolts (1) requires thread lock cement.
"B": Thread lock cement 99000-32020

Tightening torque

Transmission control lever locating bolt (a): 17 N.m (1.7 kg-m, 12.5 lb-ft)
Apply grease to pivot portions and seat, then install shift control lever.
"A": Grease 99000-25010

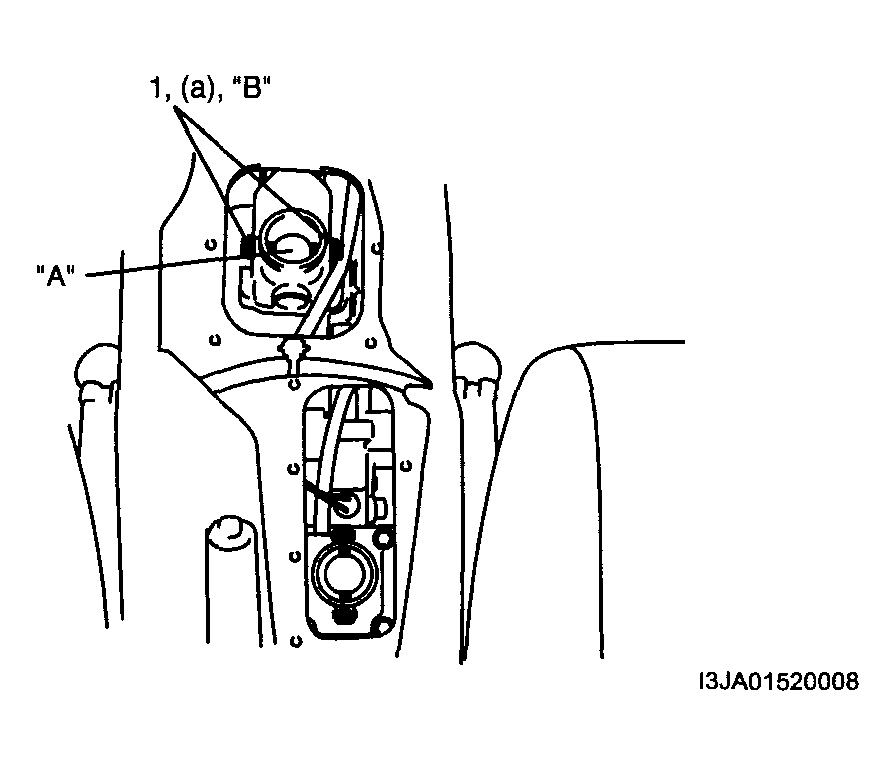

Fig 1: Installing Shift Control Lever
Courtesy of SUZUKI OF AMERICA CORP.
Set shift control lever (2) to shift lever case.
With gear shift control case cover (1) pushed down by hand, turn gear shift control case cover (1) to clockwise.

Fig 2: Setting Shift Control Lever To Shift Lever Case
Courtesy of SUZUKI OF AMERICA CORP.
Install boot No. 1 (1) from inside of cabin and clamp it with a new clamp (2) securely.

Fig 3: Installing Boot No. 1 From Inside Of Cabin
Courtesy of SUZUKI OF AMERICA CORP.
Install boot No. 2 (2) with boot cover (3) and console box bracket (1).
Tightening torque

Control lever boot cover bolt (a): 15 N.m (1.5 kg-m, 11.0 lb-ft)

Fig 4: Installing Boot No. 2 With Boot Cover And Console Box Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Install console box.
After fitting boot No. 3 (1) to covers (2), install covers (2) to center console boxes.

Fig 5: Installing Covers To Center Console Boxes

Courtesy of SUZUKI OF AMERICA CORP.
