XL-7 EX, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine General Information And Diagnosis
>>
H27 Engine
>>
Schematic and Routing Diagram
>>
Engine and Emission Control System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine and Emission Control System Diagram

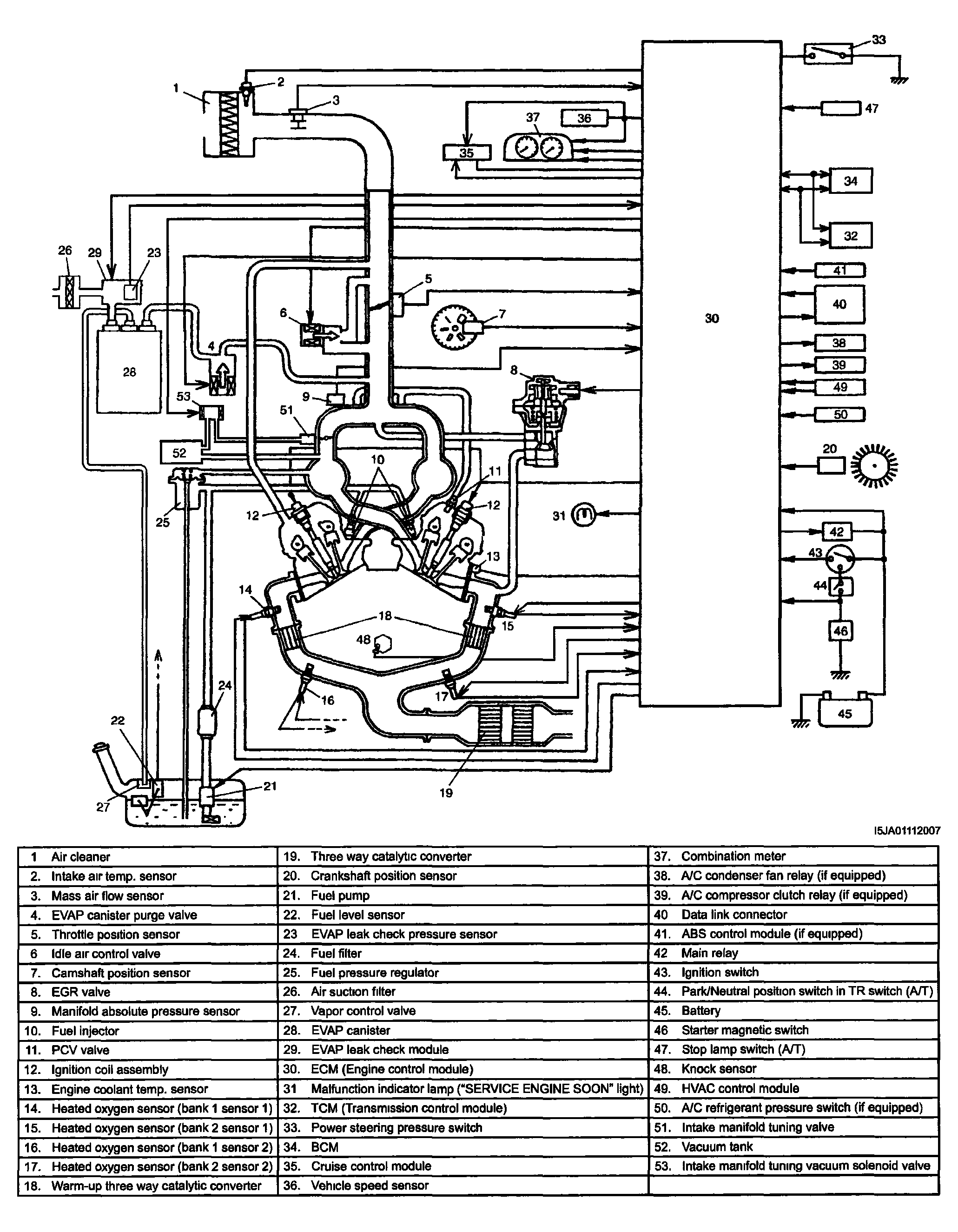

Fig 1: Engine And Emission Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
