DTC P0107 / P0108: Manifold Absolute Pressure Circuit Low Input / High Input: Wiring Diagram

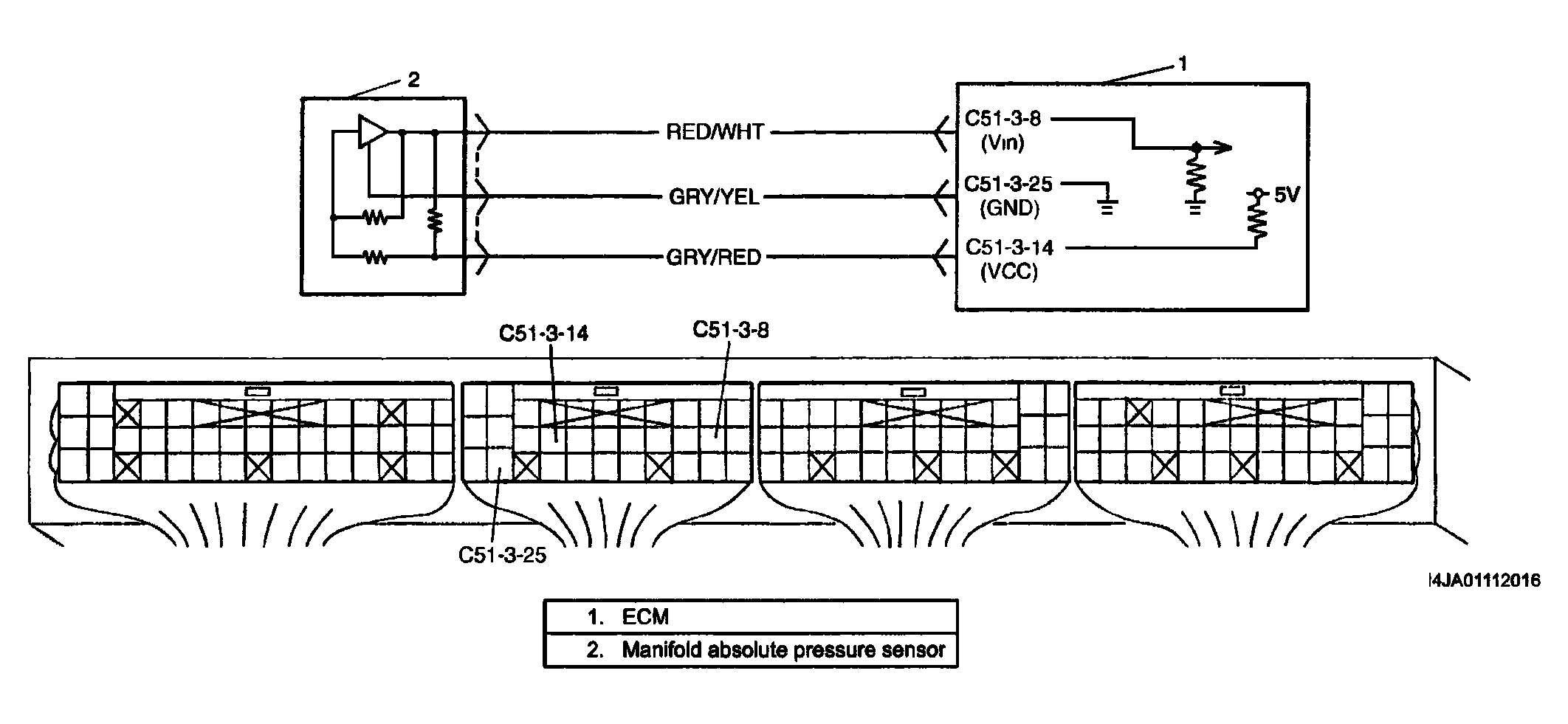

Fig 1: Manifold Absolute Pressure Circuit Low Input / High Input - Wiring Diagram
G04097484Courtesy of SUZUKI OF AMERICA CORP.
