Front Door Window Regulator Removal and Installation: Installation
Reverse removal procedure to install window regulator noting the following point.

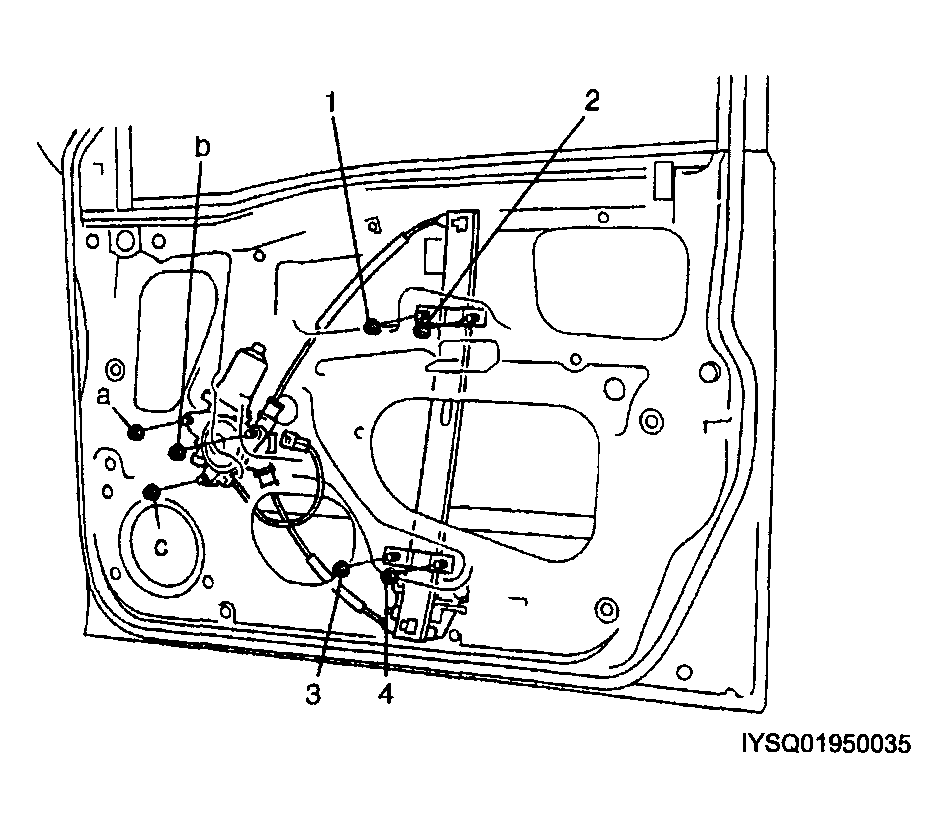

- Tighten bolts and nuts according to the order (a, b, c / 1, 2, 3, 4) shown in the figure.
- When installing glass, check that the top part of the glass contacts the glass run evenly and that the glass moves up and down smoothly.
If the glass is tilted with respect to the glass run, make a fine adjustment with the screws.
- Install door window regulator handle (if equipped) so that it has an angle as shown in the figure when glass is fully closed.
