Scan Tool Data

Scan Tool Data

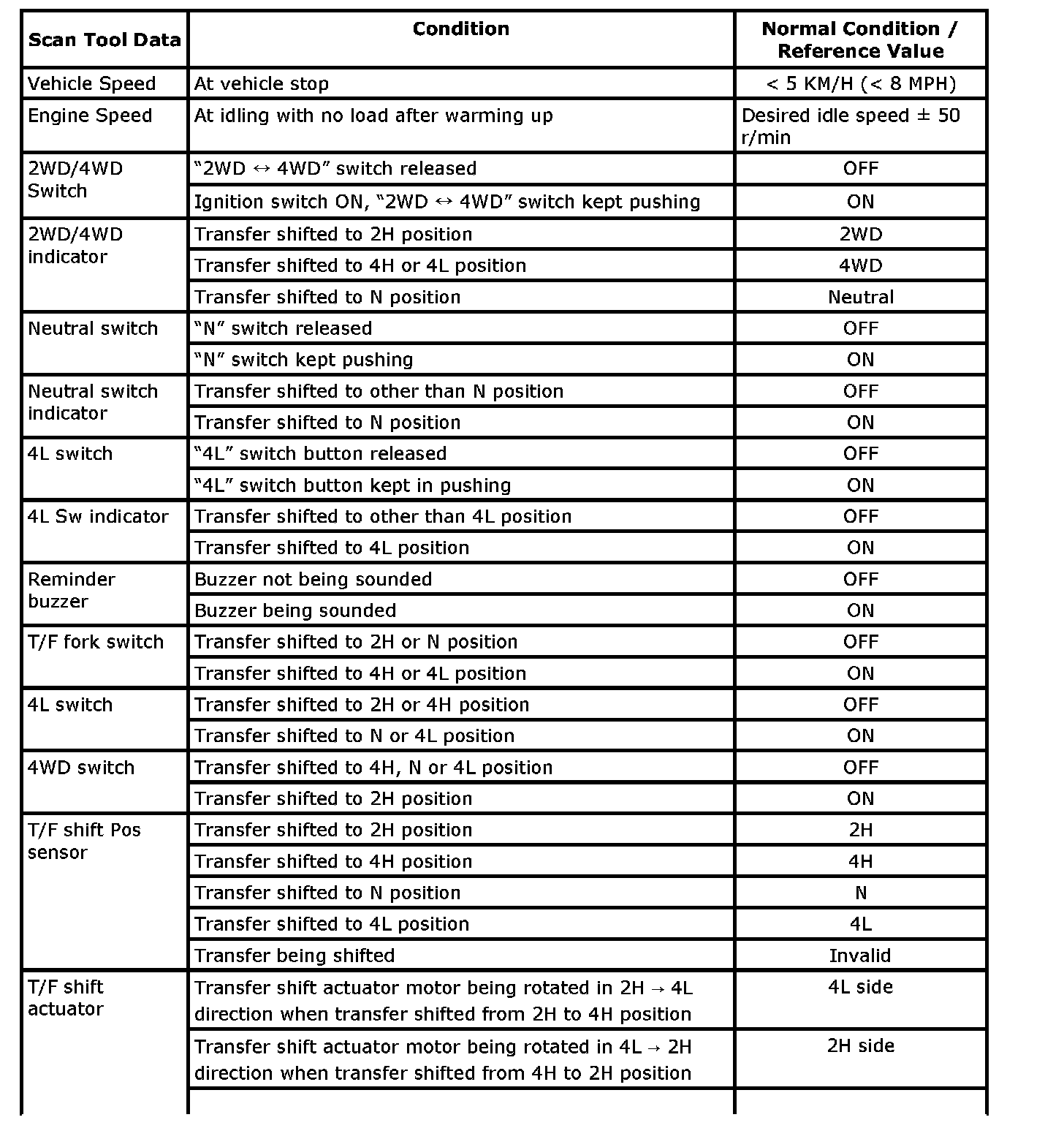

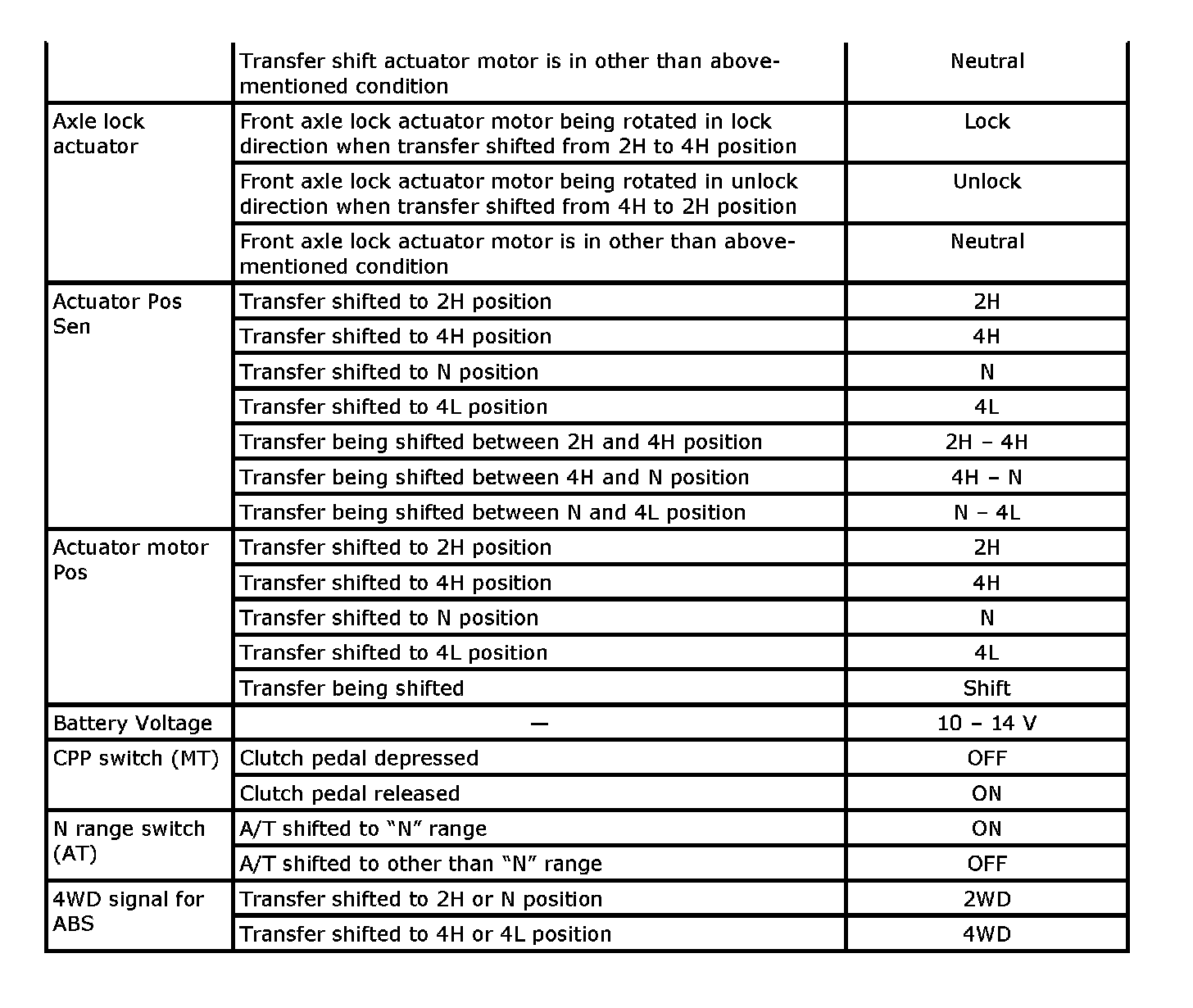

Reference: Scan Tool Data Definitions: Motor-Shift Type

As the data values given in the following table are standard values estimated on the basis of values obtained from the normally operating vehicles by using a scan tool, use them as reference values. Even when the vehicle is in good condition, there may be cases where the checked value does not fall within each specified data range. Therefore, judgment as abnormal should not be made by checking with these data alone. Also, condition in the following table that can be checked by the scan tool are those detected by 4WD control module and output from 4WD control module as commands and there may be cases where the transfer or actuator is not operating (in the condition) as indicated by the scan tool.








NOTE: The following scan tool data related to 4WD control system can be checked only by communicating with 4WD control module.
