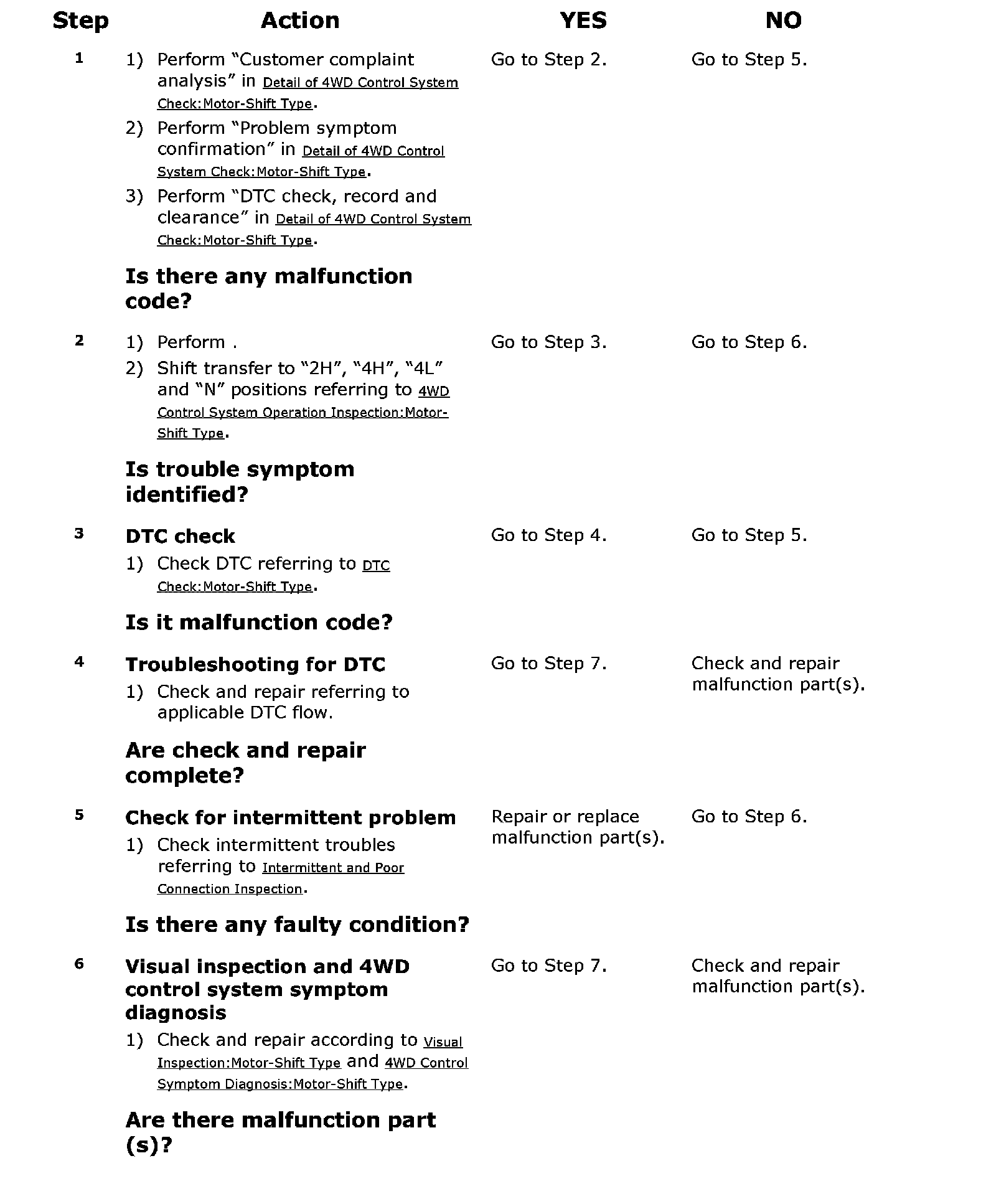

4WD Control System Check

4WD Control System Check








For the details of each step, refer to Detail of 4WD Control System Check: Motor-Shift Type.
