C1221

DTC C1221 (No. 21) Transfer Shift Actuator Motor Position Sensor Circuit Open

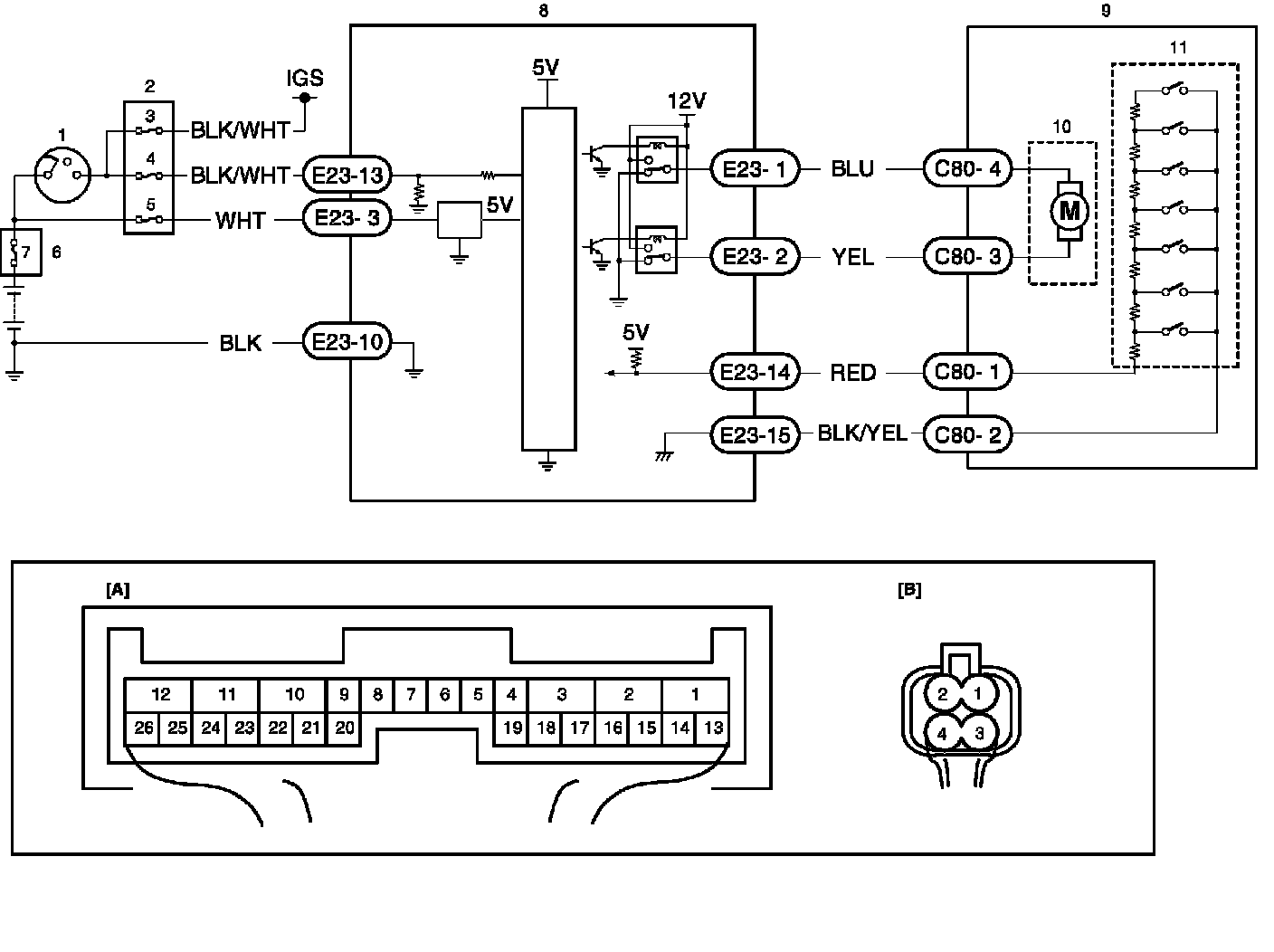

Wiring Diagram





DTC Detecting Condition and Trouble Area

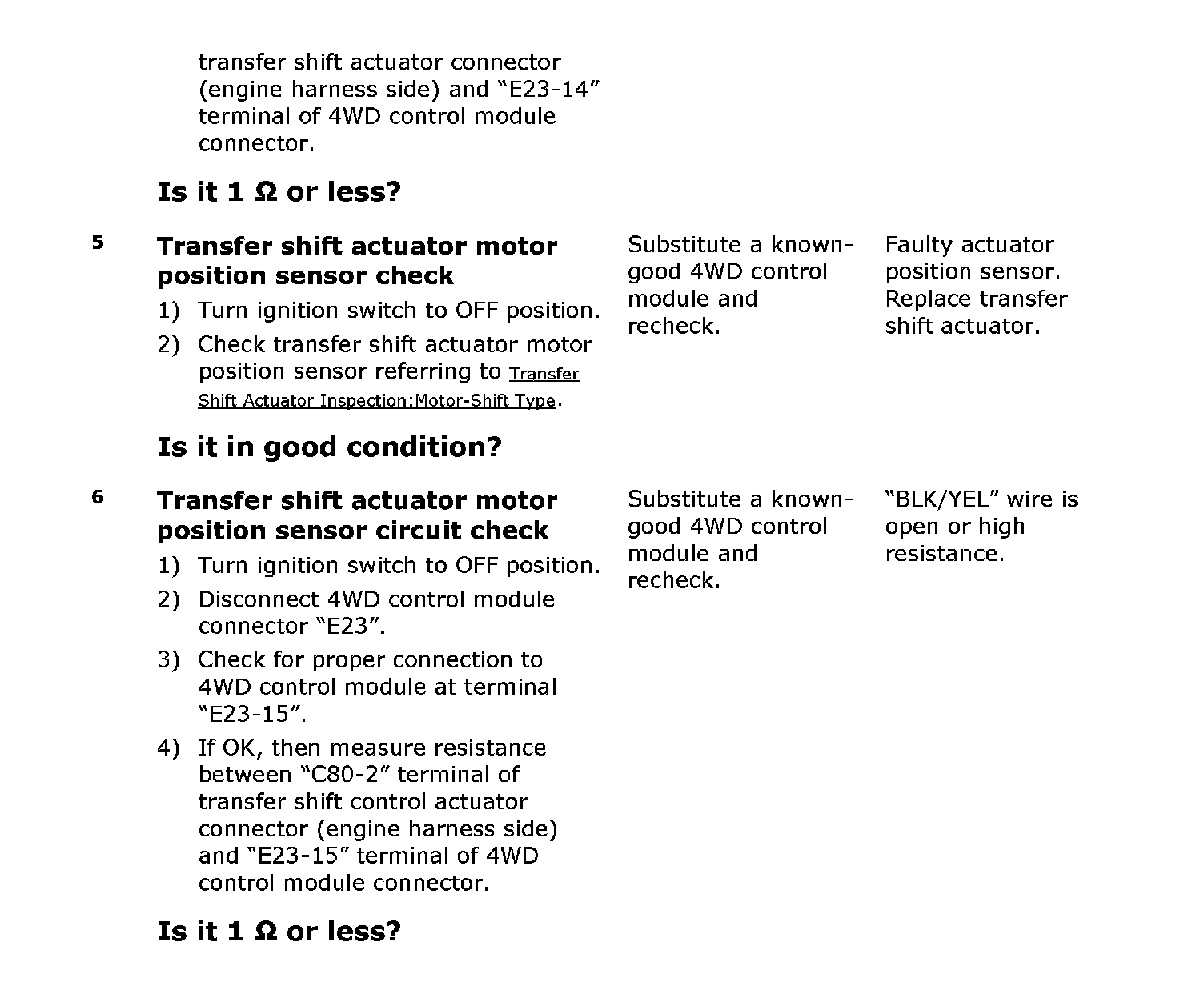

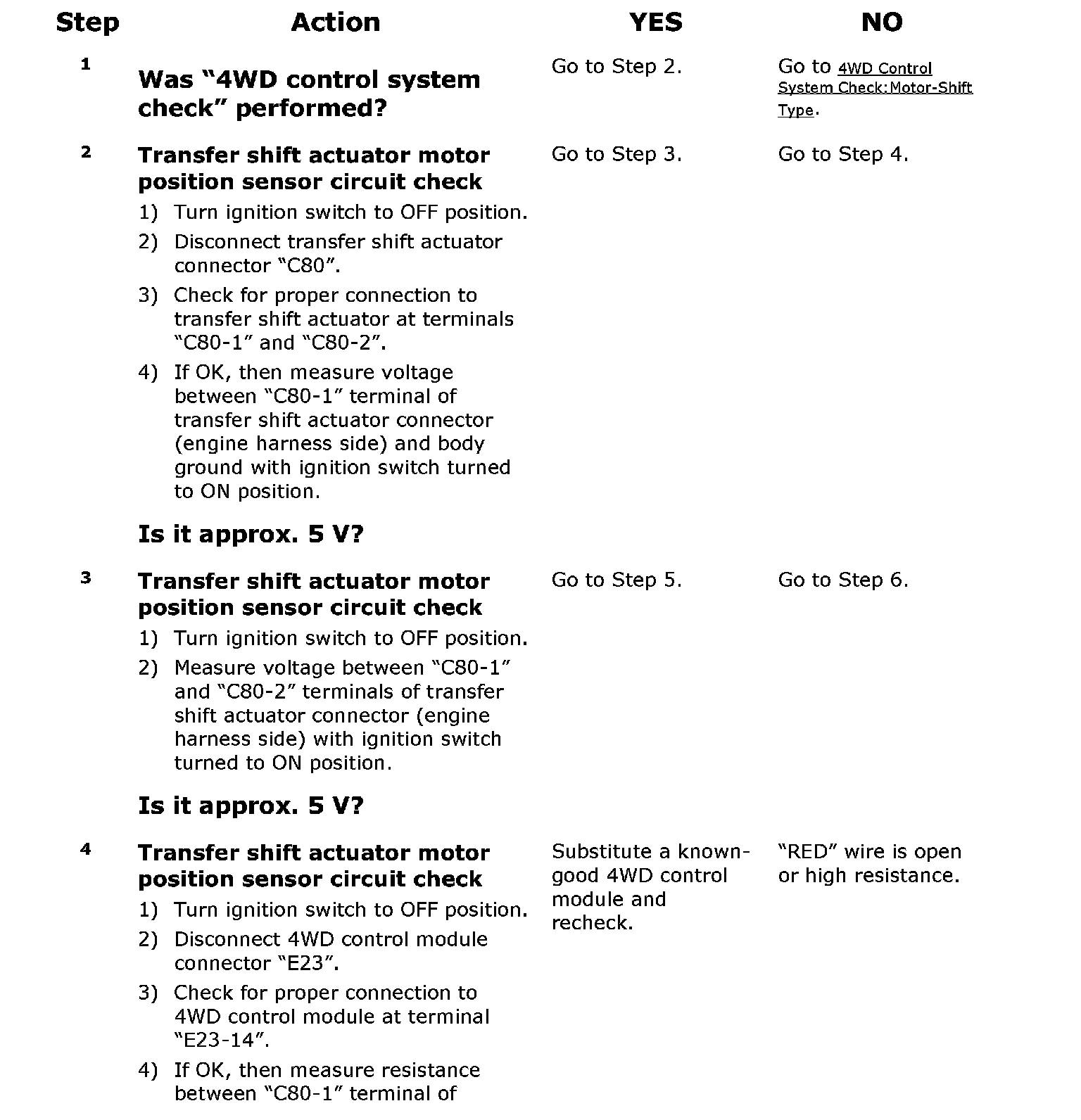

DTC Troubleshooting
