Transmission Mount: Service and Repair

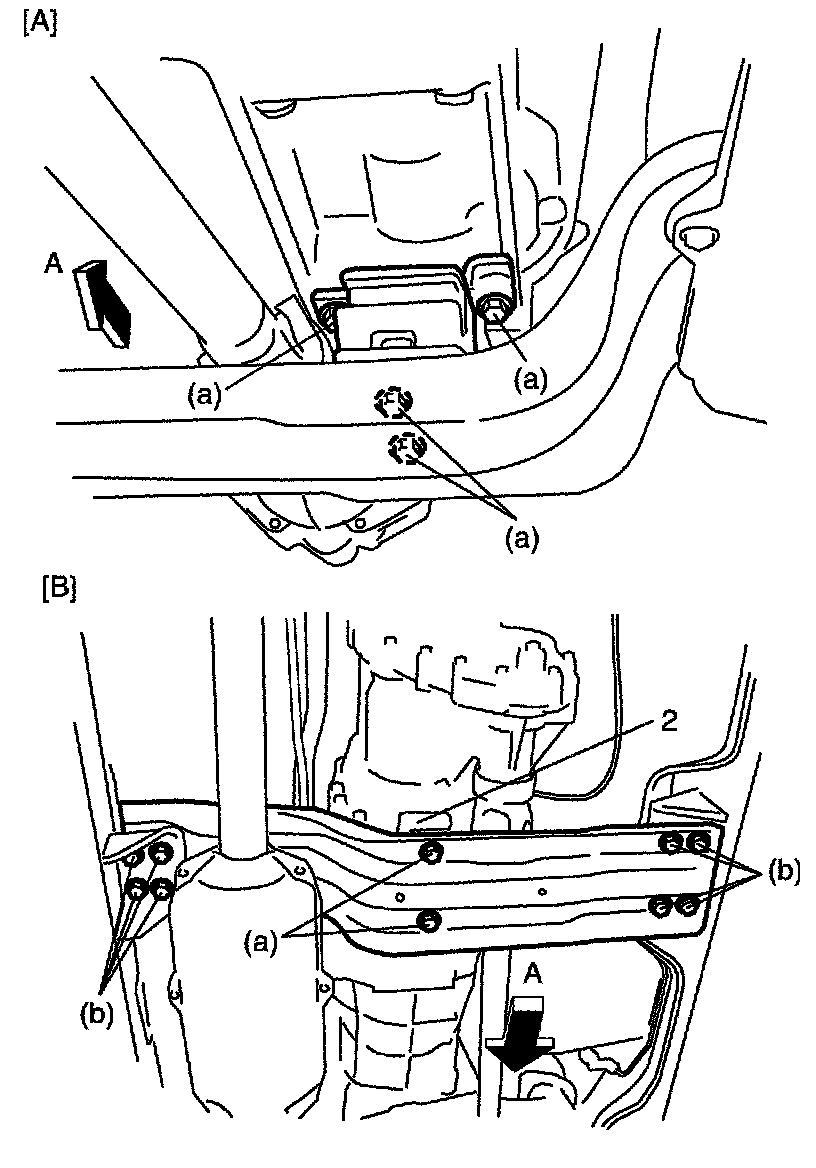

Engine Rear Mounting Replacement








When replacement of mounting parts are necessary, torque bolts and nut as specified below.
Tightening torque
Engine rear mounting bolts a: 55 Nm (5.5 kg-m, 40.0 ft. lbs.)
Engine rear mounting member bolts b: 55 Nm (5.5 kg-m, 40.0 ft. lbs.)
