Manual Transmission/Transaxle: Testing and Inspection

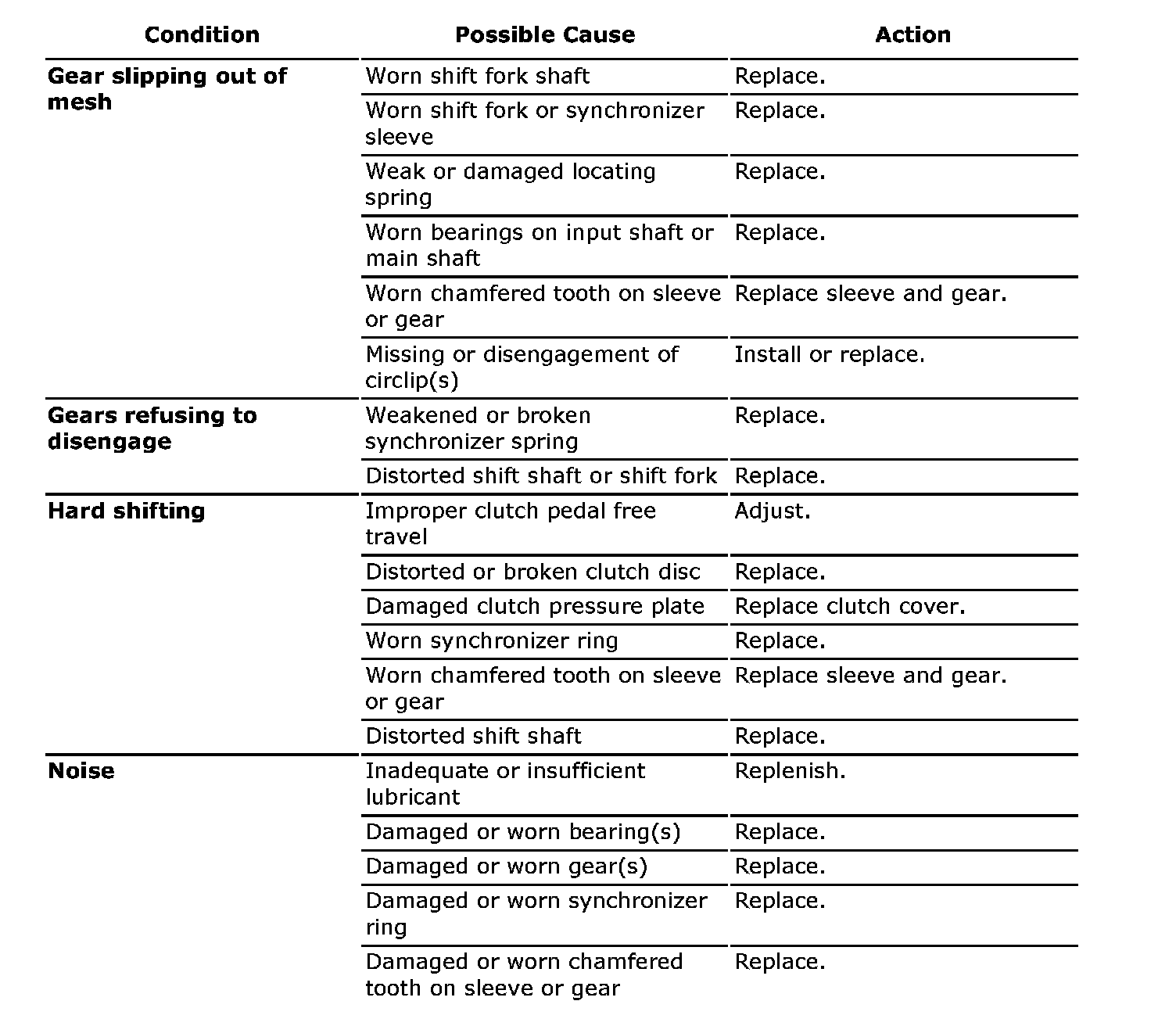

Manual Transmission Symptom Diagnosis





Gear slipping out of mesh





Gears refusing to disengage





Hard shifting





Noise
