Pinout Values and Diagnostic Parameters

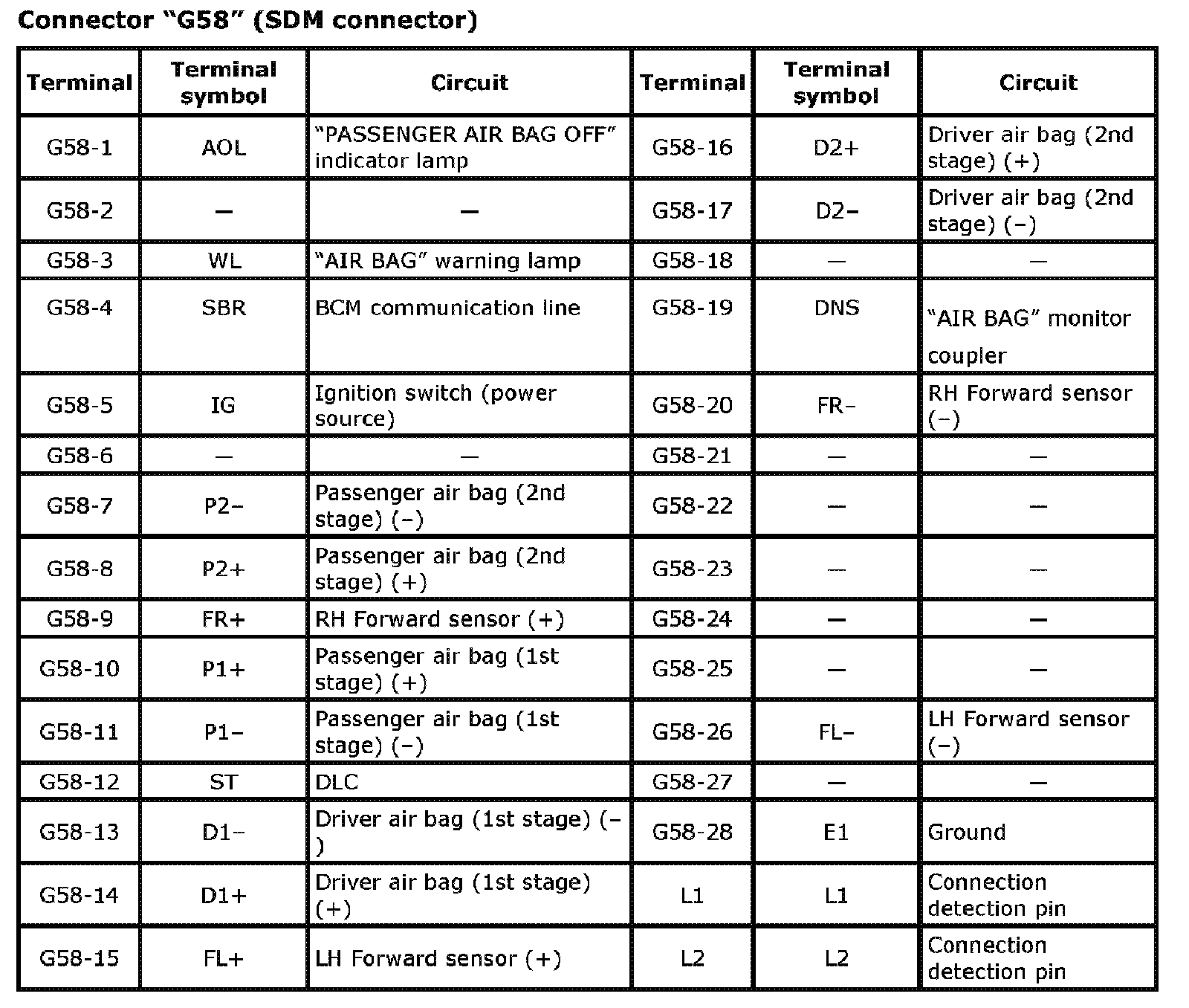

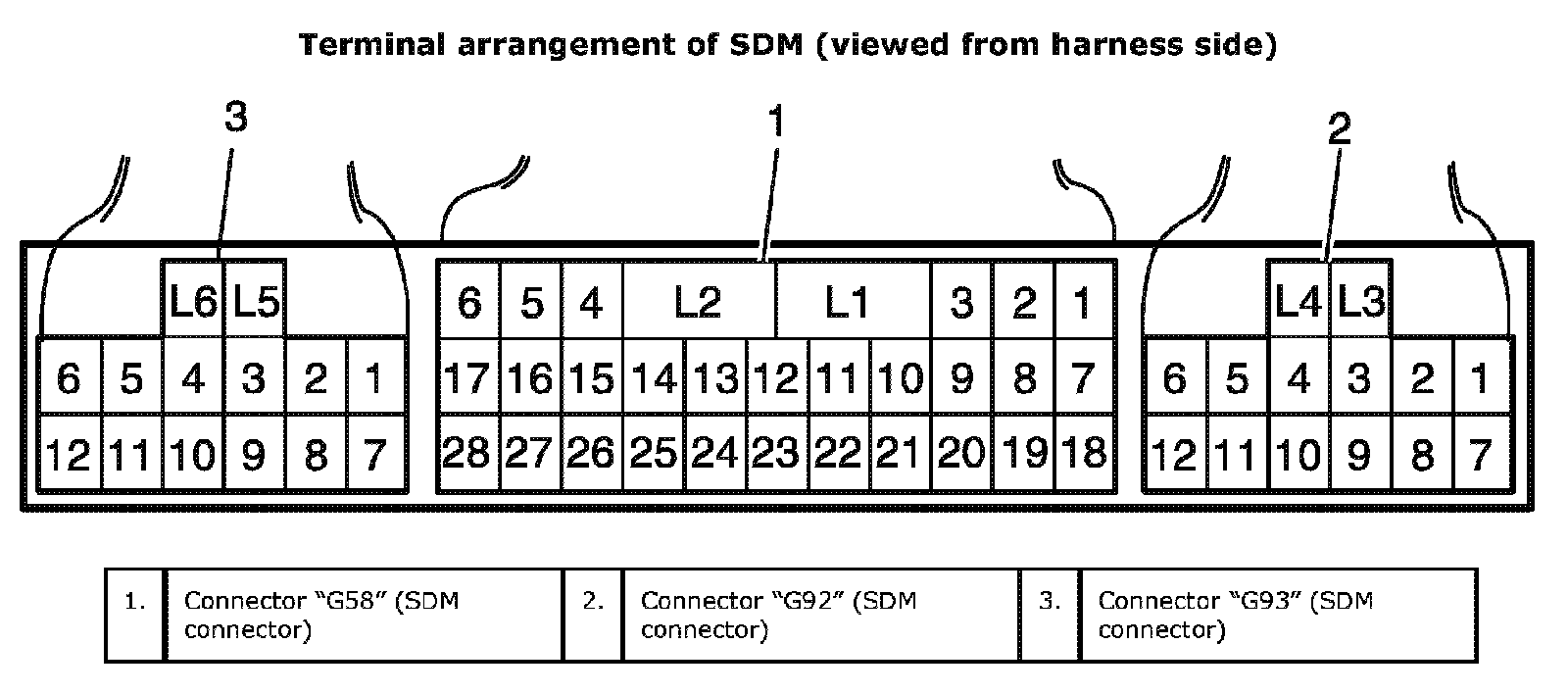

G58-1 - L2:
G92-1 - L4:

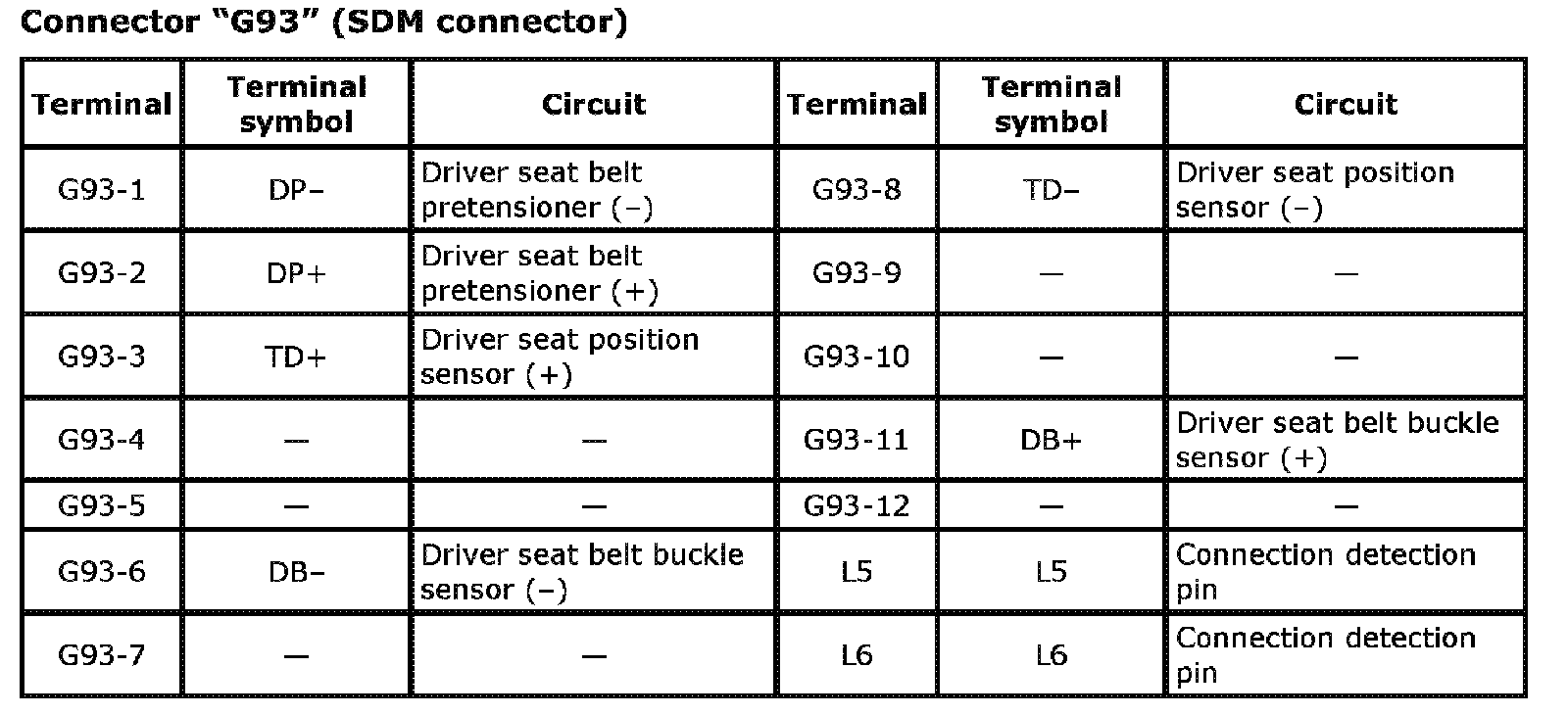

G93-1 - L6:

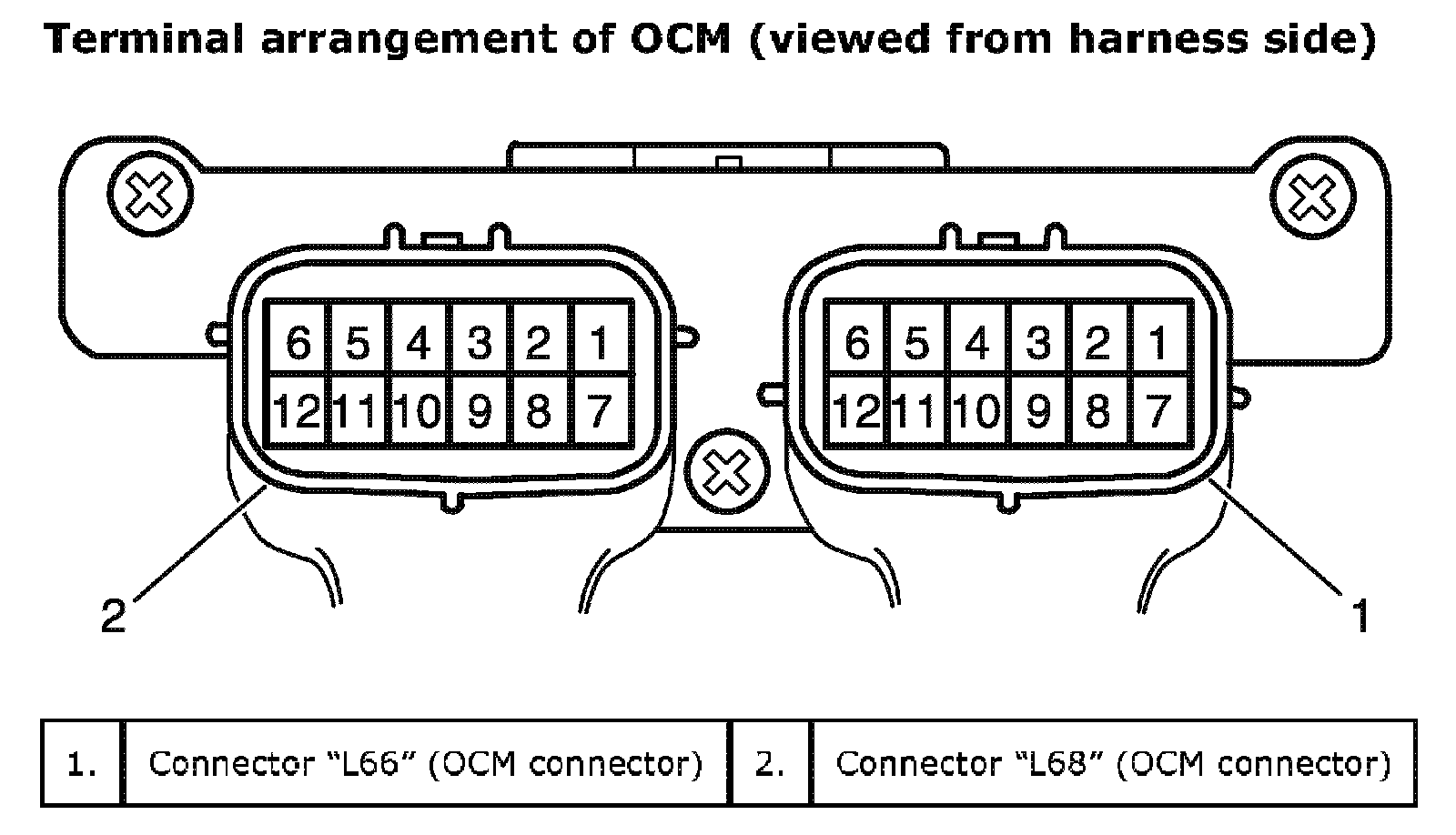

L66-1 - L66-12:

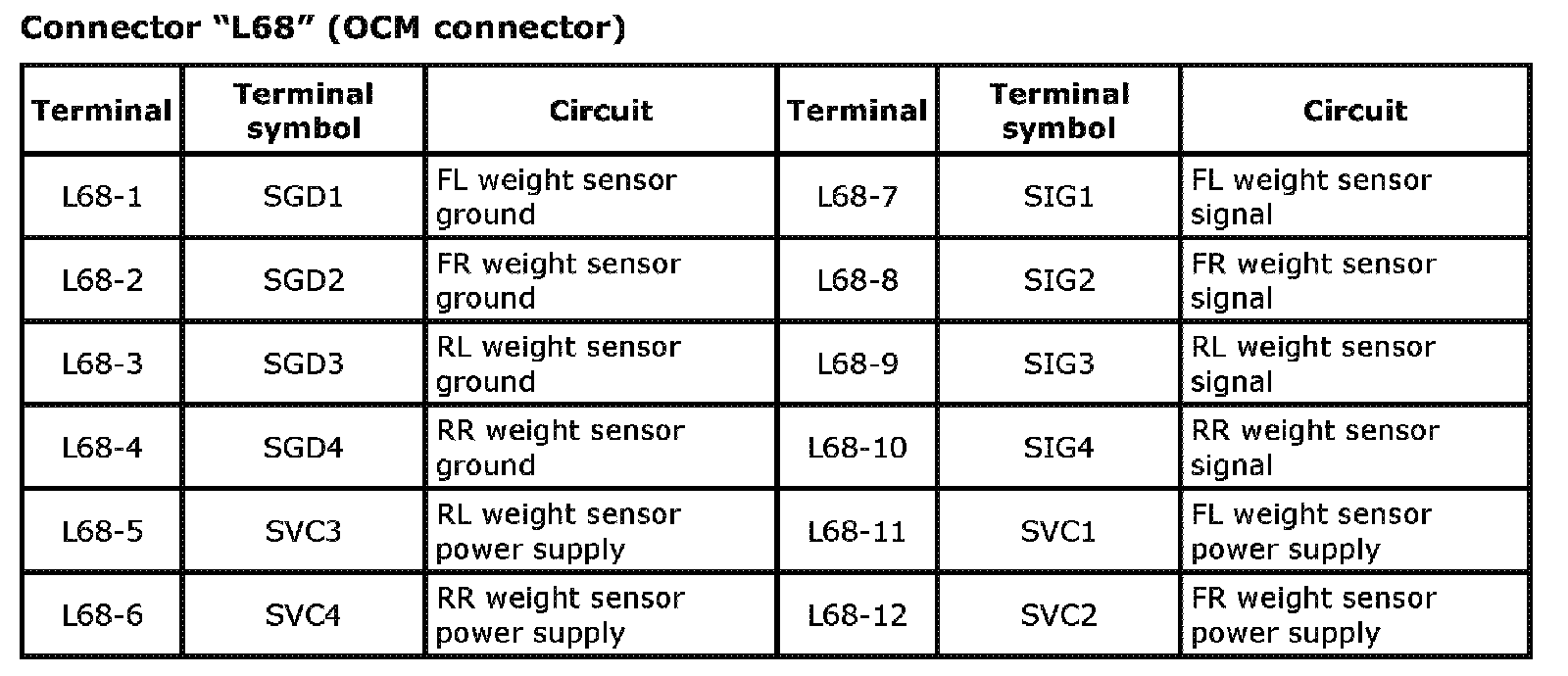

L68-1 - L68-12:
