Fog/Driving Lamp Relay: Testing and Inspection

FRONT FOG LIGHT RELAY INSPECTION

1. Disconnect negative (-) cable from battery.

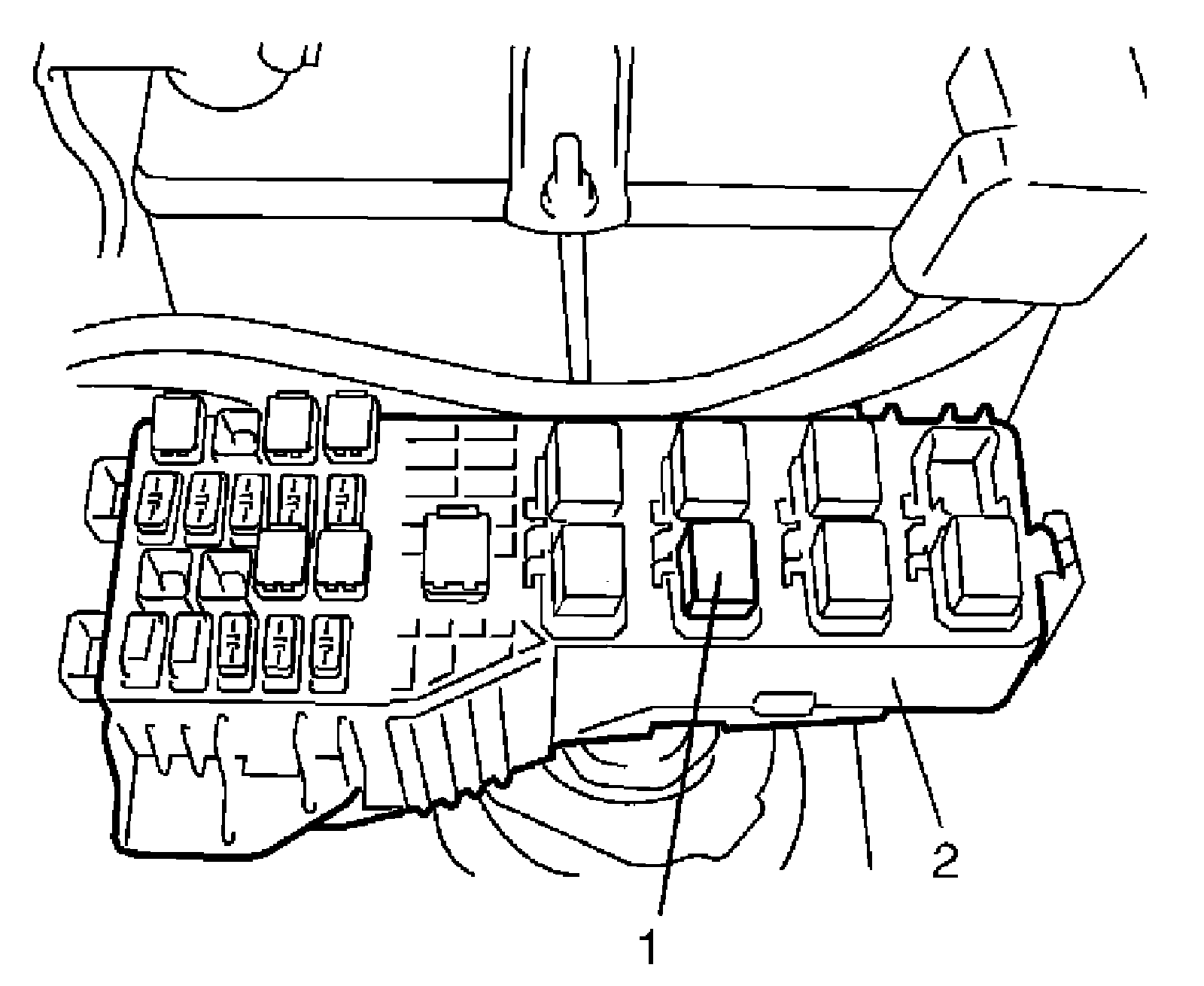

2. Remove front fog light relay (1) from fuse / relay box (2).
3. Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.




4. Check that there is continuity between terminals "c" and "d" when a 12 V battery is connected to terminals "a" and "b". If malfunction is found, replace it with a new one.
