A/T Control System Circuit Diagram (2.5 L)

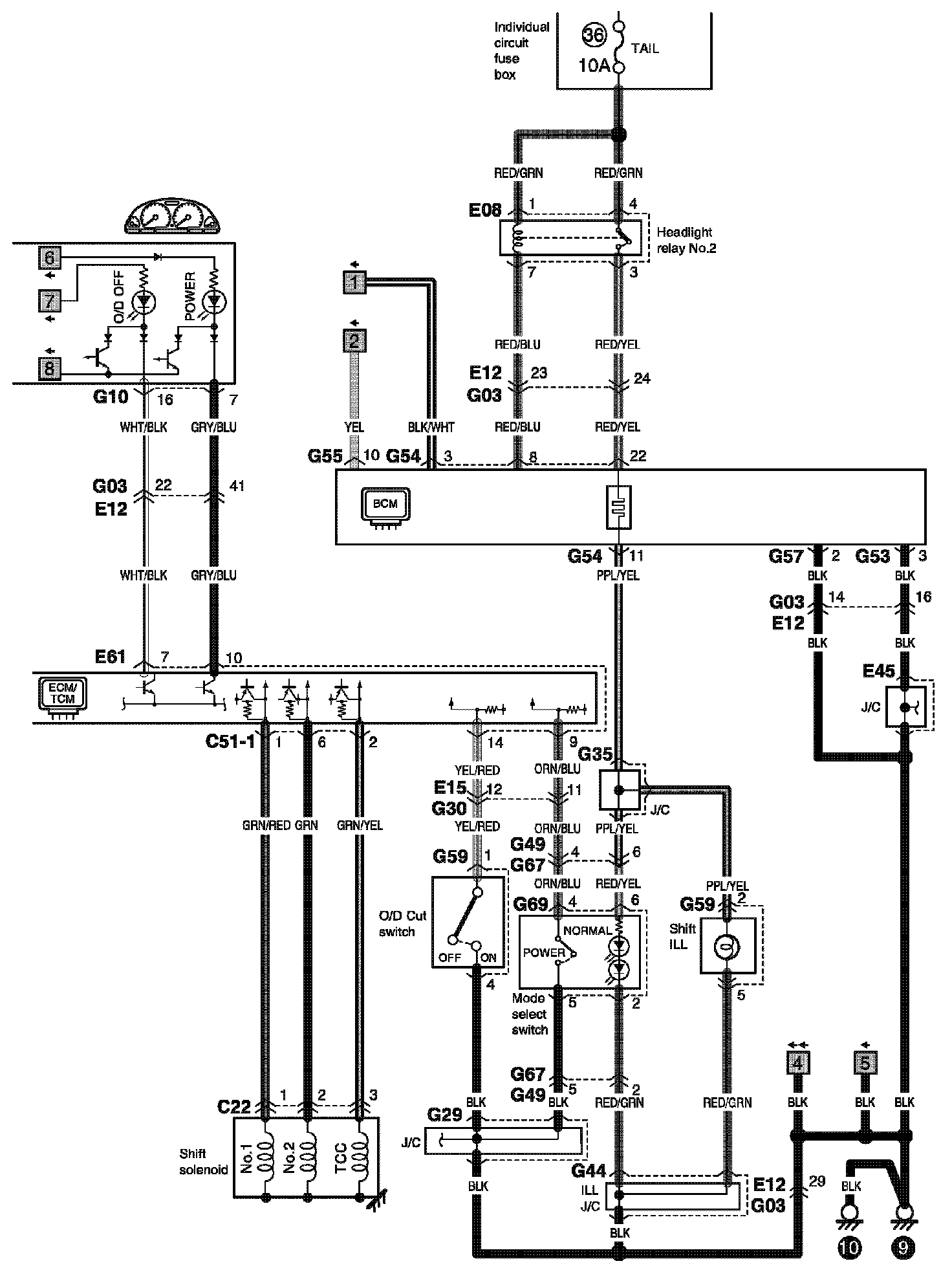

A/T Control System Circuit Diagram (2.5 L) 1:

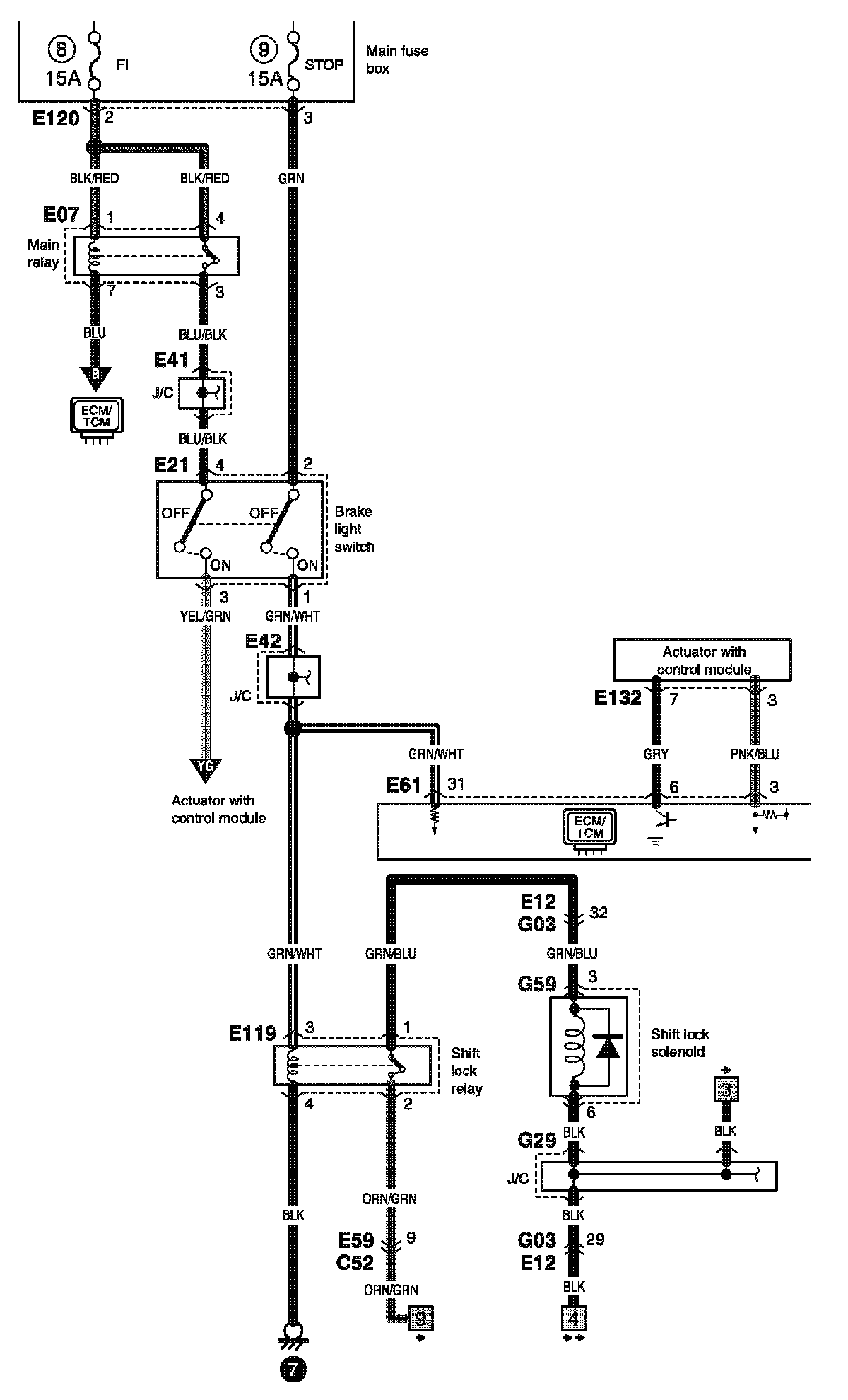

A/T Control System Circuit Diagram (2.5 L) 2:

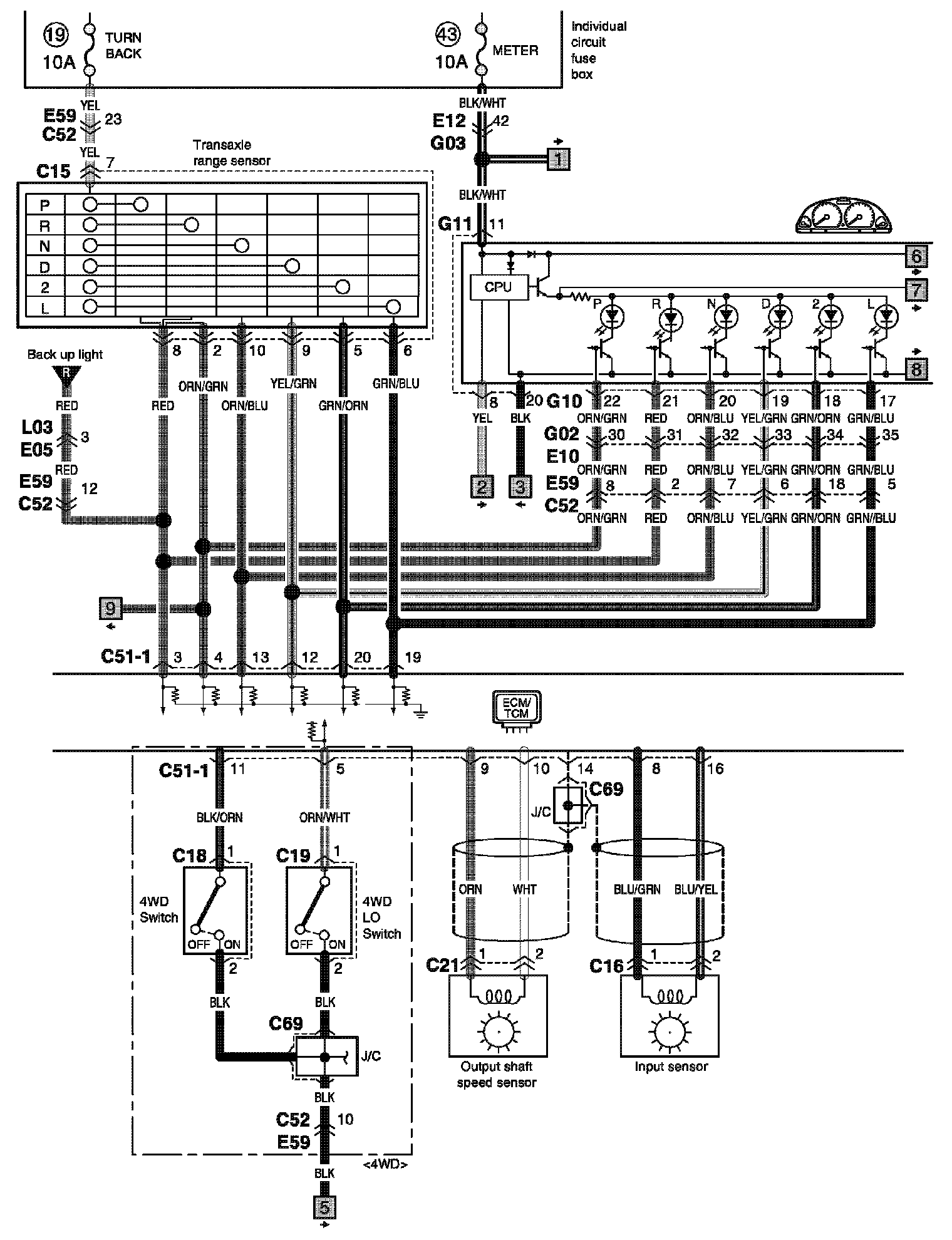

A/T Control System Circuit Diagram (2.5 L) 3:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
