Front Seat Removal and Installation For H25 Engine Model

Front Seat Removal and Installation For H25 Engine Model

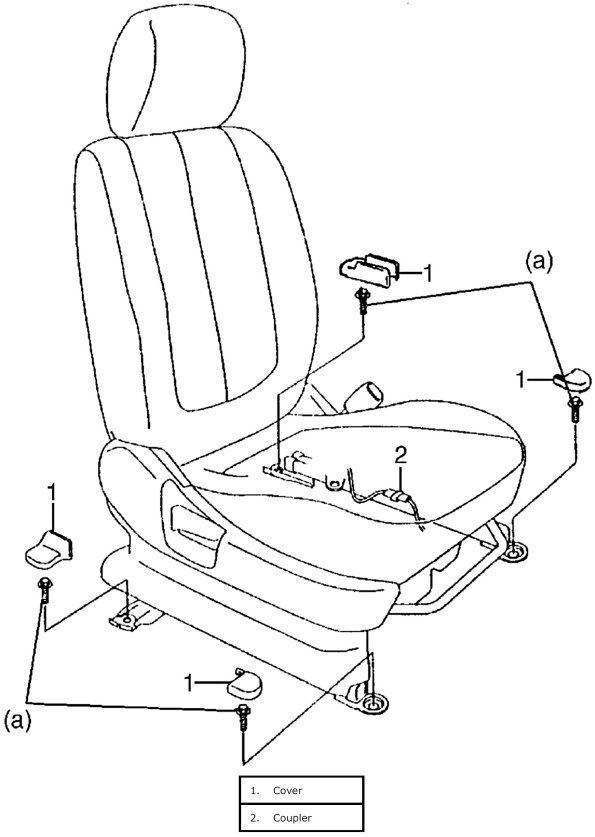

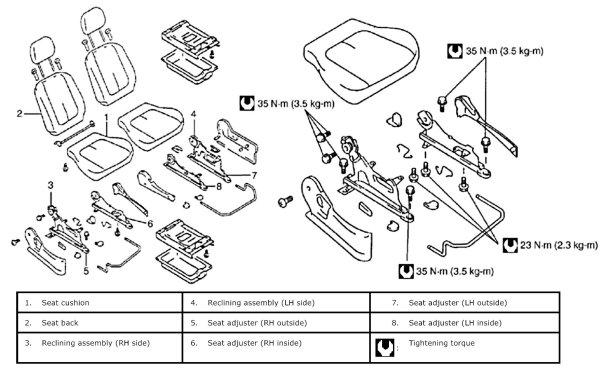

Front Seat Components For H25 Engine Model:

Removal

1. Disconnect lead wire(s) at coupler (if equipped).
2. Remove four mounting bolts fixing front seat to seat rail to remove front seat.
3. Disassemble and repair seat as necessary.

Installation

Reverse removal procedure to install front seat, noting the following points.
^ Torque to specifications as shown in the figure.

Tightening torque
Front seat mounting bolt (a): 35 Nm (3.5 kg-m, 25.5 ft. lbs.)
