Power Door Lock Switch: Testing and Inspection

Manual Door Lock Switch Inspection

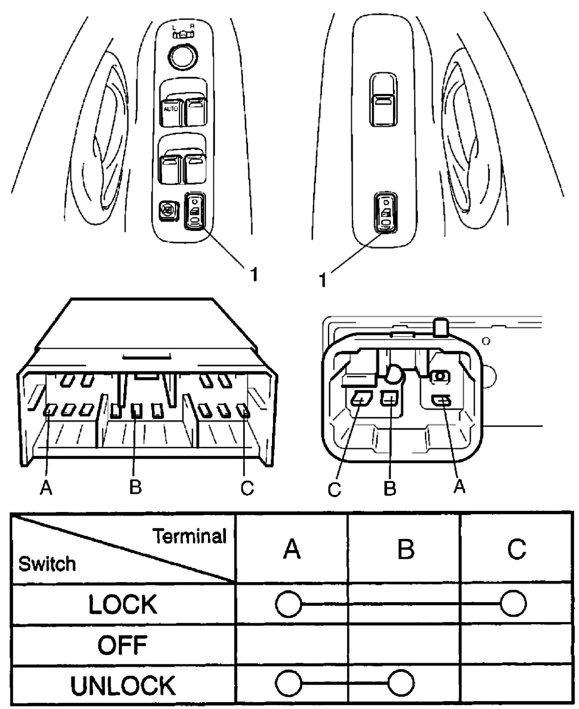

Inspect continuity at terminals according to the door lock switch (1) action.
