P0463

DTC P0463: Fuel Level Sensor Circuit High

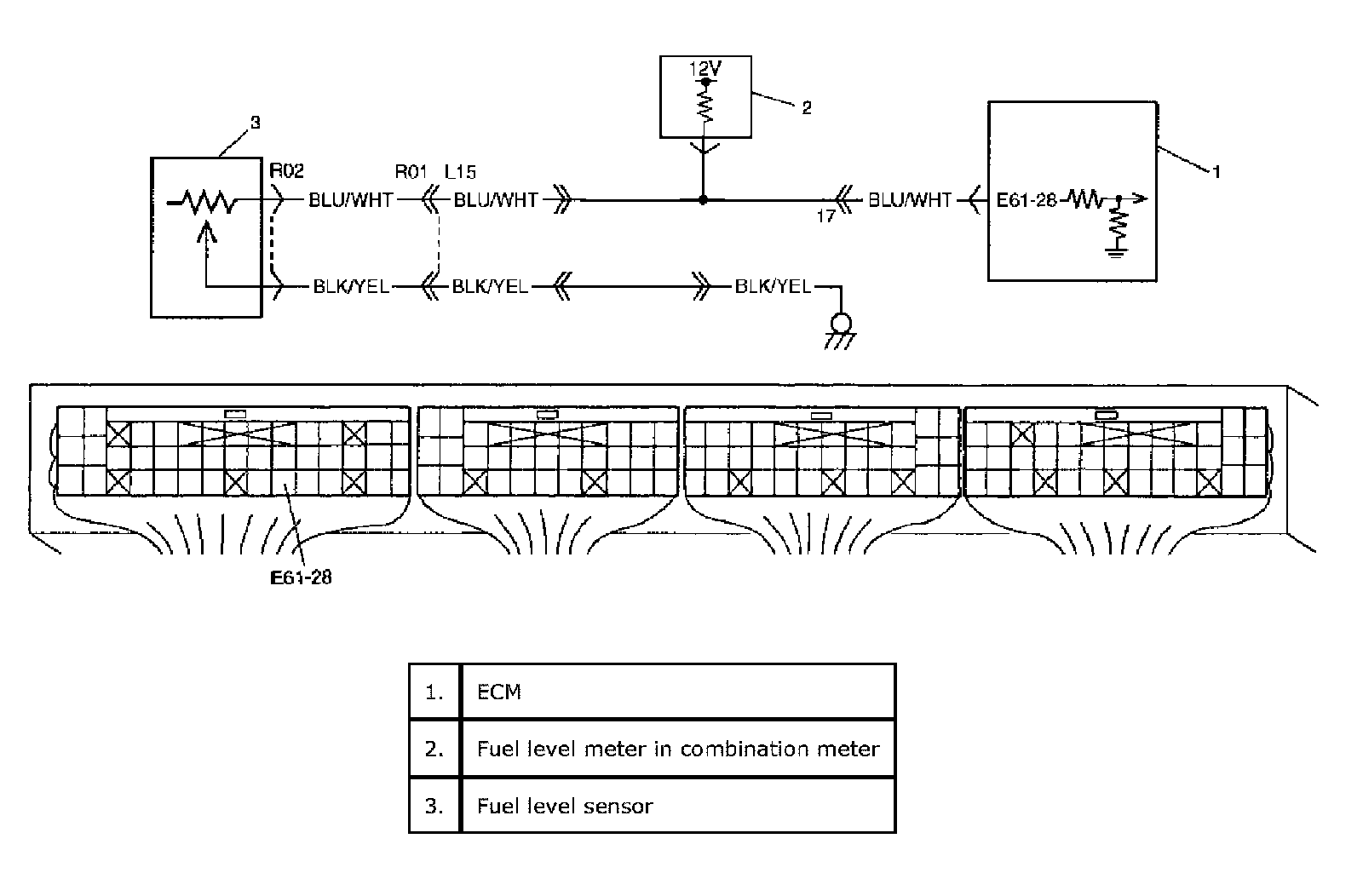

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch turned OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine for 1 min.
3. Check pending DTC by using scan tool.

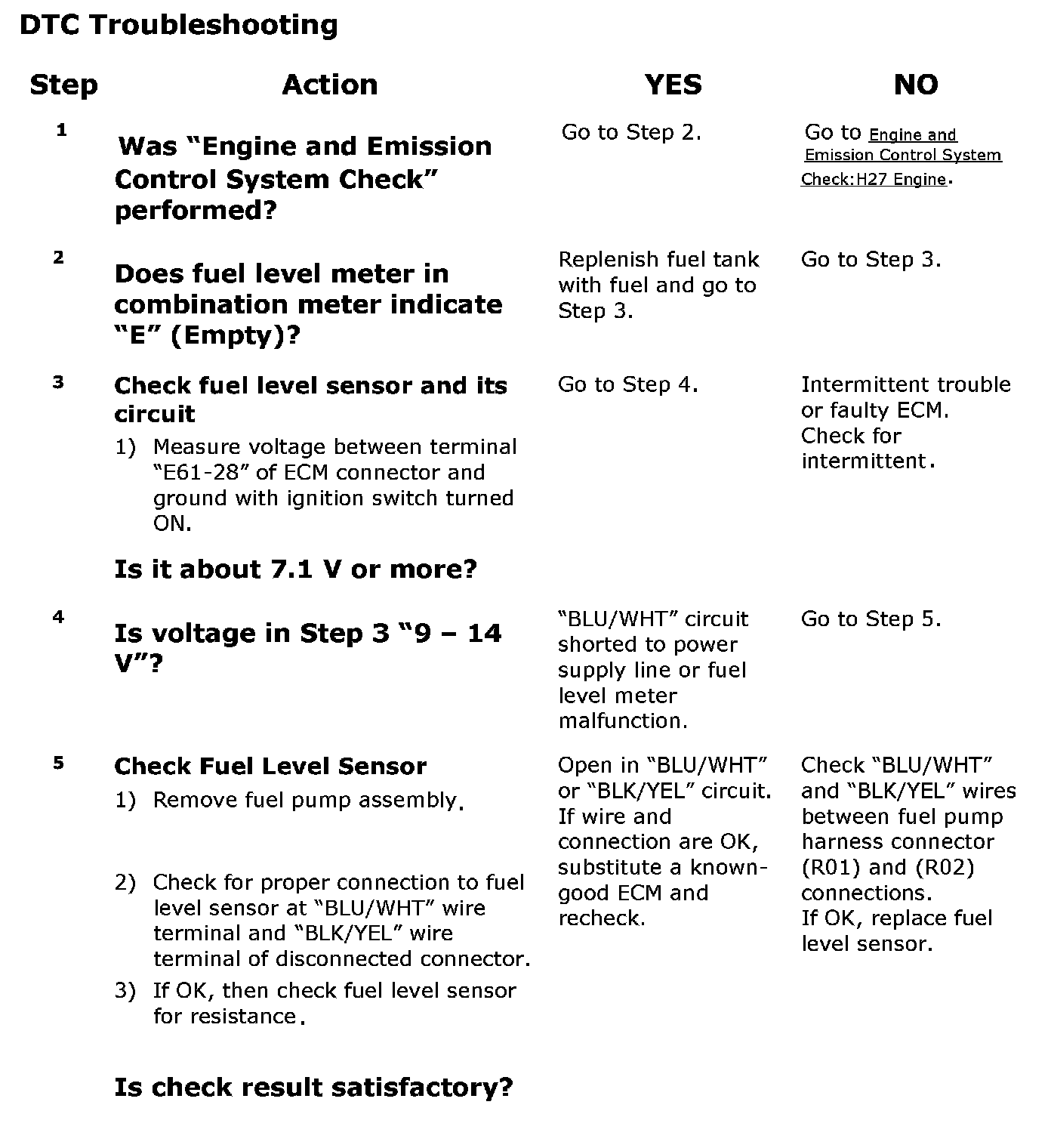

Step 1 - 5:

DTC Troubleshooting
